SA222-R-Q

Built for performance across all terrains, Yanmar compact tractors deliver unmatched comfort, manoeuvrability, and rugged dependability for industries that demand more.

Model Overview

Power-Packed Performance in a Compact Size

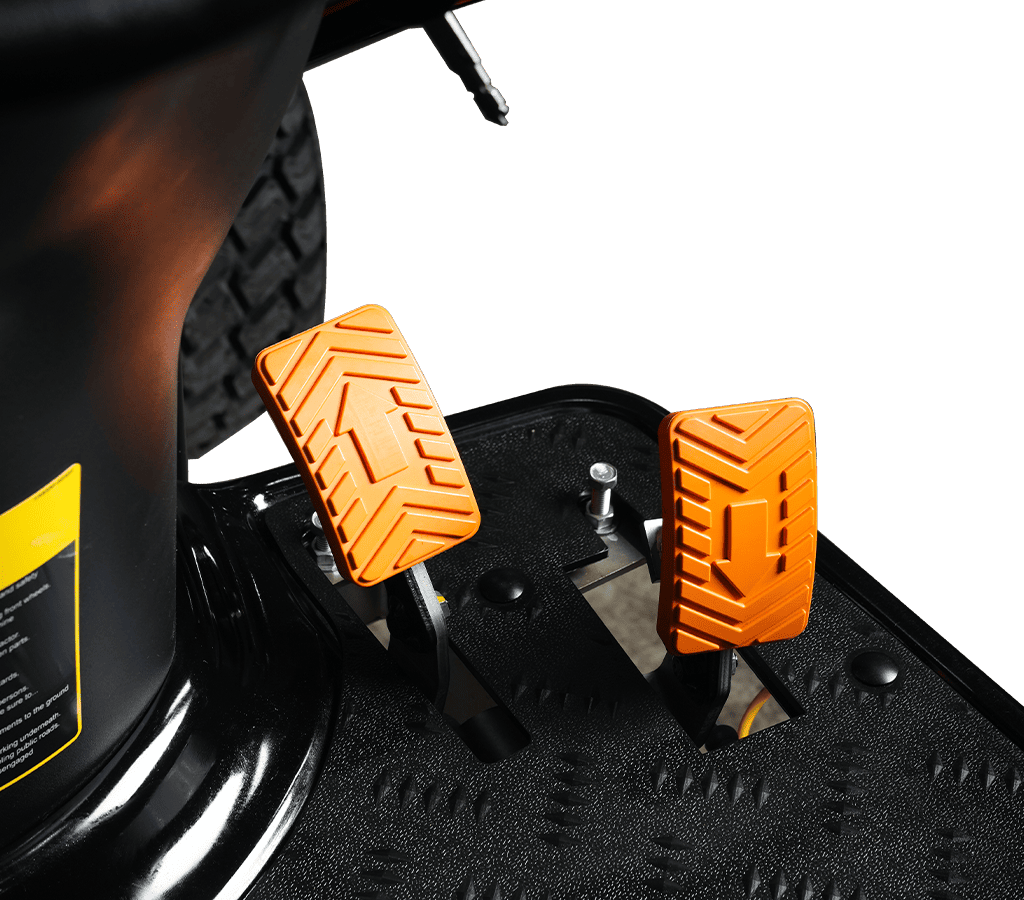

Yanmar SA222-R and SA222-Q combine advanced engineering with user-friendly operation. Both models feature a two-pedal hydrostatic transmission and are available in cabin & ROPS variants, delivering exceptional efficiency and performance for various applications.

Engine Power (HP)

hp 22.0

Transmission Type

Hydrostatic

Warranty

5 Year Warranty

Tough Features for Tougher Fields.

Step into the future of farming with advanced tractor features engineered for performance. Every detail is designed to boost productivity, from ergonomic design and high lifting capacity to superior fuel efficiency and intuitive controls.

Exceptional Ground Clearance

Enjoy a smooth ride across uneven surfaces with superior underbody clearance designed for rugged terrain.

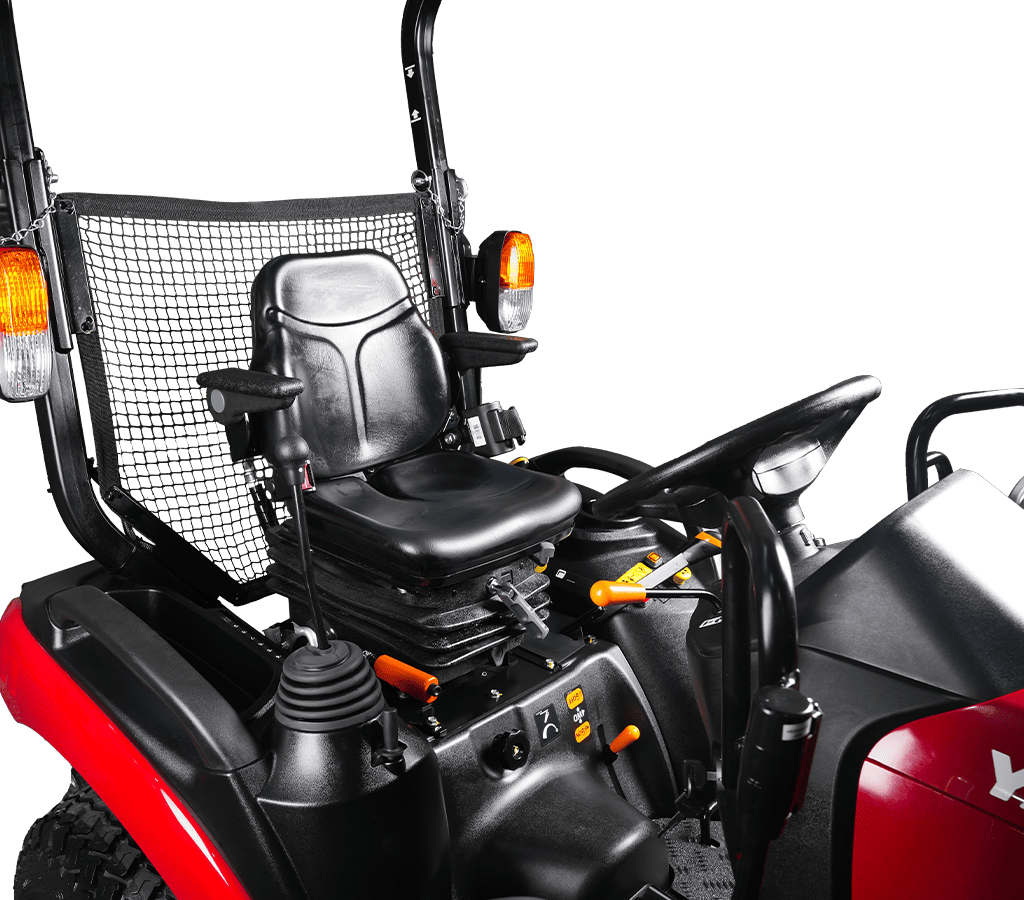

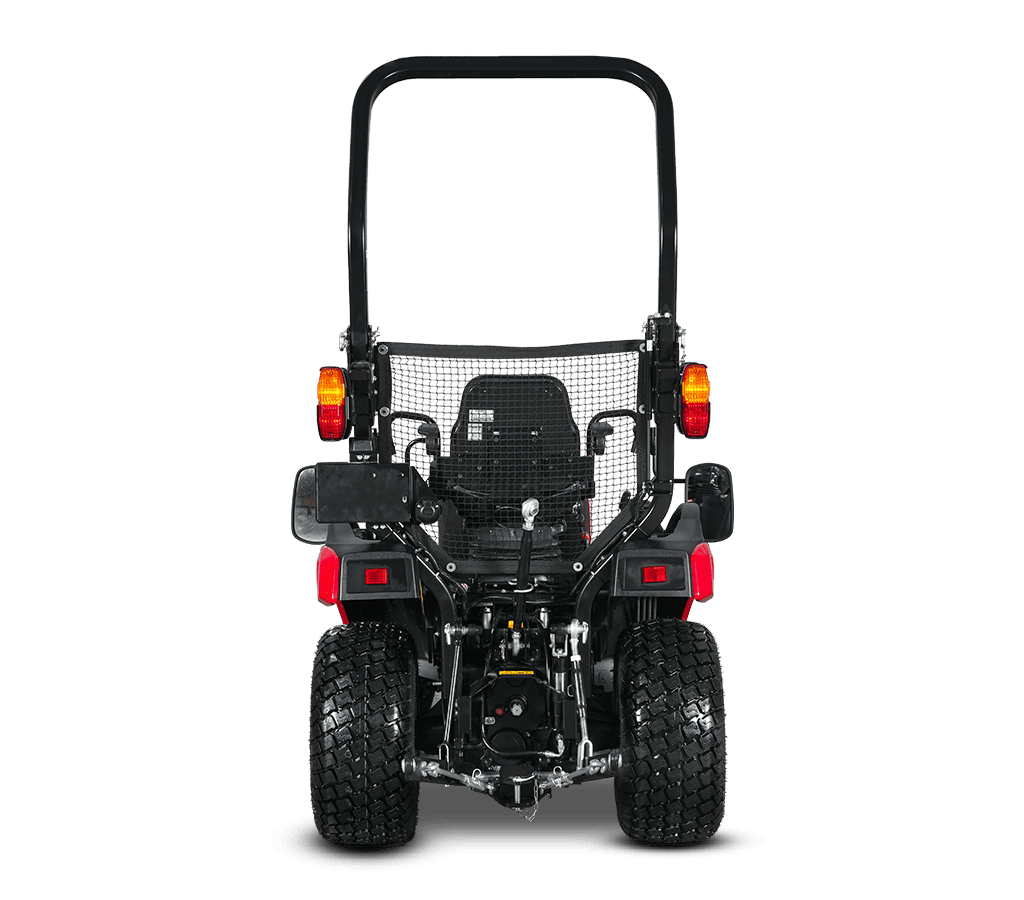

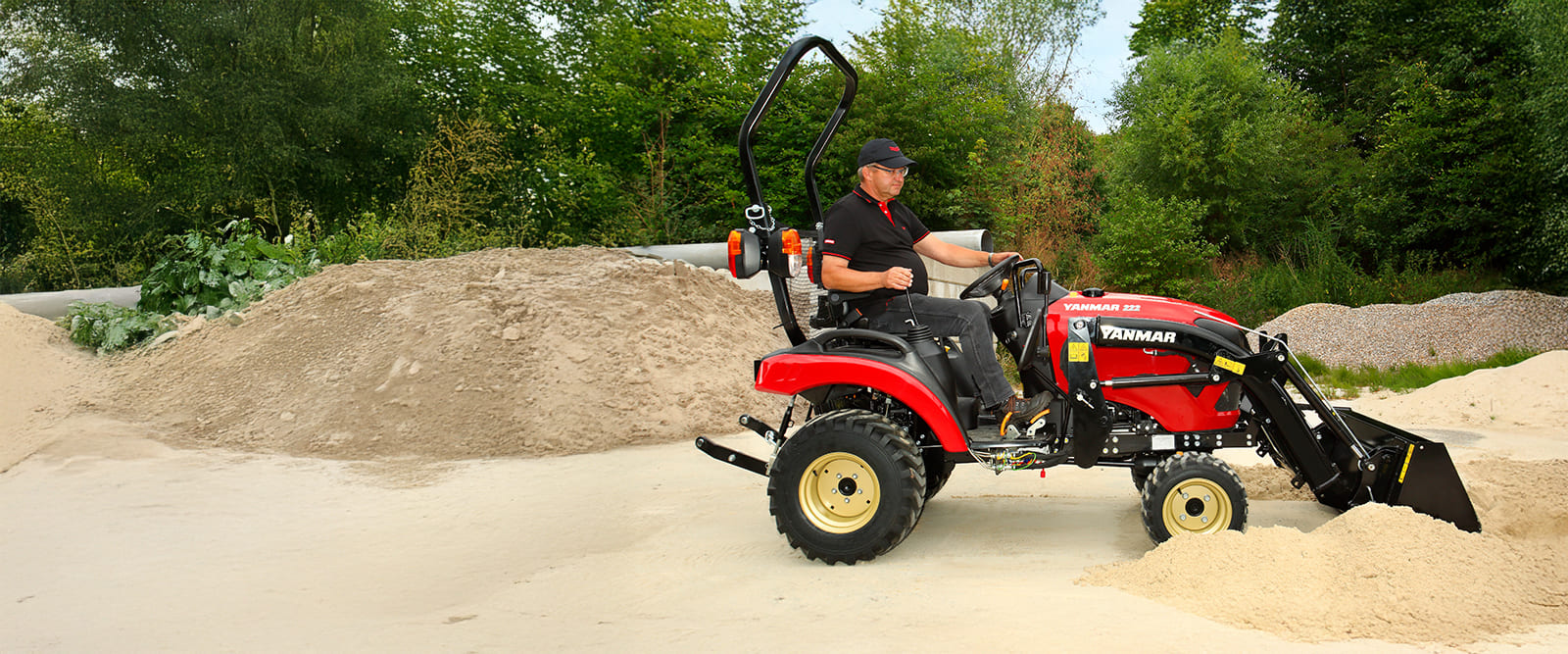

ROPS Protection

Stay secure with a low-profile rollover protection structure ideal for transport and safety.

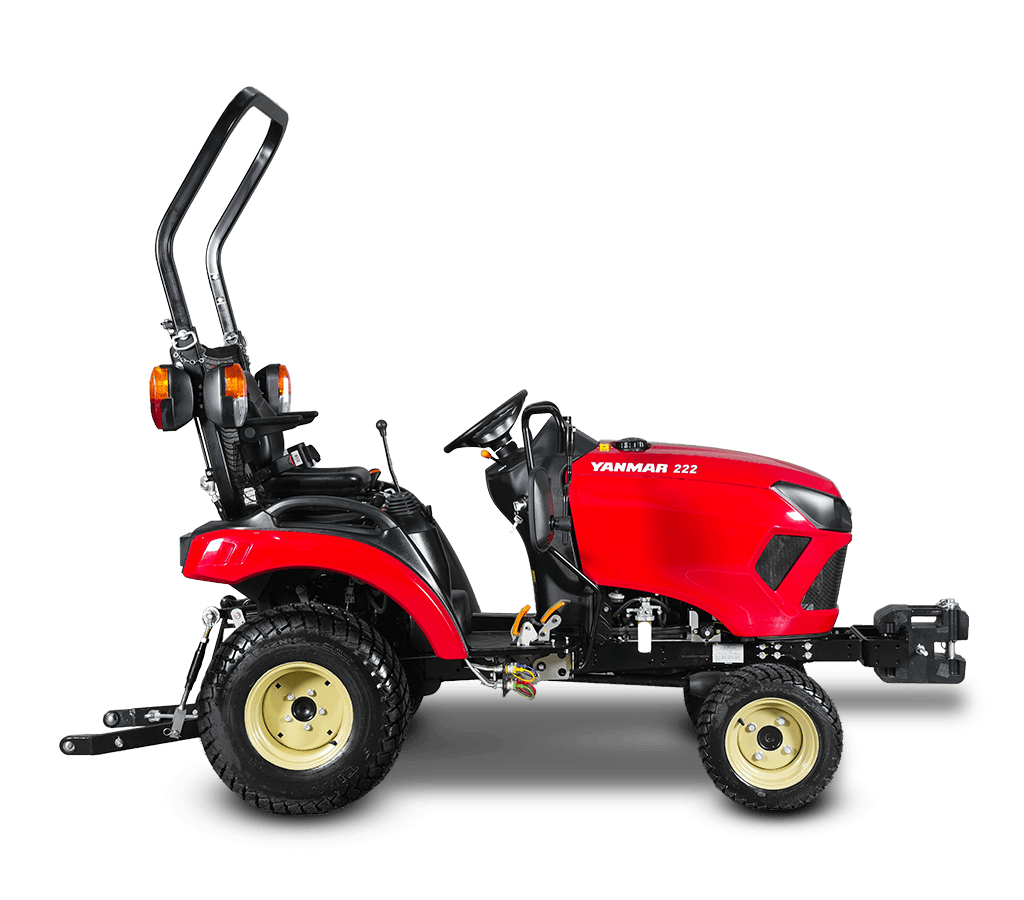

Compact Body

Engineered to reach tight spots effortlessly, perfect for limited space applications.

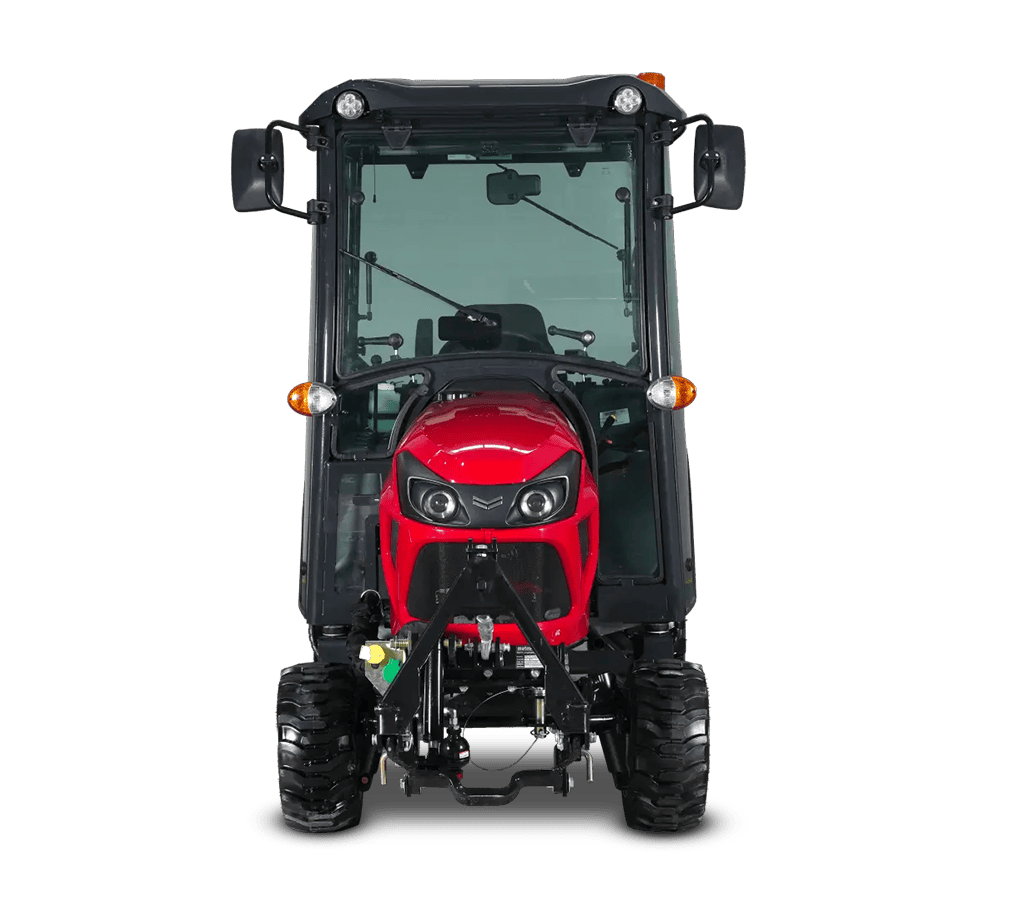

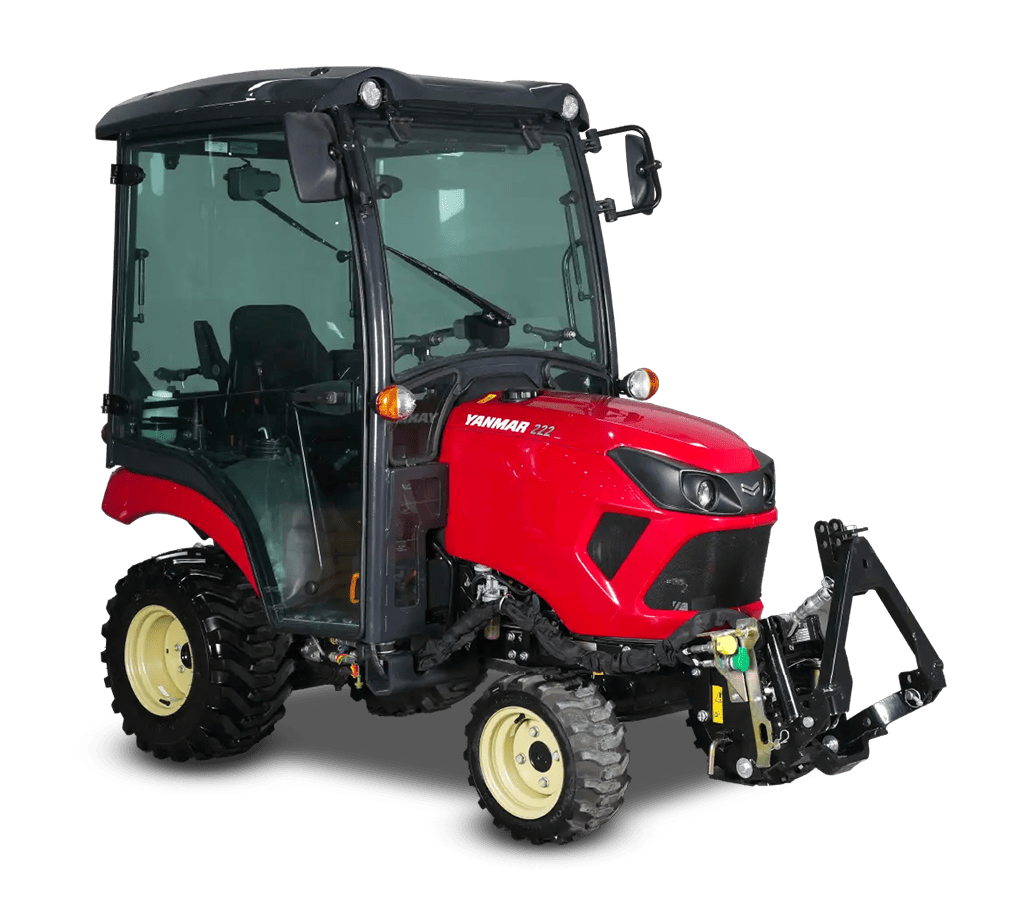

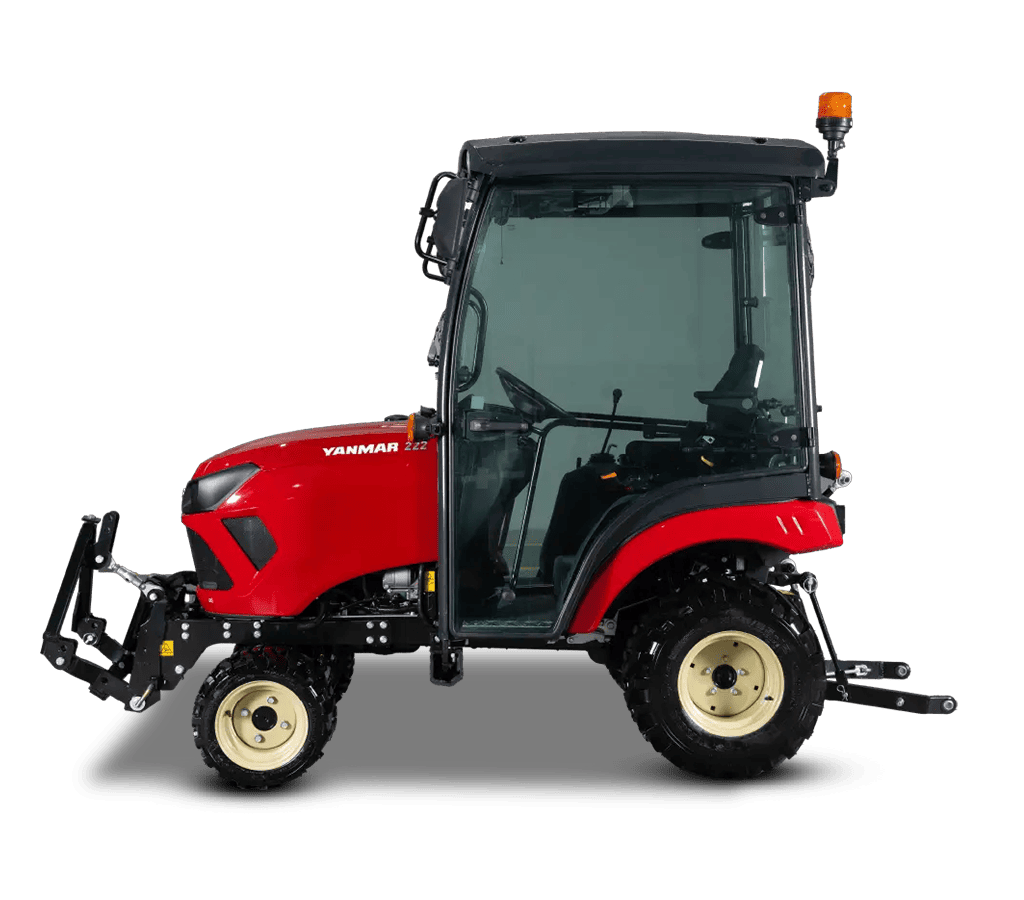

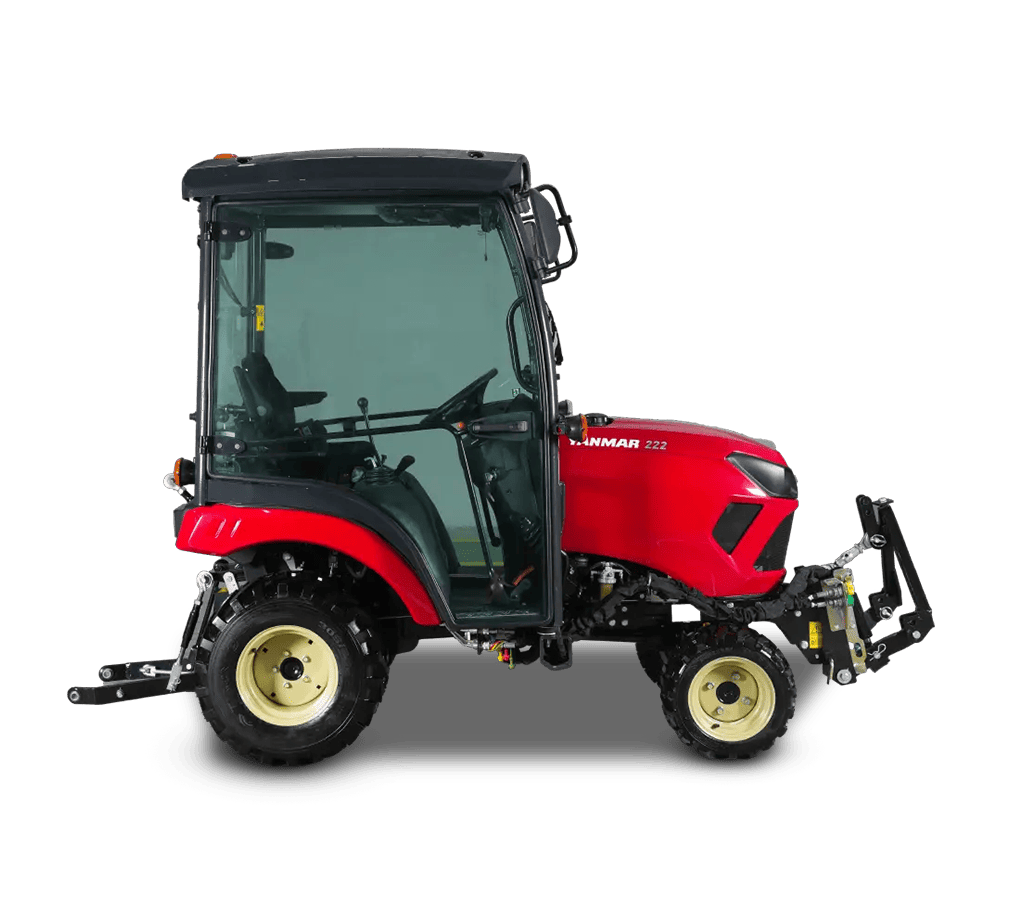

Spacious Cab

Experience superior comfort with an ergonomically designed cab that prioritizes operator protection and ease.

Built for Every Field

Our tractors are engineered to tackle a wide spectrum of agricultural applications, from land preparation and sowing to harvesting and haulage. With powerful engines, high lifting capacities and smooth transmissions, they adapt seamlessly to every field condition and farming need.

Smarter Farming Starts Here

Discover how Yanmar tractors achieve unmatched performance across any terrain. Click below to download the leaflet and explore the full range, features and advantages.

Download Brochure

Advanced Technology for Superior Farming

Yanmar tractors are known for being robustly built and powered by Japanese technology. Using strong engines, precise hydraulics, and improved transmission guarantees that all parts work efficiently and for a longer period. By using innovation, you get to have improved operations, less fuel use, and machines that are built to serve you longer.

ENGINE	Unit	Value
Engine name		3TNM72-DRE
Engine power (unec reg. No 120)	kW	16,1
Engine power	hp	22, 0
Number of cylinders		3
Size of engine	ccm	903
Torque	Nm	55,7
Engine speed	1/min	3. 235
Alternator	a	12V/55
Battery	ah	12V/54

TRAVELLING SECTION
Transmission type		Hydrostatic
Brake system		Multiple wet brake disk
Drive		Selectable 4WD
Differential lock		Yes
Turning circle (inner radius)	mm	2. 400
Number of ranges		2
Max. Speed (highest gear)	km/h	13.0 (13.2)
Towing capacity – not braked	kg	700
Towing capacity – braked	kg	1600
Front axle load max.	kg	700
Rear axle load max.	kg	1. 000
Max. Allowed weight	kg	1. 475 (1. 700)
PTO power rear	kW	11,0
Rear PTO speed	1/min	540
Rear-PTO	Type	1 3/8, 6 splines
Mid. PTO speed	1/min	2. 000
Front-PTO speed	1/min	2. 000
Front-PTO: 2000 1/min, 1 15 splines		Option
Fuel tank capacity	\|	23
Hydraulic oil tank capacity	\|	15

Steering system		Hydraulic powered
Capacity hydro pump	1/min	28,3
Steering pump	1/min	13,2
Pump for hydraulics	1/min	15,1
Hydraulic pressure	bar	130
Hydraulic connectors	nm	2 Sets

3-POINT LIFT CAPACITY
Rear	kg	510
61 cm behind lift point – Rear	kg	397
Front	kg	325
61 cm behind lift point – Front	kg	280

DIMENSIONS AND WEIGHT
Total length	mm	2.699
Total width	mm	1.198 (1.197)
Ground clearance	mm	160
Wheel base	mm	1. 470
Industrial wheel set fr size []	inch	FT: 18×8.50-10 RT: 26×12.00-12
Agri wheel set fr size []	inch	–
Height	mm	1,515 (2,070)
Weight	kg	768 (1,100)
Midmower m60, width	m	188
Midmower cutting width	cm	152 (151)
