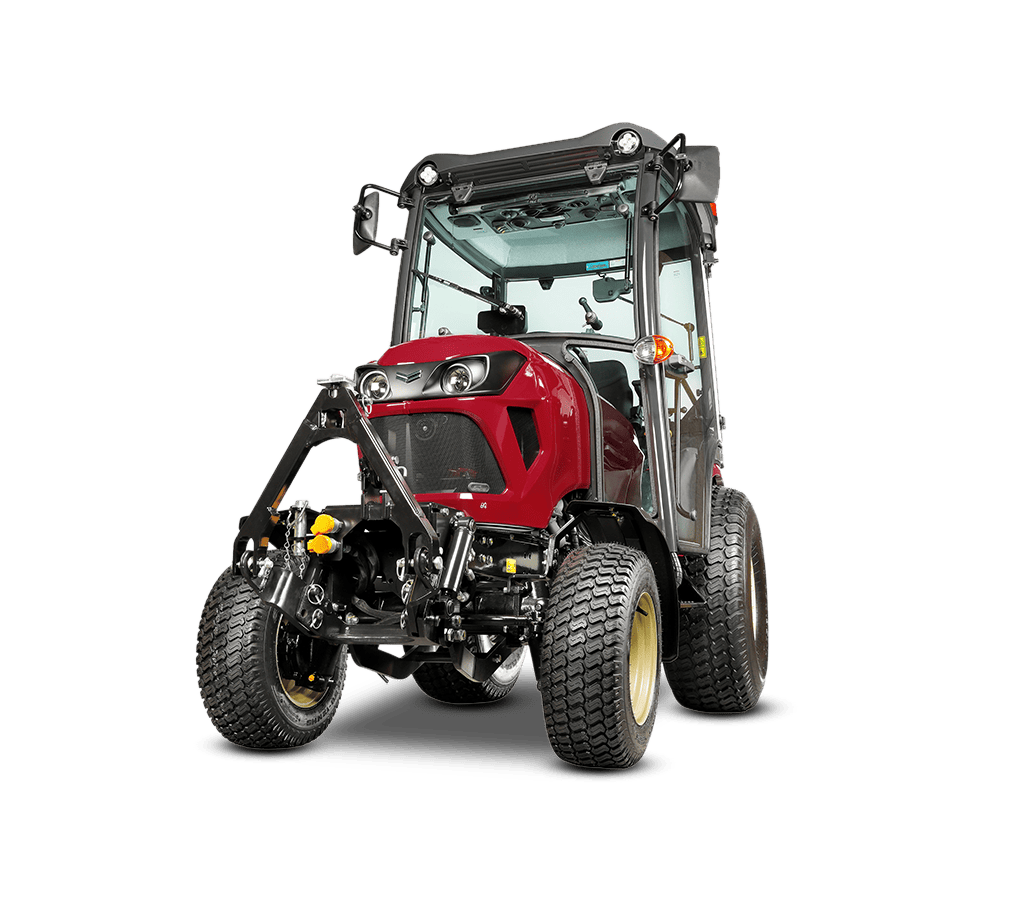

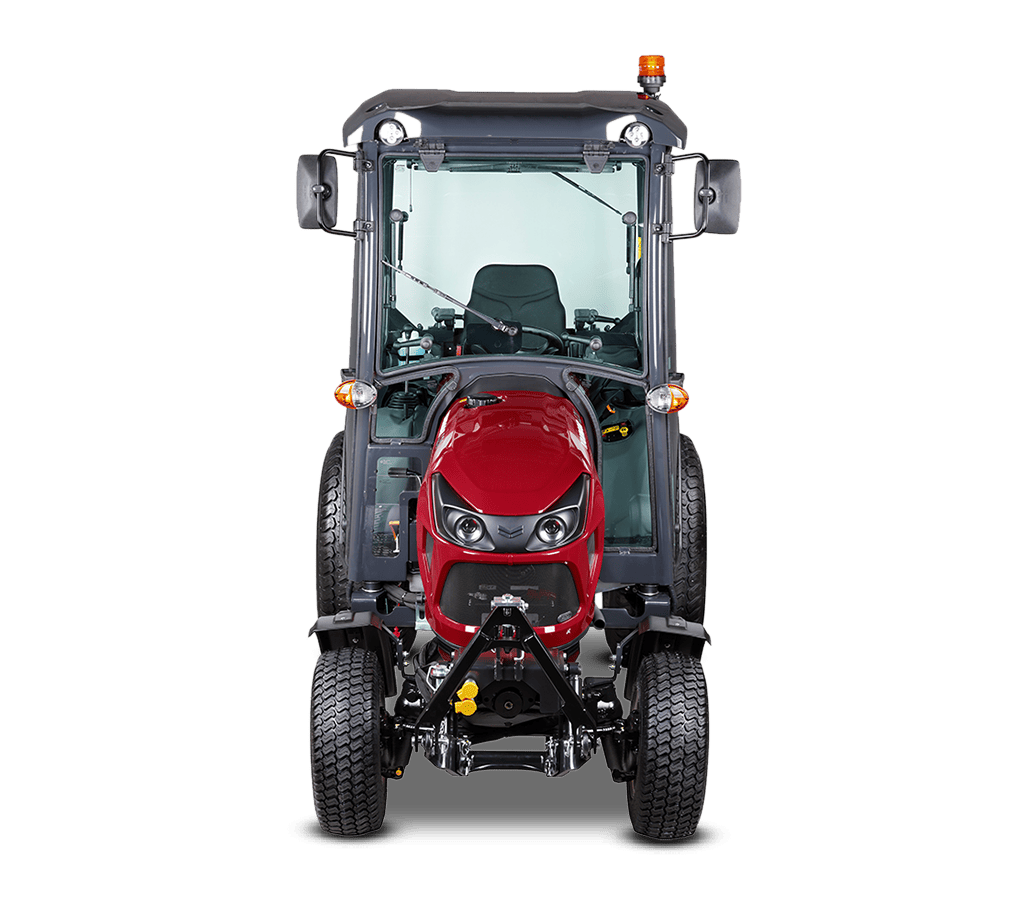

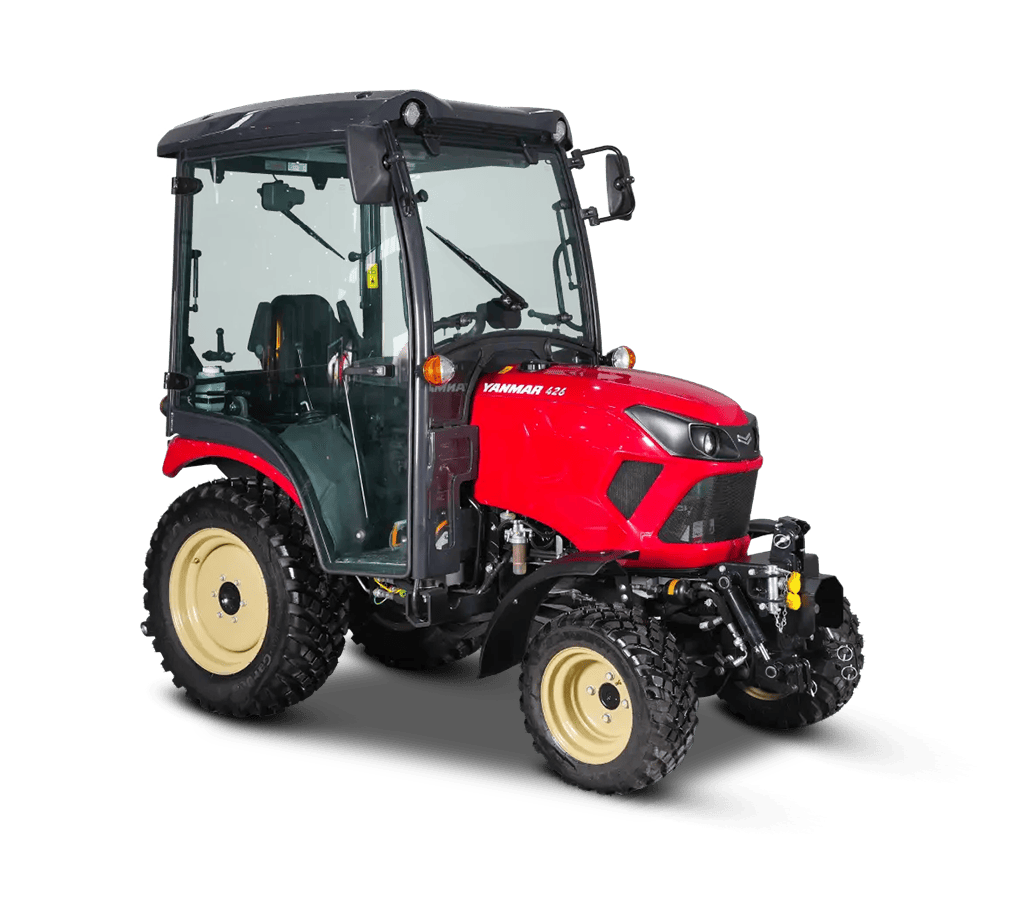

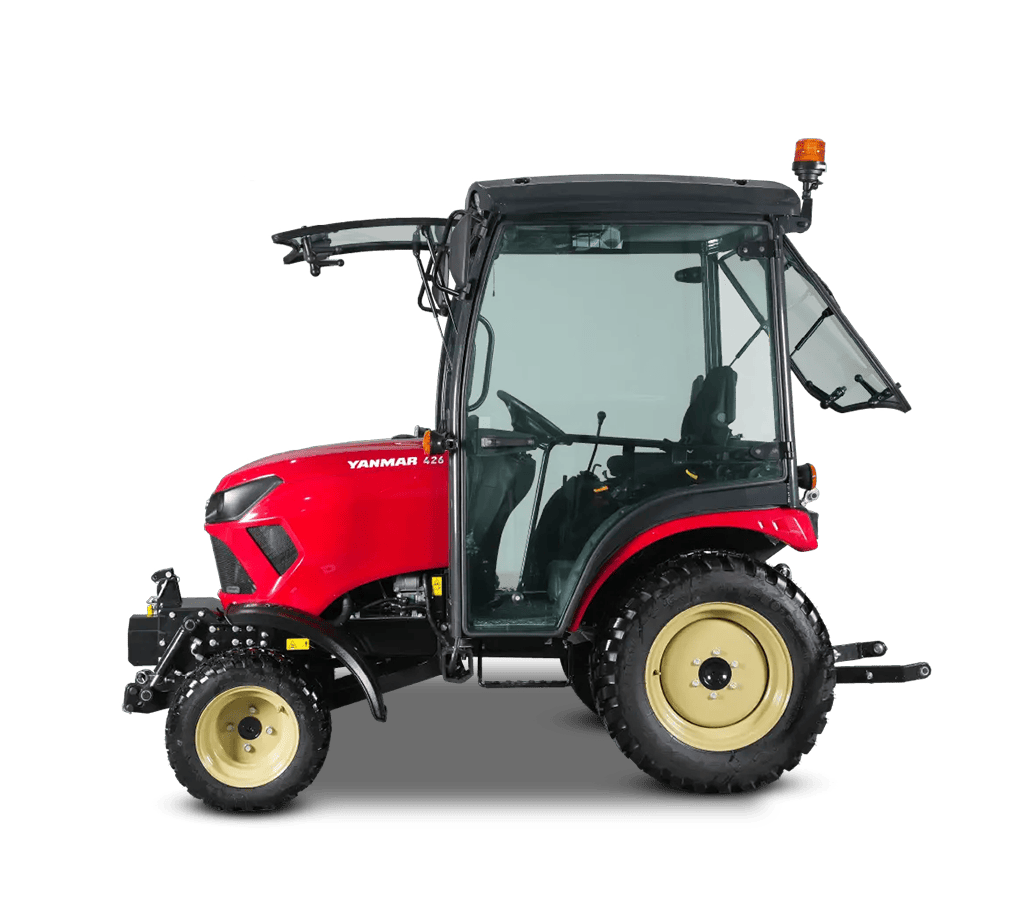

SA426-R-Q

The Yanmar SA426-R redefines compact power that is rugged enough to handle demanding jobs like mowing, digging, or hauling yet compact enough to navigate tight spaces easily. Whether on a farm or worksite, it’s built to deliver reliable performance wherever needed.

Model Overview

Master every task with compact precision

Engineered for performance across various terrains and tasks, the SA426-R delivers more than just horsepower. With its 26 HP engine and smooth hydrostatic transmission, this compact tractor features a spacious cab, superior ground clearance, and operator-first design that ensures comfort and control. Whether landscaping, farming, or grounds maintenance, the SA426-R powers through with precision.

Engine Power (HP)

26

Transmission Type

Hydrostatic

Warranty

5 Year Warranty

Tough Features for Tougher Fields.

Step into the future of farming with advanced tractor features engineered for performance. Every detail is designed to boost productivity, from ergonomic design and high lifting capacity to superior fuel efficiency and intuitive controls.

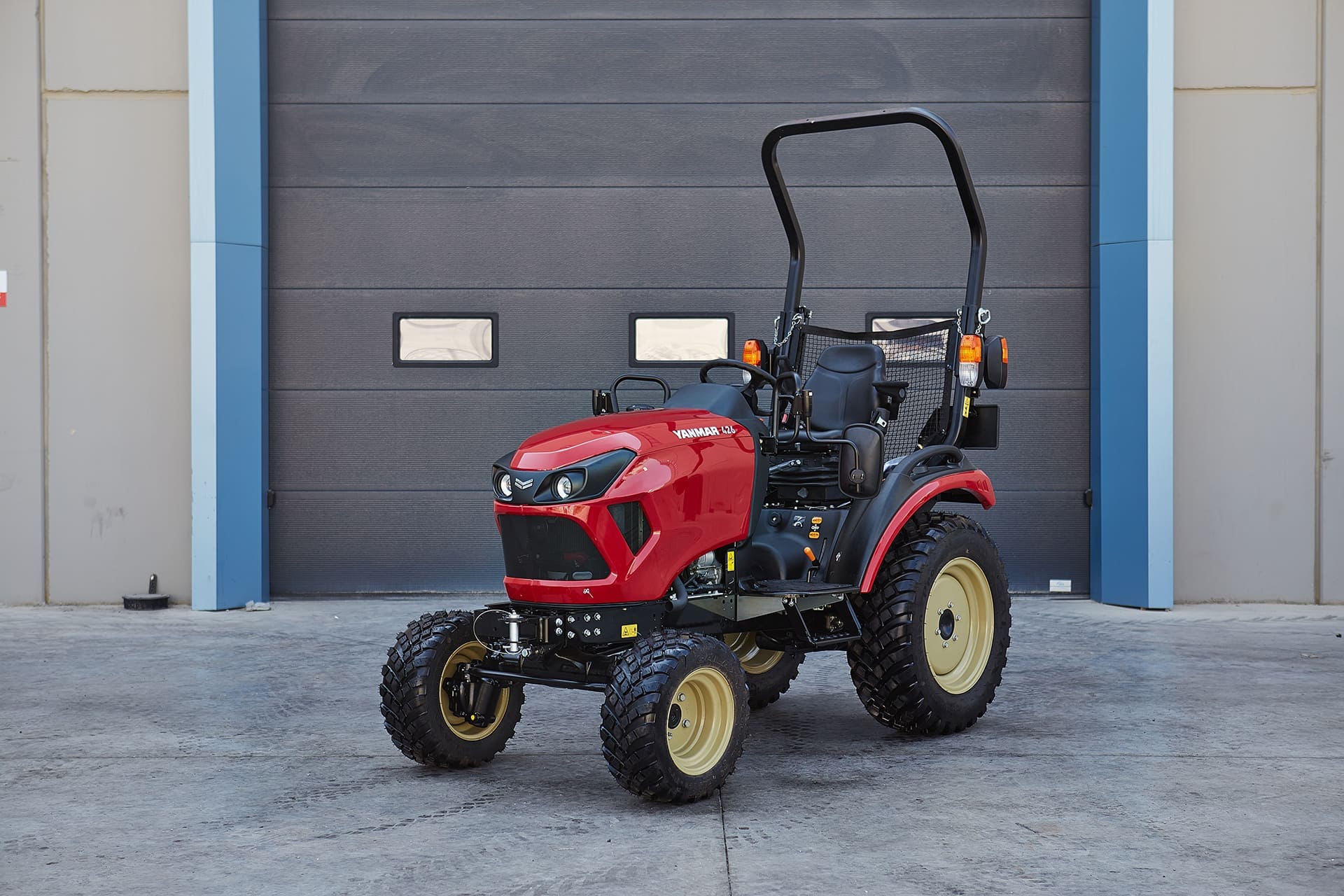

ROPS-Equipped Design

Built-in safety and easy transport with a foldable Roll Over Protective Structure.

Compact Body

Perfect for space-sensitive environments like gardens, vineyards, and nurseries.

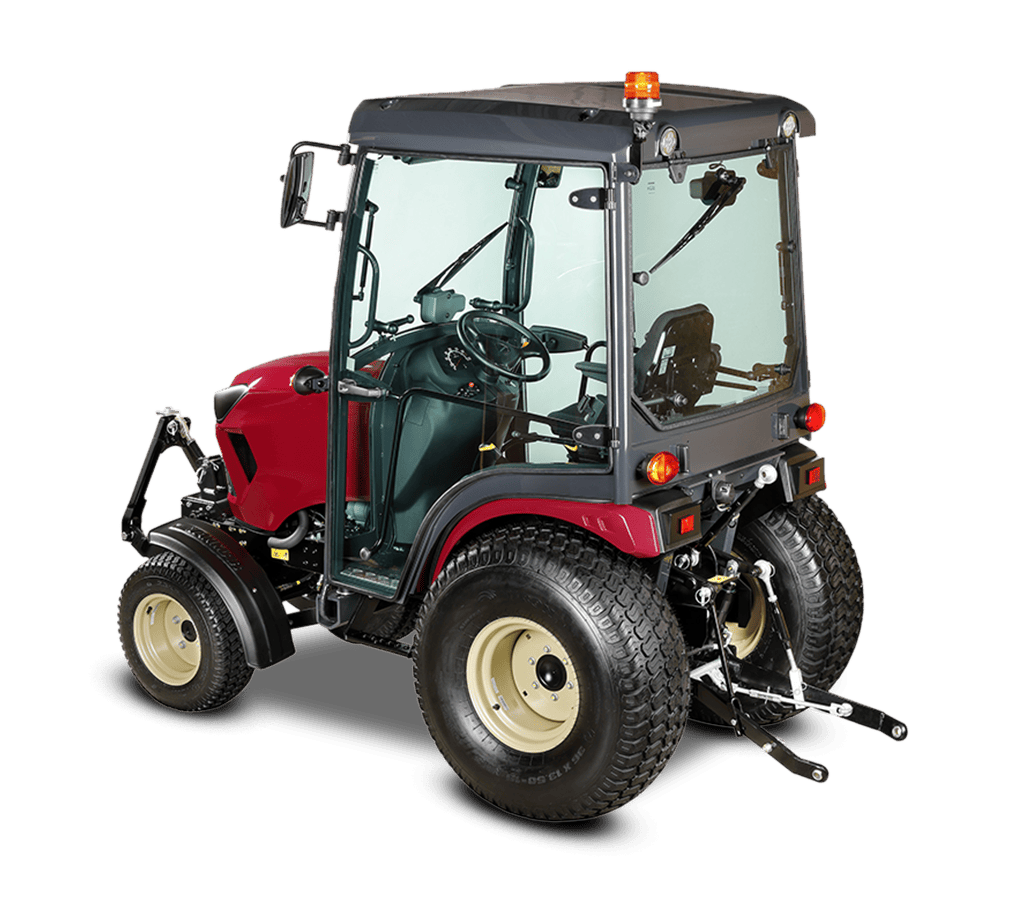

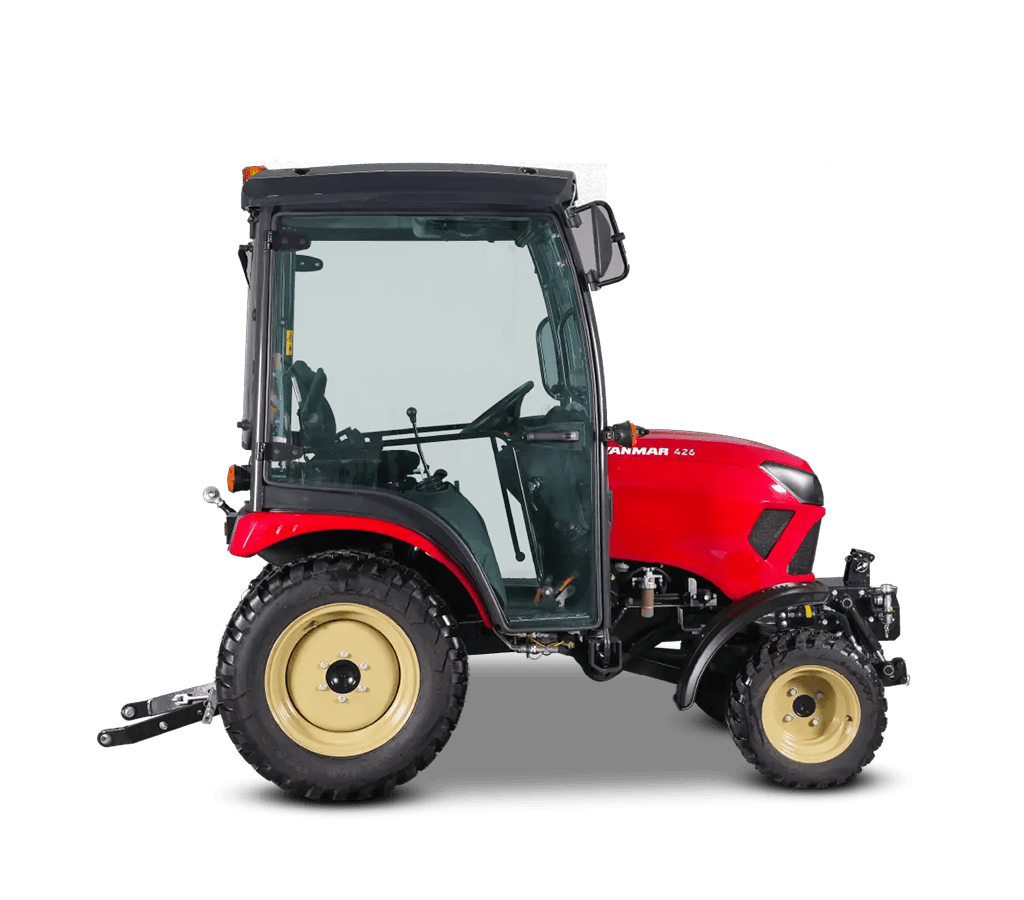

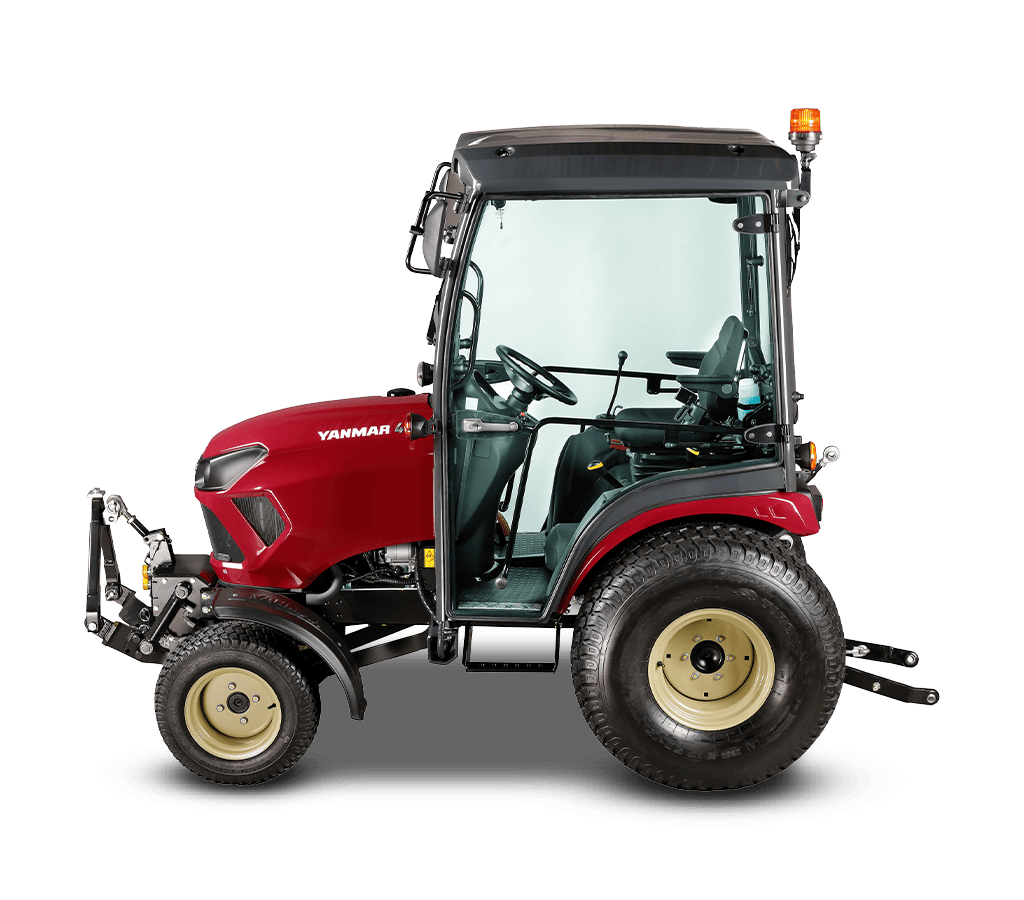

Spacious Cab

Comfort meets protection ideal for long work hours in varying weather conditions.

Versatile Category 1 – 3 Point Hitch

Comes with a Category 1 hitch as standard, enabling a wide range of implement compatibility.

Built for Every Field

Our tractors are engineered to tackle a wide spectrum of agricultural applications, from land preparation and sowing to harvesting and haulage. With powerful engines, high lifting capacities and smooth transmissions, they adapt seamlessly to every field condition and farming need.

Smarter Farming Starts Here

Discover how Yanmar tractors achieve unmatched performance across any terrain. Click below to download the leaflet and explore the full range, features and advantages.

Download Brochure

Advanced Technology for Superior Farming

Yanmar tractors are known for being robustly built and powered by Japanese technology. Using strong engines, precise hydraulics, and improved transmission guarantees that all parts work efficiently and for a longer period. By using innovation, you get to have improved operations, less fuel use, and machines that are built to serve you longer.

ENGINE	Unit	Value
Engine name		3TNM72-DRE
Engine power (unec reg. No 120)	kW	18,9
Engine power	hp	26,0
Number of cylinders		3
Size of engine	ccm	1. 115
Torque	Nm	67,8
Engine speed	1/min	3. 210
Alternator	a	12V/55
Battery	ah	12V/54

Transmission type		Hydrostatic
Brake system		Multiple wet brake disk
Drive		Selectable 4WD
Differential lock		Yes
Turning circle (inner radius)	mm	2. 600
Number of ranges		2
Max. Speed (highest gear)	km/h	23, 3
Towing capacity – not braked	kg	700
Towing capacity – braked	kg	1. 600
Front axle load max.	kg	740
Rear axle load max.	kg	1. 000
Max. Allowed weight	kg	1. 475 (1. 740)
PTO power rear	kW	14,5
Rear PTO speed	1/min	540
Rear-PTO	Type	1 3/8, 6 splines
Mid. PTO speed	1/min	2. 000
Front-PTO speed	1/min	1. 000
Front-PTO: 2000 1/min, 1 15 splines		Option
Fuel tank capacity	\|	23
Hydraulic oil tank capacity	\|	15

Steering system		Hydraulic powered
Capacity hydro pump	1/min	28,3
Steering pump	1/min	13,2
Pump for hydraulics	1/min	15,1
Hydraulic pressure	bar	167
Hydraulic connectors	nm	2 Sets

Rear	kg	713
61 cm behind lift point – Rear	kg	548
Front	kg	530
61 cm behind lift point – Front	kg	425

Total length	mm	2. 793
Total width	mm	1. 436
Ground clearance	mm	260
Wheel base	mm	1. 600
Industrial wheel set fr size []	inch	FT: 23×8.50-12 RT: 14-17.5
Agri wheel set fr size []	inch	–
Height	mm	1.675 (2.070)
Weight	kg	846 (1. 190)
Midmower m60, width	m	188
Midmower cutting width	cm	151

Looking for Help?
You’re in the Right Place

Need assistance or have a question? Explore our help resources to quickly find answers,
guides, and support tailored just for you.

FINANCING OPPORTUNITIES

Make power more accessible with flexible financing options on Yanmar tractors. Discover plans that fit your budget and empower you to bring home advanced Japanese technology and unmatched performance faster and easier.

PARTS & SERVICE-

Keep your Yanmar running like new with our expert service network and genuine parts support. Engineered for reliability, backed by responsive service wherever your field takes you.

WARRANTY INFORMATION

Yanmar tractors come with the confidence of solid warranty coverage. Explore our transparent and reliable warranty plans that protect your investment and ensure peace of mind season after season.

SUGGESTED TRACTOR

Discover our top-recommended tractors, designed for power, efficiency, and durability. Perfect for farms of all sizes, these reliable machines help you get more done with less effort.

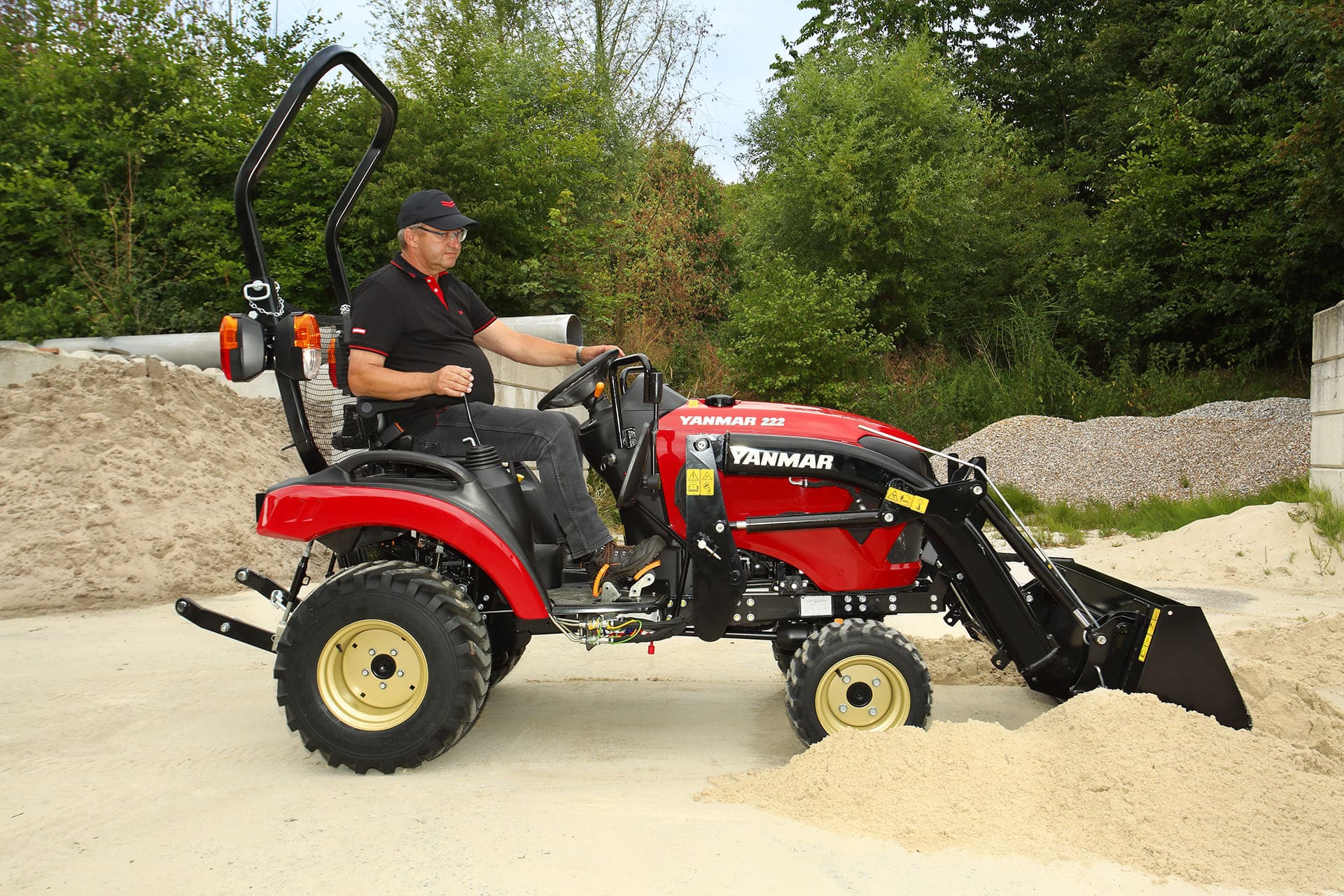

SA222-R
