YM347- R-Q

With cutting-edge technology and rugged strength, the YM347-R gives you unmatched control, all-day comfort, and unwavering confidence. Built for performance and precision, it’s your trusted partner in and out of the field.

Model Overview

Built to Conquer

The Yanmar YM347-R brings together traditional reliability and advanced features to handle tomorrow’s challenges today. Powered by a fuel-efficient 47 HP direct-injection standard rail engine, this compact utility tractor offers a fully synchronized 12×12 transmission and a foldable ROPS for versatile usage. Its slim width of just 1.2 m enables smooth operation even in tight rows, making it ideal for orchards, vineyards, and multi-purpose fields.

Engine Power (HP)

47

Transmission Type

Mechanical full Synchronized

Warranty

5 Year Warranty

Tough Features for Tougher Fields.

Step into the future of farming with advanced tractor features engineered for performance. Every detail is designed to boost productivity, from ergonomic design and high lifting capacity to superior fuel efficiency and intuitive controls.

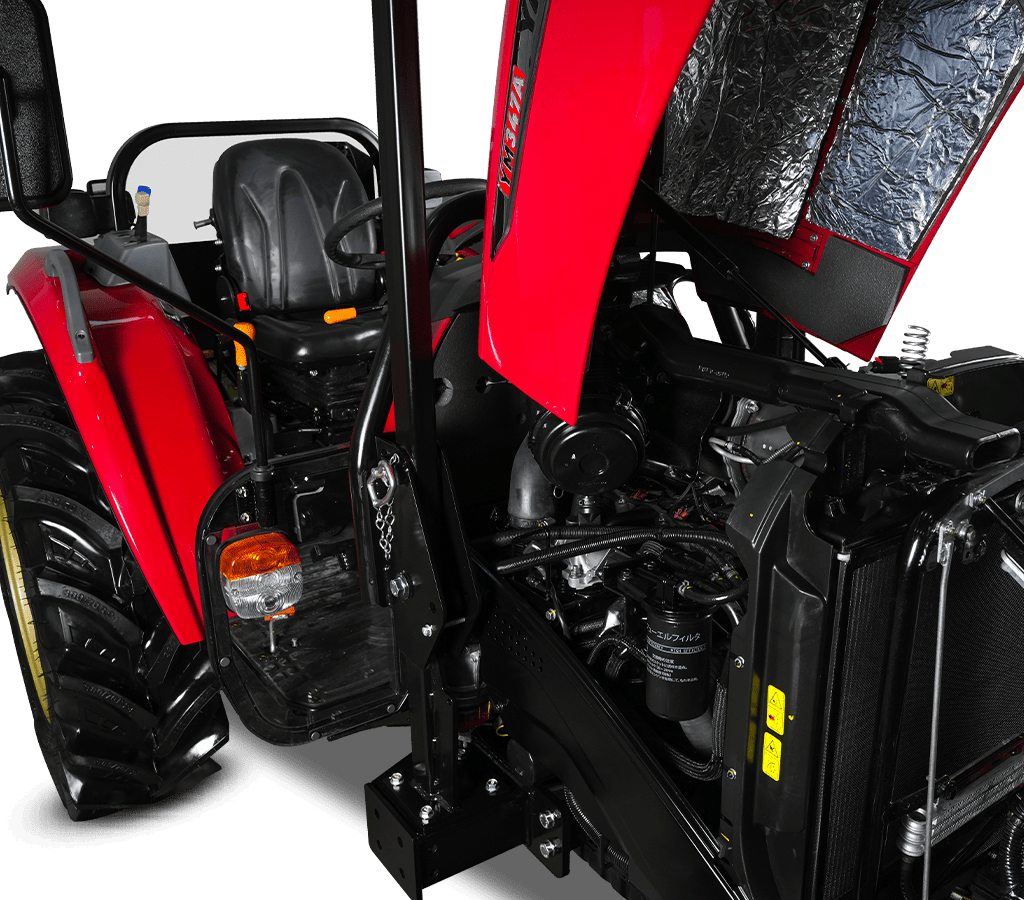

TNV Common Rail Engine

Fuel-efficient and emission-compliant, delivering power with lower running costs.

Fully Synchronized 12x12 Transmission

Smooth speed shifting and optimal torque at every stage of operation.

Foldable ROPS

It increases safety and allows easy navigation under low-clearance areas like trees and sheds.

Narrow Width (1.2 m)

Designed for tight operating zones ideal for vineyards and orchards.

Built for Every Field

Our tractors are engineered to tackle a wide spectrum of agricultural applications, from land preparation and sowing to harvesting and haulage. With powerful engines, high lifting capacities and smooth transmissions, they adapt seamlessly to every field condition and farming need.

Smarter Farming Starts Here

Discover how Yanmar tractors achieve unmatched performance across any terrain. Click below to download the leaflet and explore the full range, features and advantages.

Download Brochure

Advanced Technology for Superior Farming

Yanmar tractors are known for being robustly built and powered by Japanese technology. Using strong engines, precise hydraulics, and improved transmission guarantees that all parts work efficiently and for a longer period. By using innovation, you get to have improved operations, less fuel use, and machines that are built to serve you longer.

ENGINE	Unit	Value
Engine name		4TNV88C
Engine power (unec reg. No 120)	kW	35,0
Engine power	hp	47, 0
Number of cylinders		4
Size of engine	ccm	2. 189
Torque	Nm	142,6
Engine speed	1/min	2. 800
Alternator	a	12V/55
Battery	ah	12V/70

Transmission type		Mechanical full synchronized
Brake system		Multiple wet brake disk
Drive		Selectable 4WD
Differential lock		Yes
Turning circle (inner radius)	mm	Left: 4. 720 / Right: 4. 760
Number of ranges		12F+12R (incl. creep)
Max. Speed (highest gear)	km/h	25, 9
Towing capacity – not braked	kg	3. 000
Towing capacity – braked	kg	6. 000
Front axle load max.	kg	1. 600
Rear axle load max.	kg	2. 800
Max. Allowed weight	kg	3. 660
PTO power rear	kW	26,5
Rear PTO speed	1/min	540 / 770 RPM@2430 min⁻¹
Rear-PTO	Type	1 3/8, 6 splines
Mid. PTO speed	1/min	NA
Front-PTO speed	1/min	NA
Front-PTO: 2000 1/min, 1 15 splines		NA (After market)
Fuel tank capacity	\|	48
Hydraulic oil tank capacity	\|	29

Steering system		Hydraulic powered
Capacity hydro pump	1/min	38,5
Steering pump	1/min	21,5
Pump for hydraulics	1/min	17, 0
Hydraulic pressure	bar	167
Hydraulic connectors	nm	2 Sets

Rear	kg	1. 430
61 cm behind lift point – Rear	kg	1. 250
Front	kg	NA
61 cm behind lift point – Front	kg	NA

Total length	mm	3. 715
Total width	mm	1. 420 – 1. 723 []
Ground clearance	mm	Min. 227 – Max. 336
Wheel base	mm	1. 970
Height	mm	2. 380
Weight	kg	2. 085
Midmower m60, width	m	NA
Midmower cutting width	cm	NA
