Heavy-Duty Workhorse for Modern Agriculture

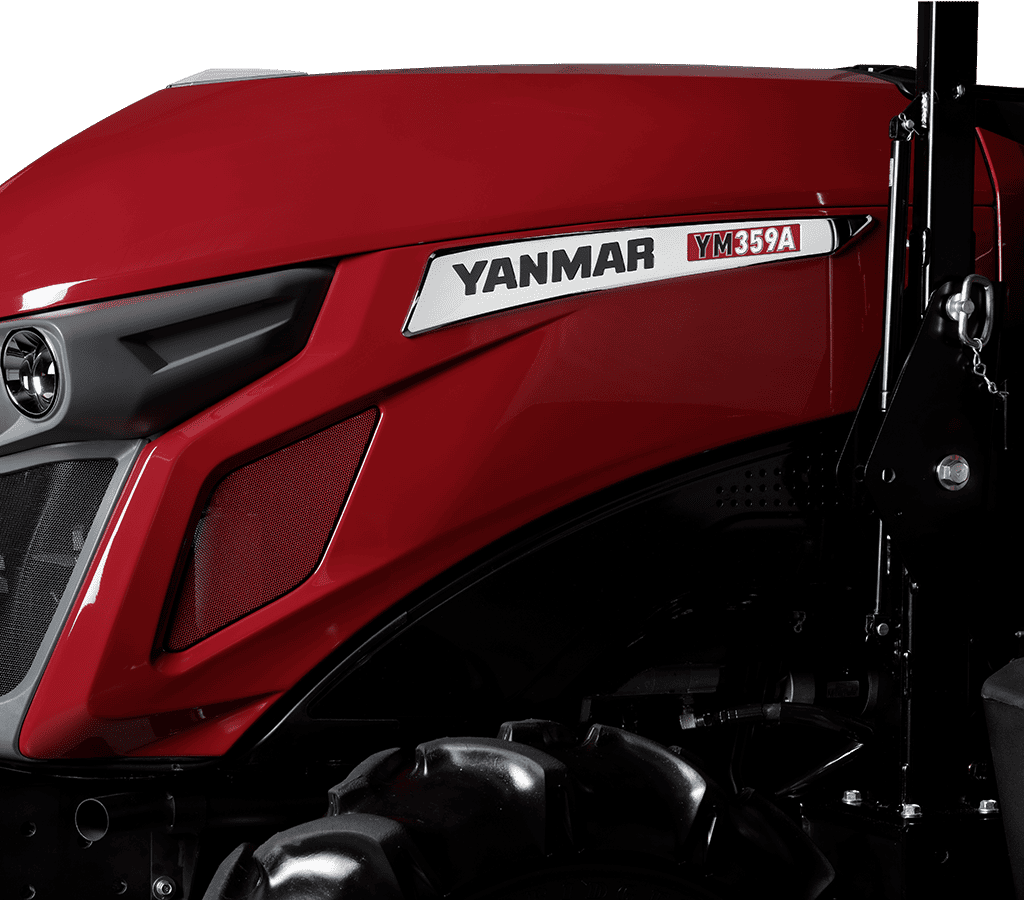

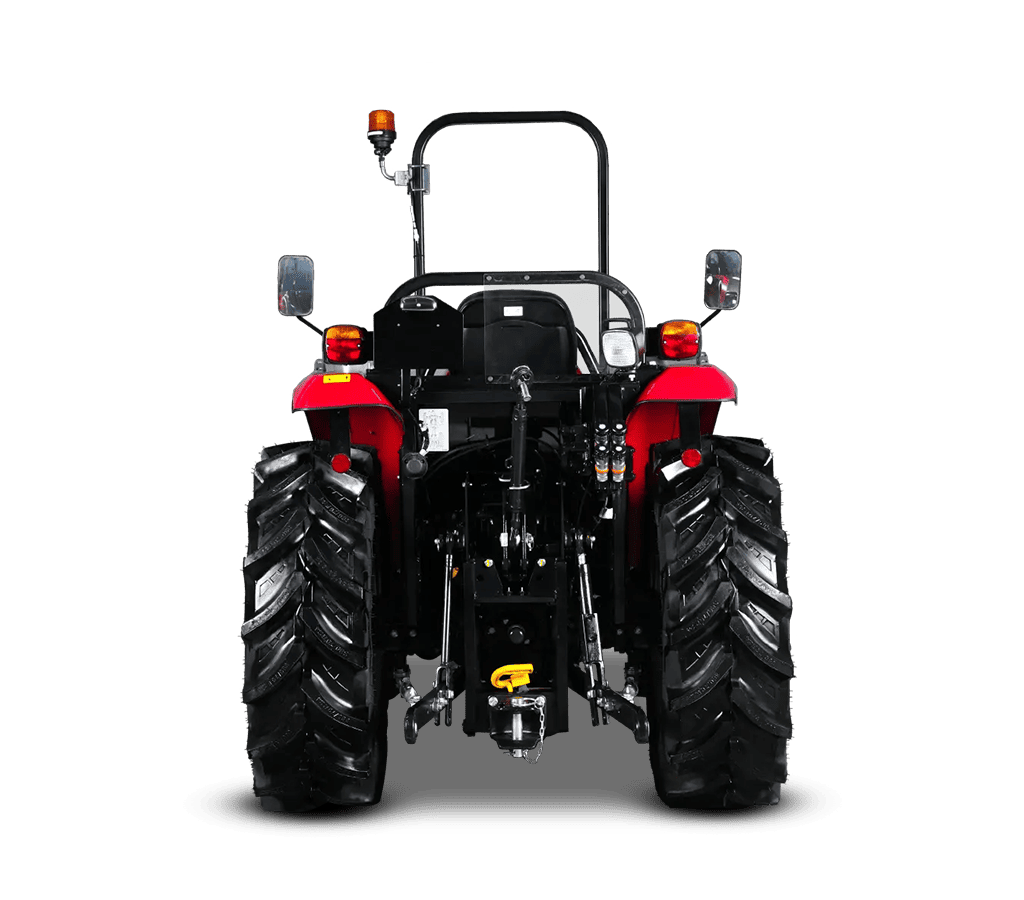

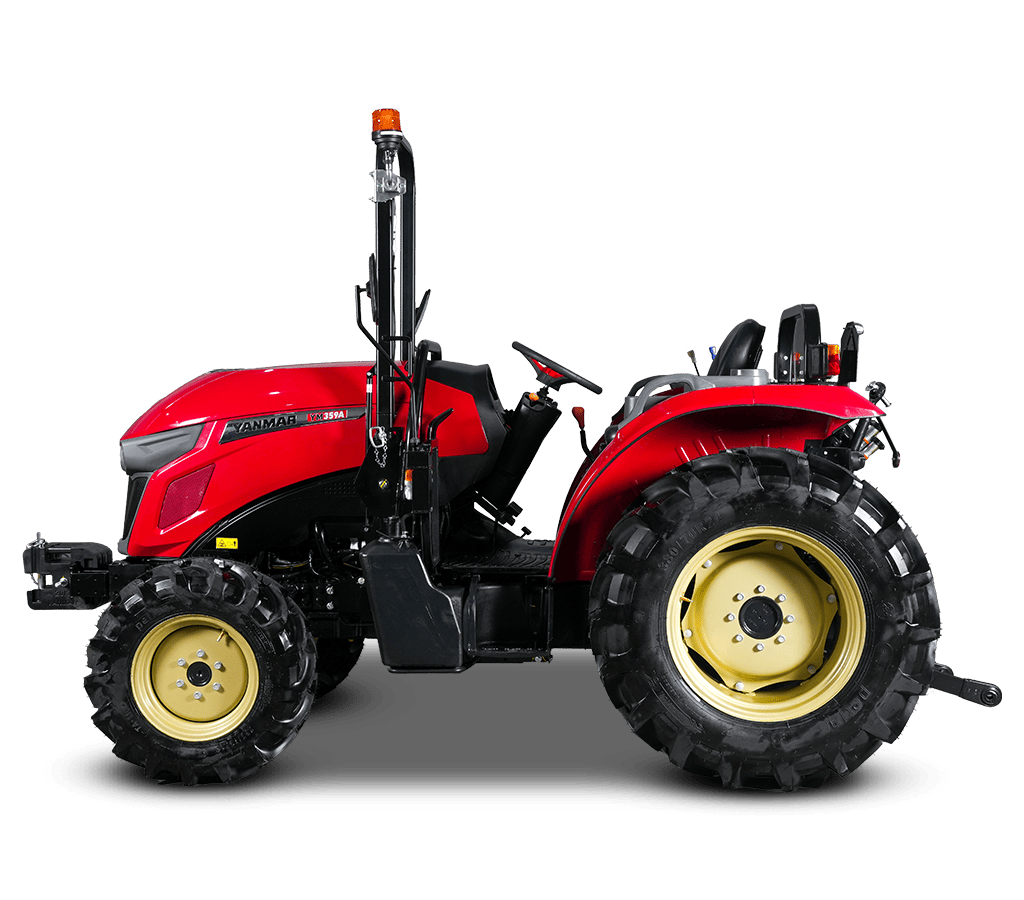

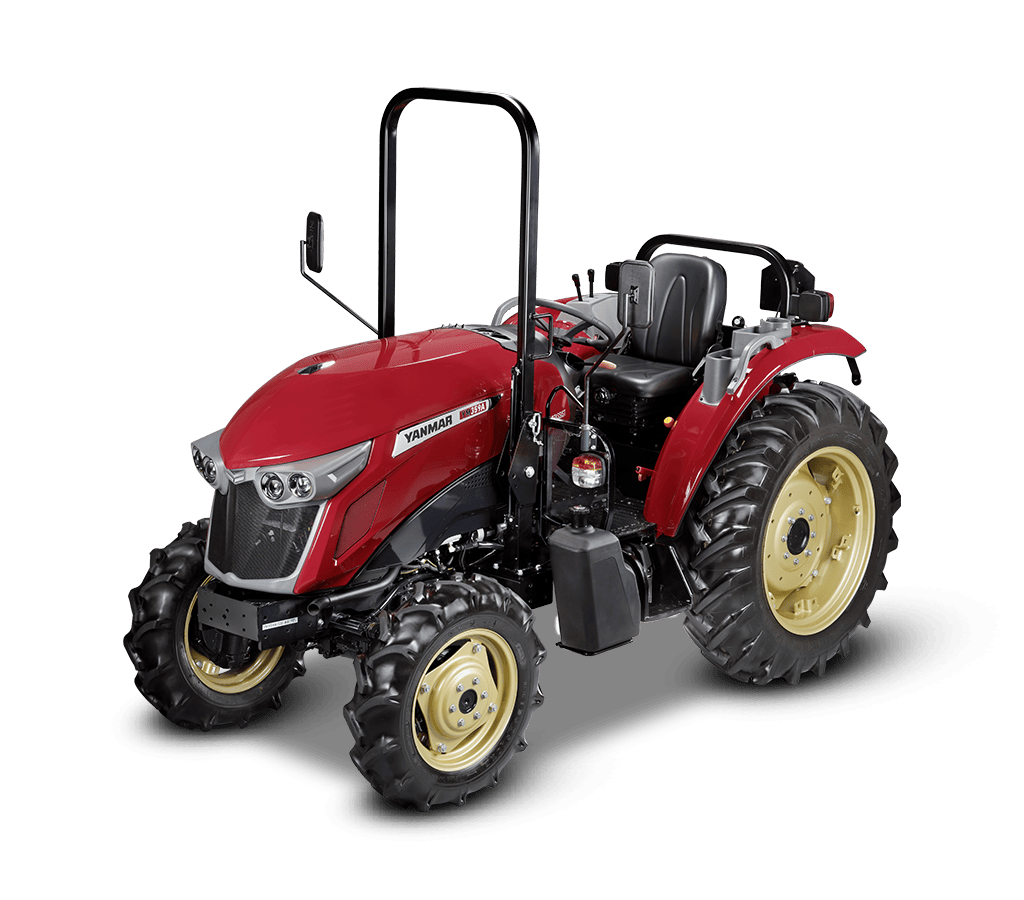

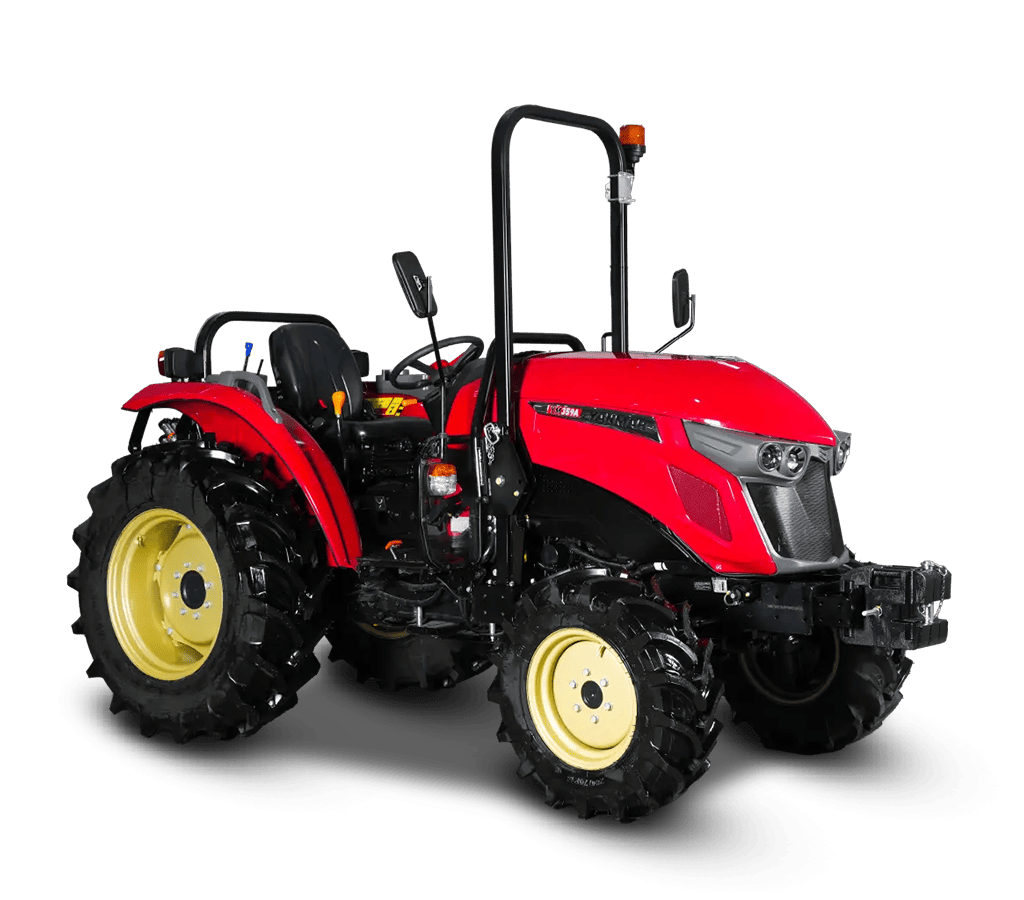

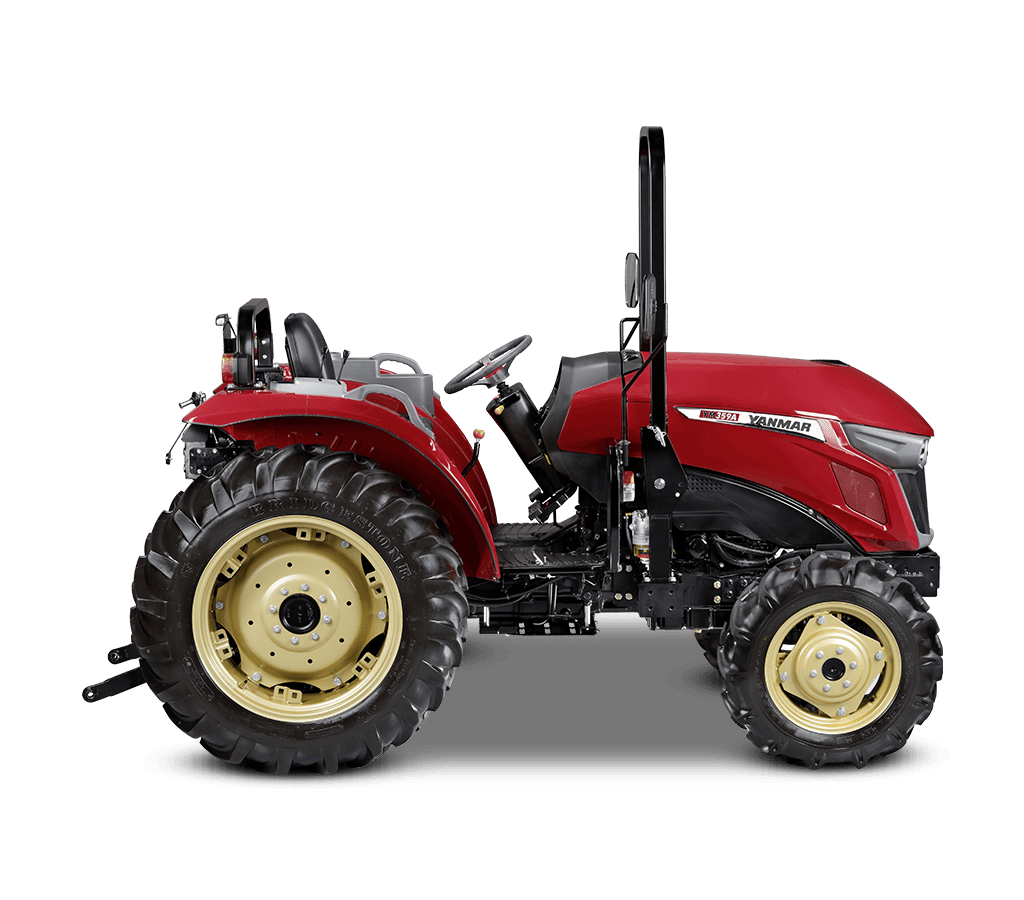

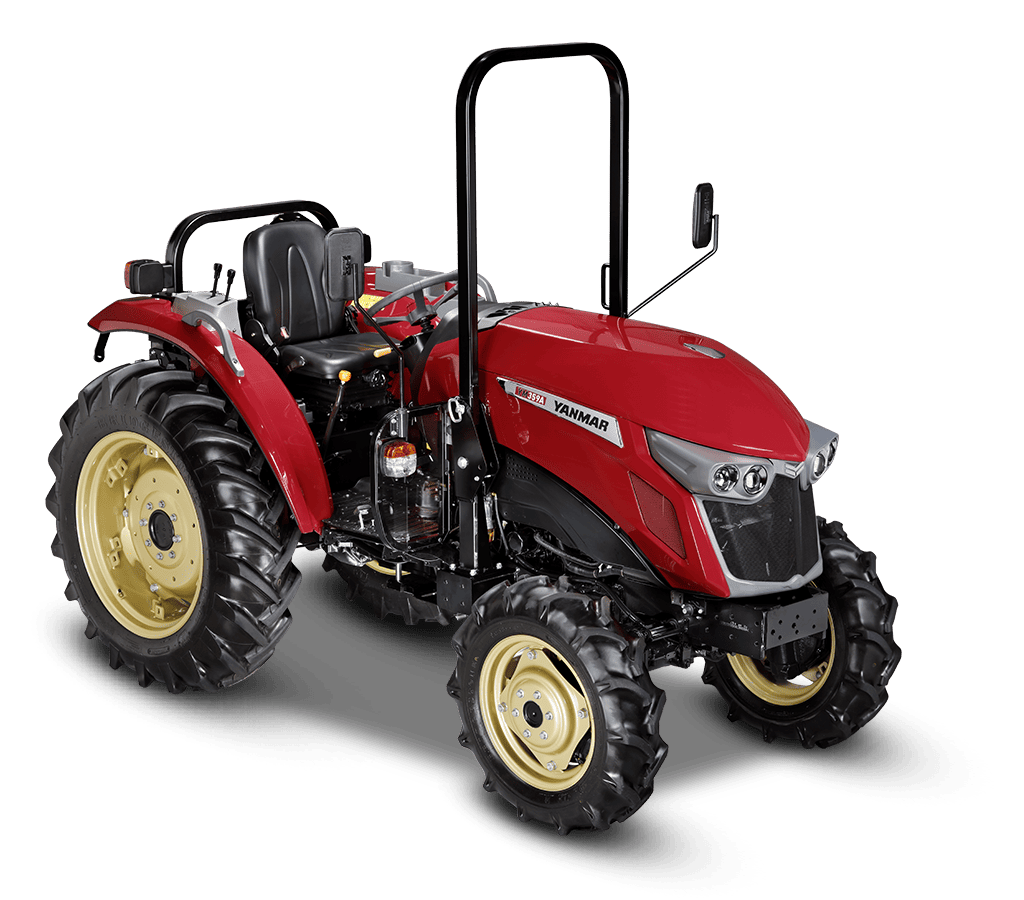

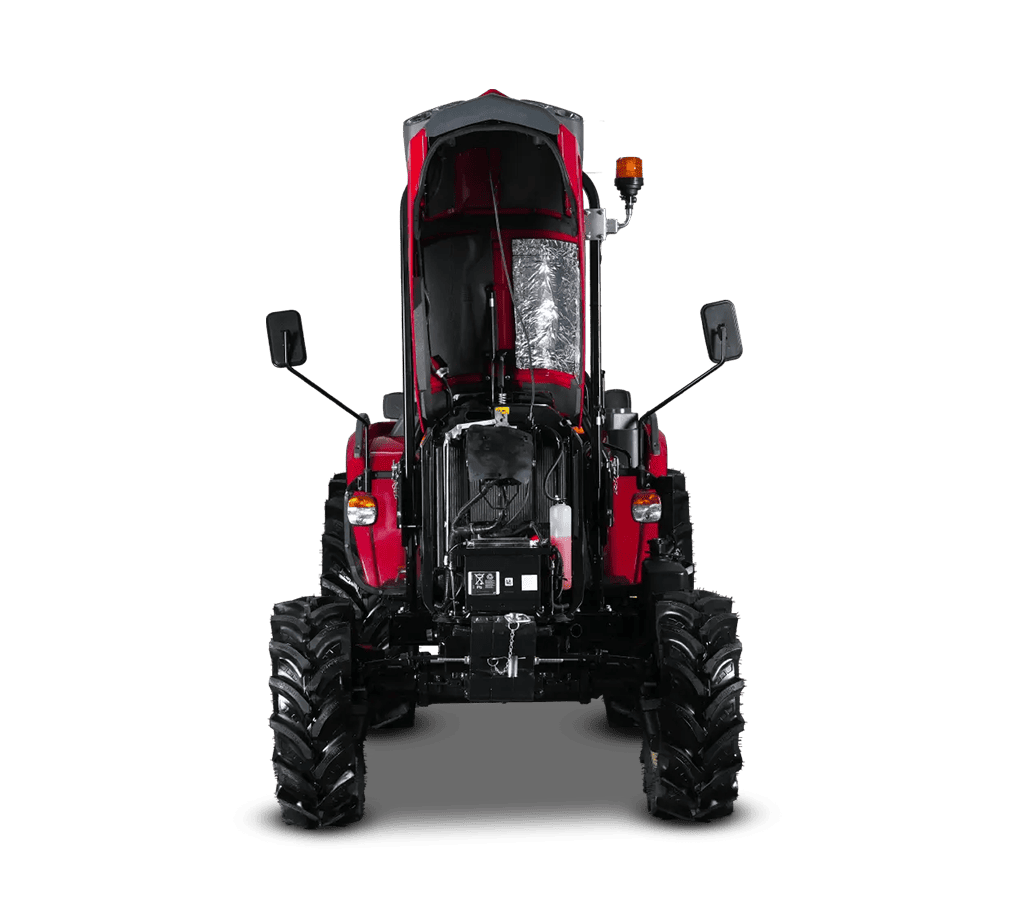

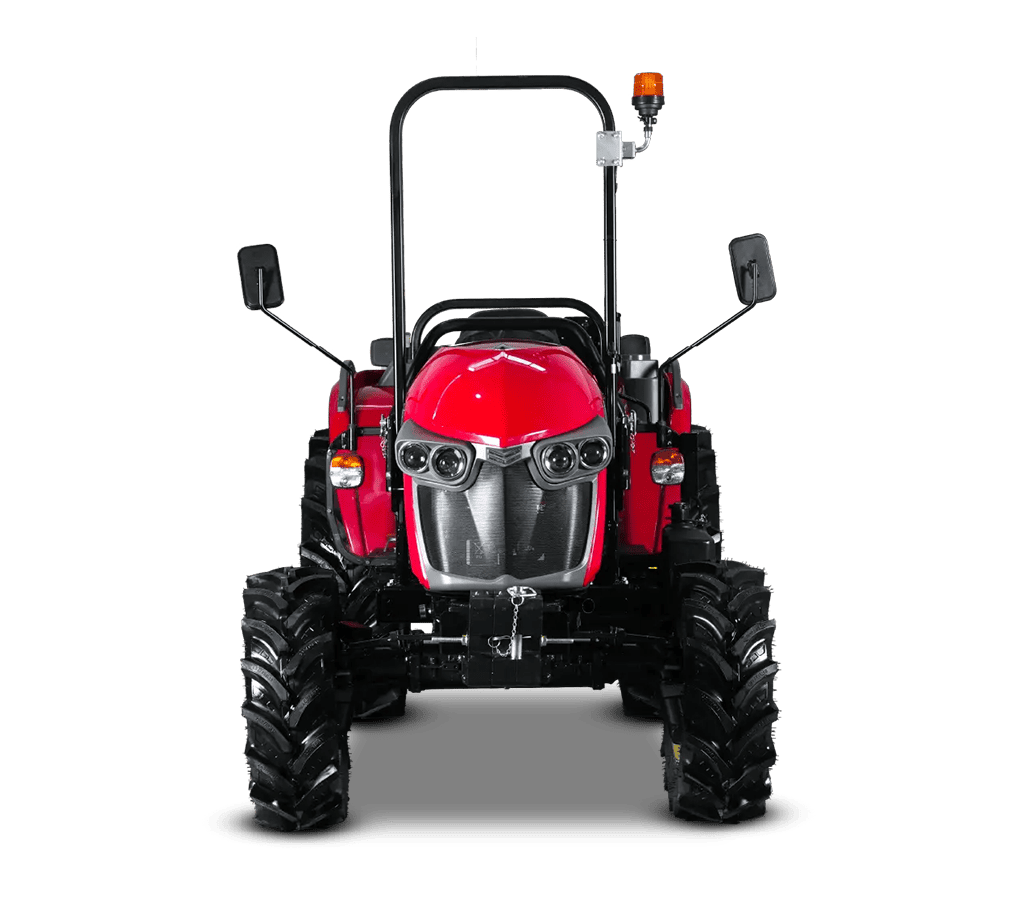

Yanmar YM359-R is a high-horsepower, high-performance tractor that combines strength with smart farming. Powered by a 59 HP TNV Stage V engine and a fully synchronized 12×12 transmission, it’s designed to meet future farming needs while ensuring operator comfort and efficient fuel usage. Its narrow body (1.2 m) and foldable ROPS make it ideal for navigating orchards, vineyards, and tight farm lanes without compromising power or safety.
Engine Power (HP)
59.7
Transmission Type
Mechanical full Synchronized
Warranty
5 Year Warranty
Tough Features for Tougher Fields.
Step into the future of farming with advanced tractor features engineered for performance. Every detail is designed to boost productivity, from ergonomic design and high lifting capacity to superior fuel efficiency and intuitive controls.
59 HP Stage V TNV Engine
Delivers optimal power with lower emissions and reduced fuel consumption.
Fully Synchronized 12x12 Transmission
Provides seamless shifting across all speeds and terrain types.
Foldable ROPS
Ensures safety without limiting accessibility in low-clearance zones.
Smart Telematics Integration
Future-ready tech for remote tracking, diagnostics, and operational efficiency.

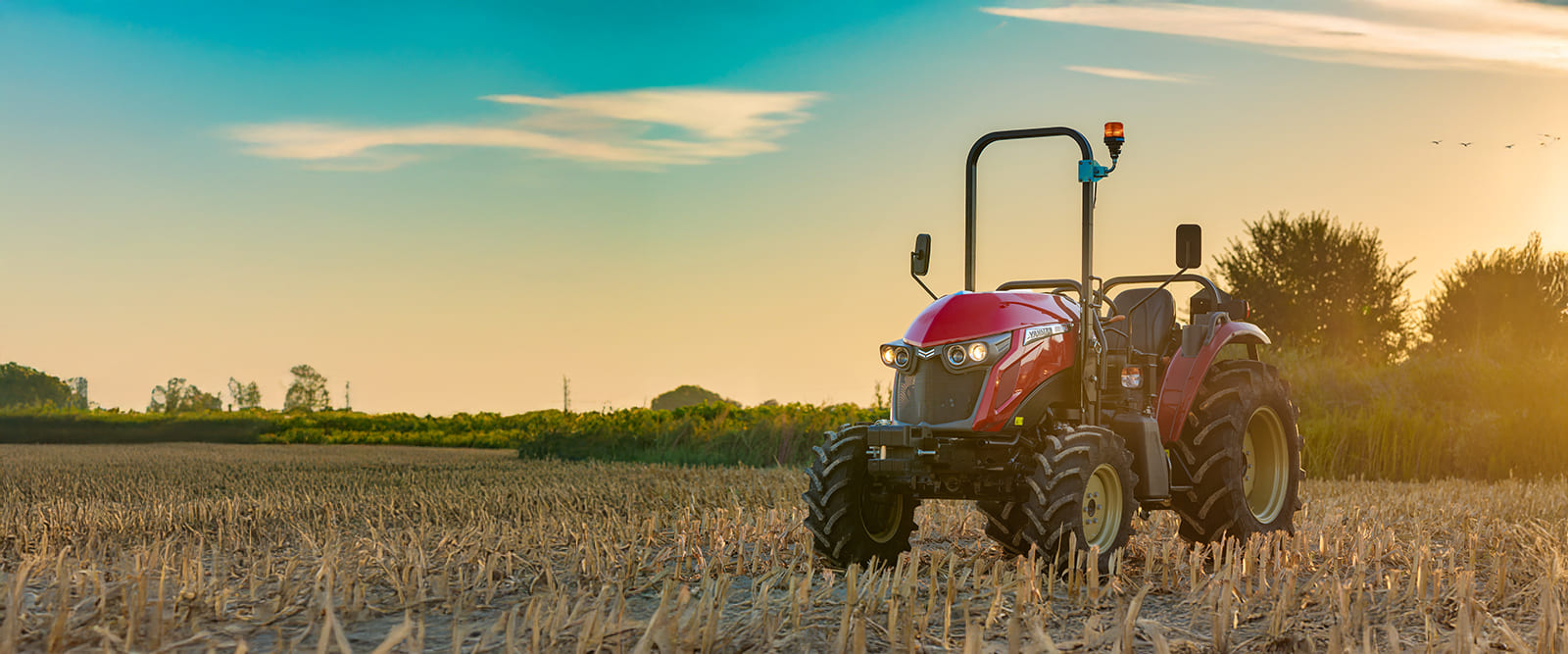

Built for Every Field
Our tractors are engineered to tackle a wide spectrum of agricultural applications, from land preparation and sowing to harvesting and haulage. With powerful engines, high lifting capacities and smooth transmissions, they adapt seamlessly to every field condition and farming need.
Smarter Farming Starts Here
Discover how Yanmar tractors achieve unmatched performance across any terrain. Click below to download the leaflet and explore the full range, features and advantages.
Advanced Technology for Superior Farming
Yanmar tractors are known for being robustly built and powered by Japanese technology. Using strong engines, precise hydraulics, and improved transmission guarantees that all parts work efficiently and for a longer period. By using innovation, you get to have improved operations, less fuel use, and machines that are built to serve you longer.
| ENGINE | Unit | Value |
| Engine name | 4TNV98C | |
| Engine power (unec reg. No 120) | kW | 43,9 |
| Engine power | hp | 59,7 |
| Number of cylinders | 4 | |
| Size of engine | ccm | 3. 319 |
| Torque | Nm | 205, 0 |
| Engine speed | 1/min | 2. 500 |
| Alternator | a | 12V/55 |
| Battery | ah | 12V/70 |
| Transmission type | Mechanical full synchronized | |
| Brake system | Multiple wet brake disk | |
| Drive | Selectable 4WD | |
| Differential lock | Yes | |
| Turning circle (inner radius) | mm | Left: 4. 720 / Right: 4. 760 |
| Number of ranges | 12F+12R (incl. creep) | |
| Max. Speed (highest gear) | km/h | 25, 9 |
| Towing capacity – not braked | kg | 3. 000 |
| Towing capacity – braked | kg | 6. 000 |
| Front axle load max. | kg | 1. 600 |
| Rear axle load max. | kg | 2. 800 |
| Max. Allowed weight | kg | 3. 660 |
| PTO power rear | kW | 34, 0 |
| Rear PTO speed | 1/min | 540 / 750 RPM@2430 min⁻¹ |
| Rear-PTO | Type | 1 3/8, 6 splines |
| Mid. PTO speed | 1/min | NA |
| Front-PTO speed | 1/min | NA |
| Front-PTO: 2000 1/min, 1 15 splines | NA (After market) | |
| Fuel tank capacity | | | 48 |
| Hydraulic oil tank capacity | | | 29 |
| Steering system | Hydraulic powered | |
| Capacity hydro pump | 1/min | 38,5 |
| Steering pump | 1/min | 21,5 |
| Pump for hydraulics | 1/min | 17, 0 |
| Hydraulic pressure | bar | 167 |
| Hydraulic connectors | nm | 2 Sets |
| Rear | kg | 1. 430 |
| 61 cm behind lift point – Rear | kg | 1. 250 |
| Front | kg | NA |
| 61 cm behind lift point – Front | kg | NA |
| Total length | mm | 3. 715 |
| Total width | mm | 1. 420 – 1. 723 [] |
| Ground clearance | mm | Min. 227 – Max. 336 |
| Wheel base | mm | 1. 970 |
| Industrial wheel set fr size [] | inch | – |
| Agri wheel set fr size [] | inch | FT: R1, 280/70R16 (Radial Wide High) RT: R1, 380/70R24 (Radial Wide High) |
| Height | mm | 2. 380 |
| Weight | kg | 2. 085 |
| Midmower m60, width | m | NA |
| Midmower cutting width | cm | NA |

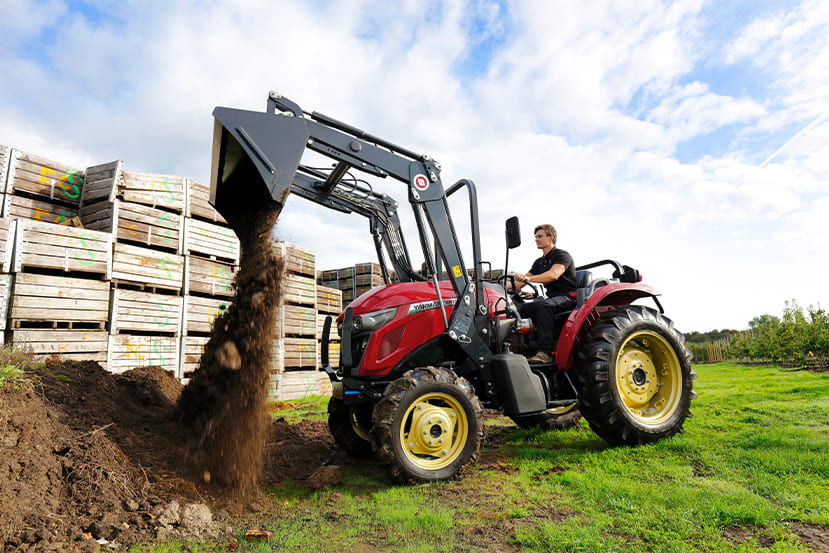

Front End Loader
Front-End Loader is an excellent attachment for easily picking, transporting, and loading materials such as soil, sand, gravel, etc. Its rugged work and smooth functioning across versatile operations increase efficiency in construction operations, farming and related activities such as landscaping.
Back Hoe
Back Hoe is a mounting system that is very effective when digging trenches or excavating. It is specifically suitable for construction, landscaping and agriculture work, providing good reach and digging depth. Due to its powerful hydraulics, the backhoe allows for effective work in terms of the type of soil and this can be attributed to the instruments necessary for demanding work.
