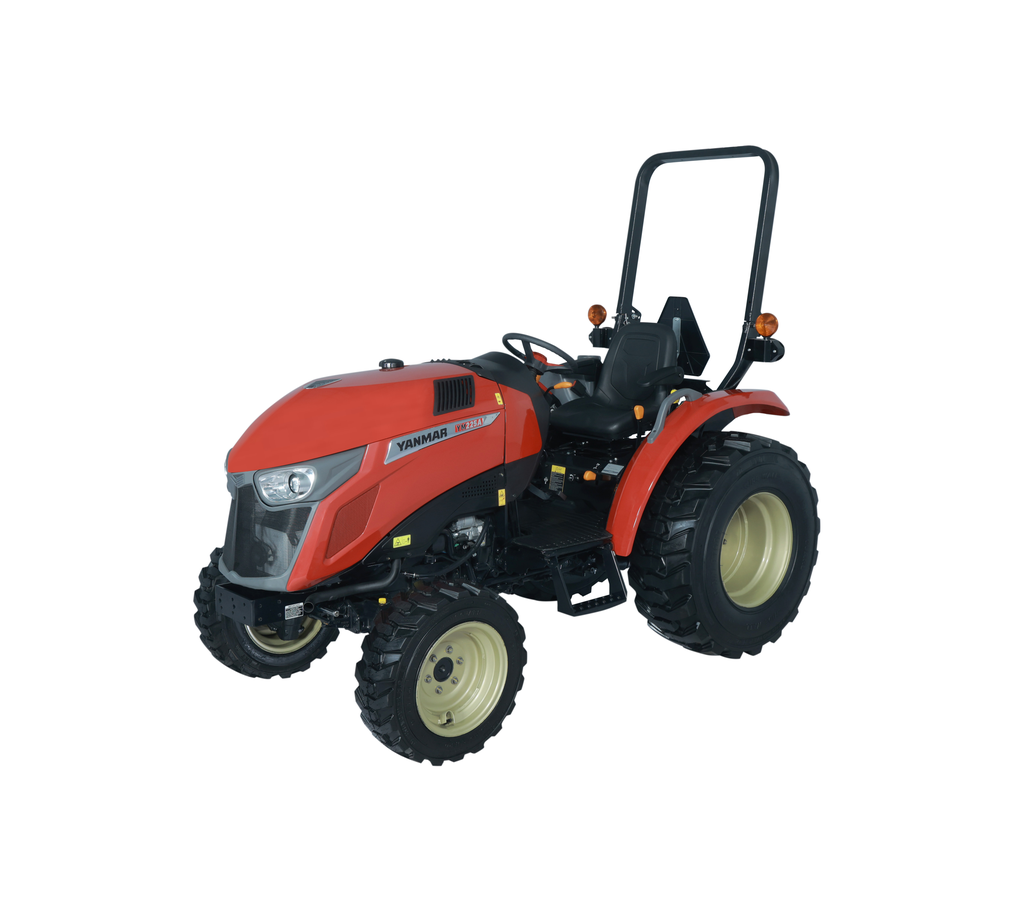

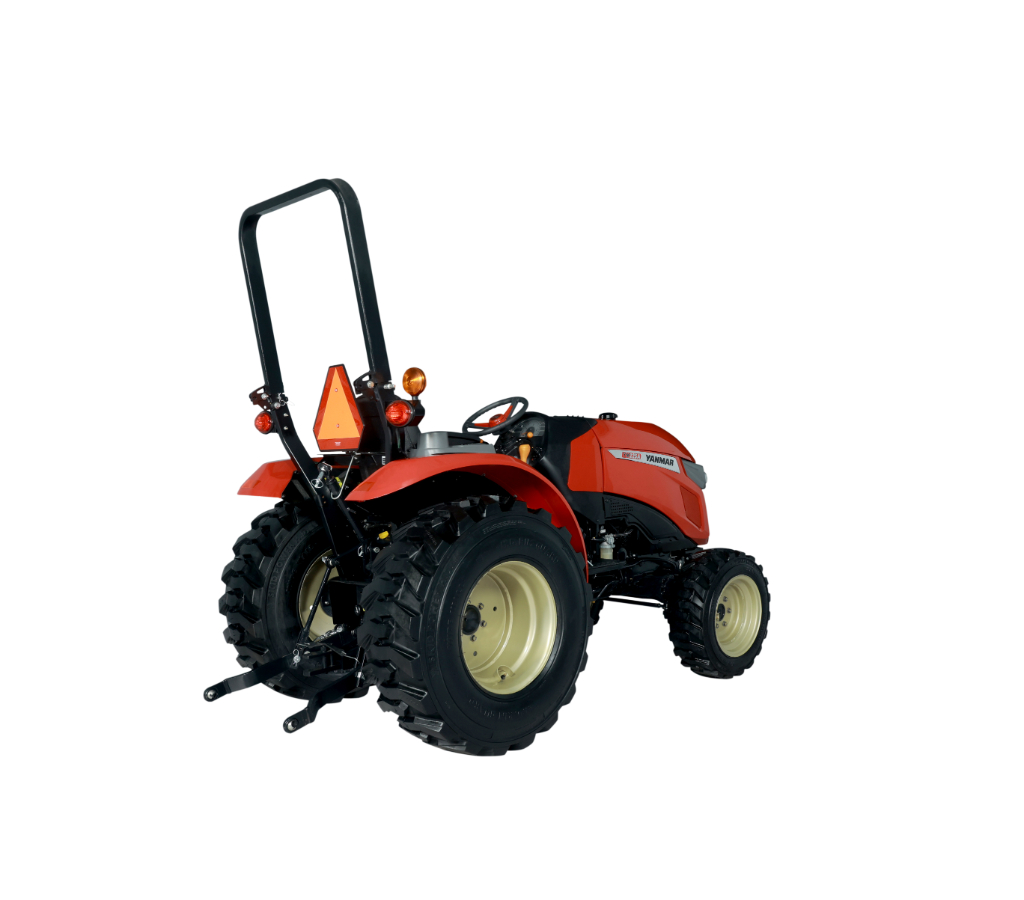

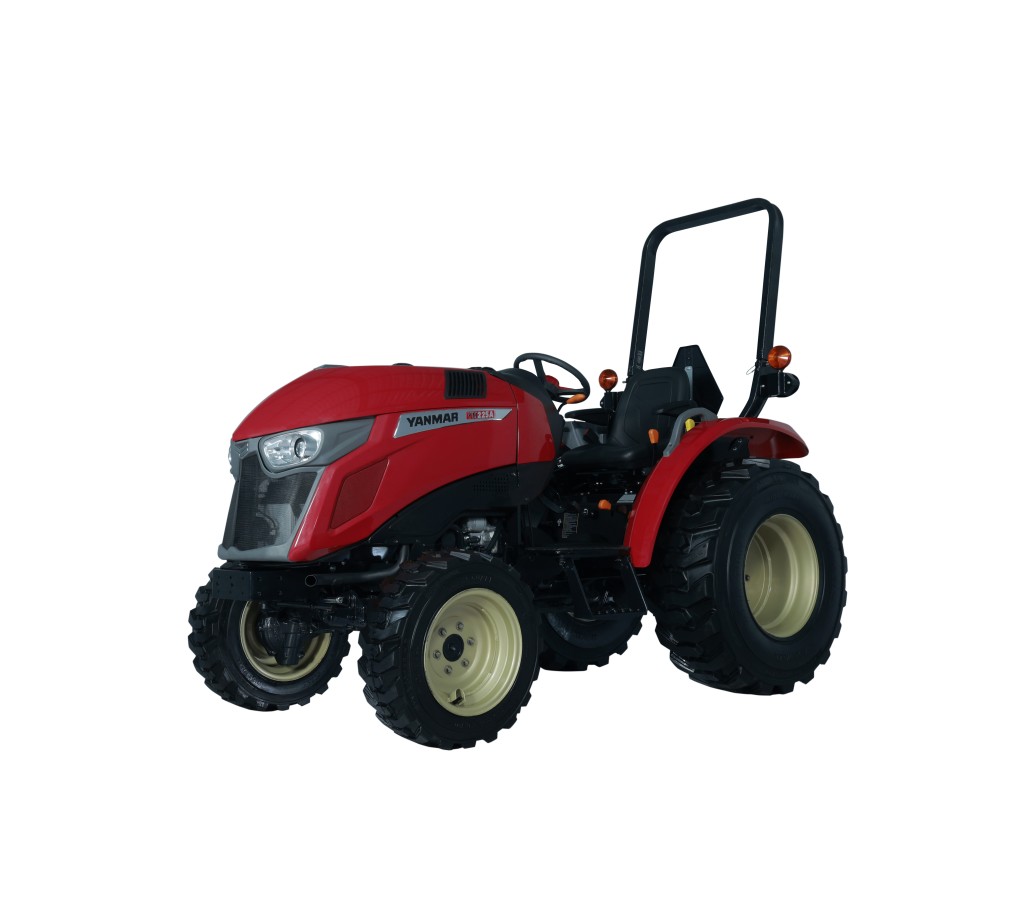

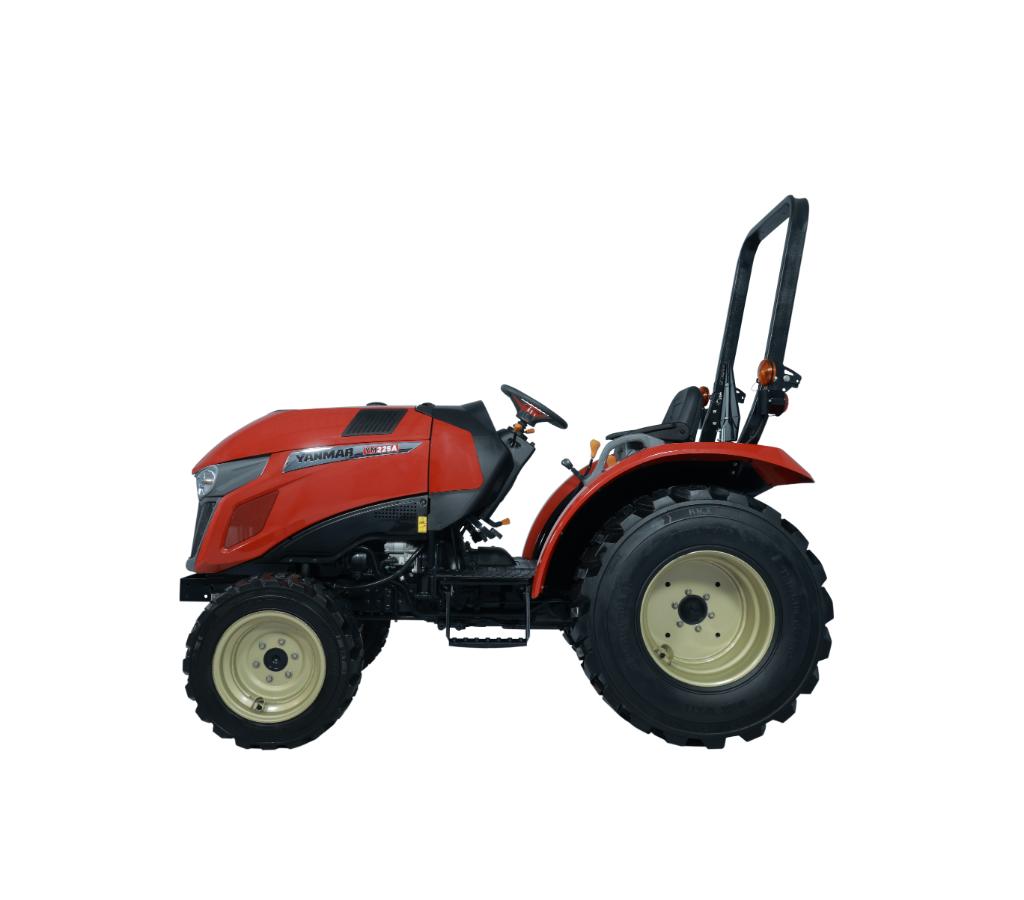

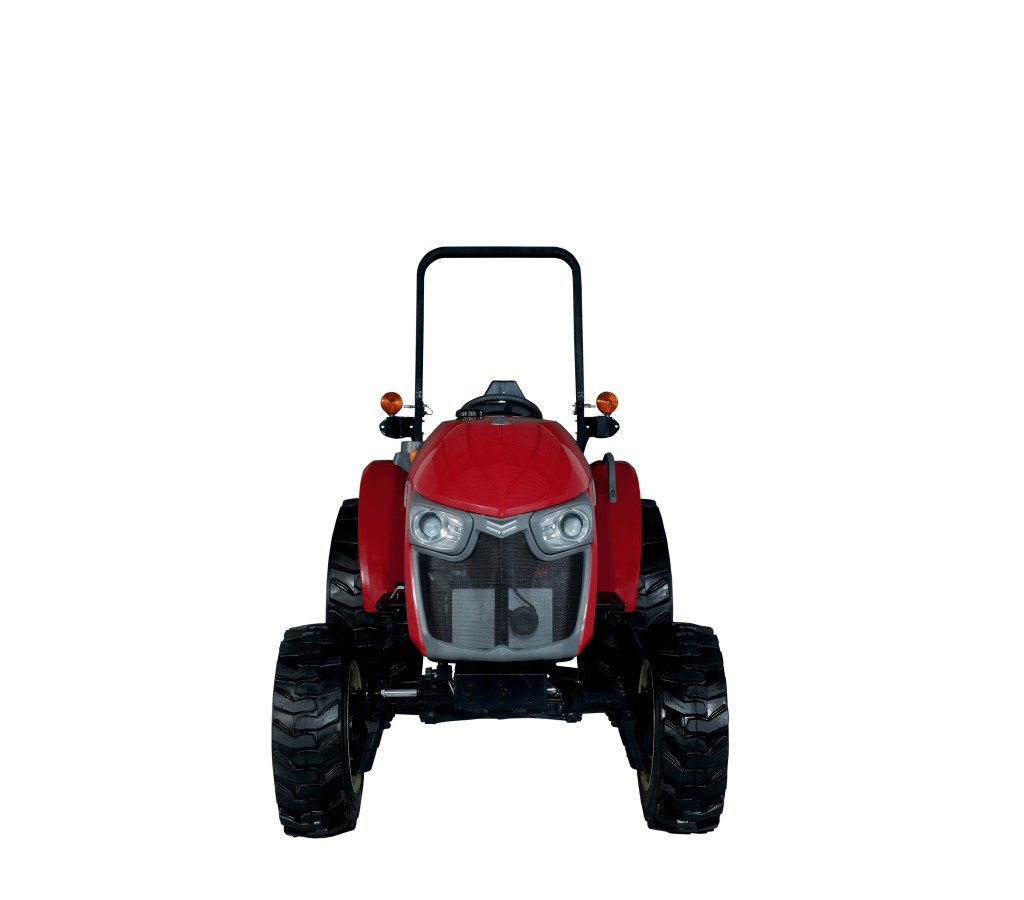

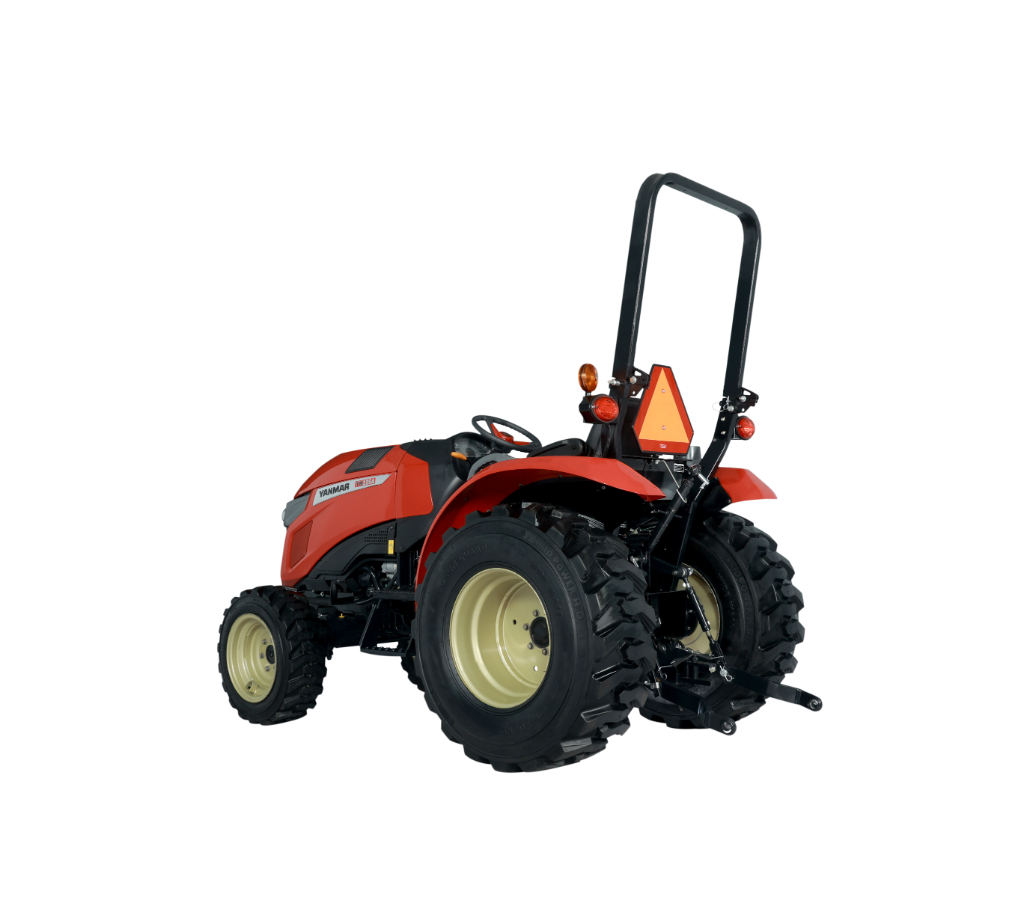

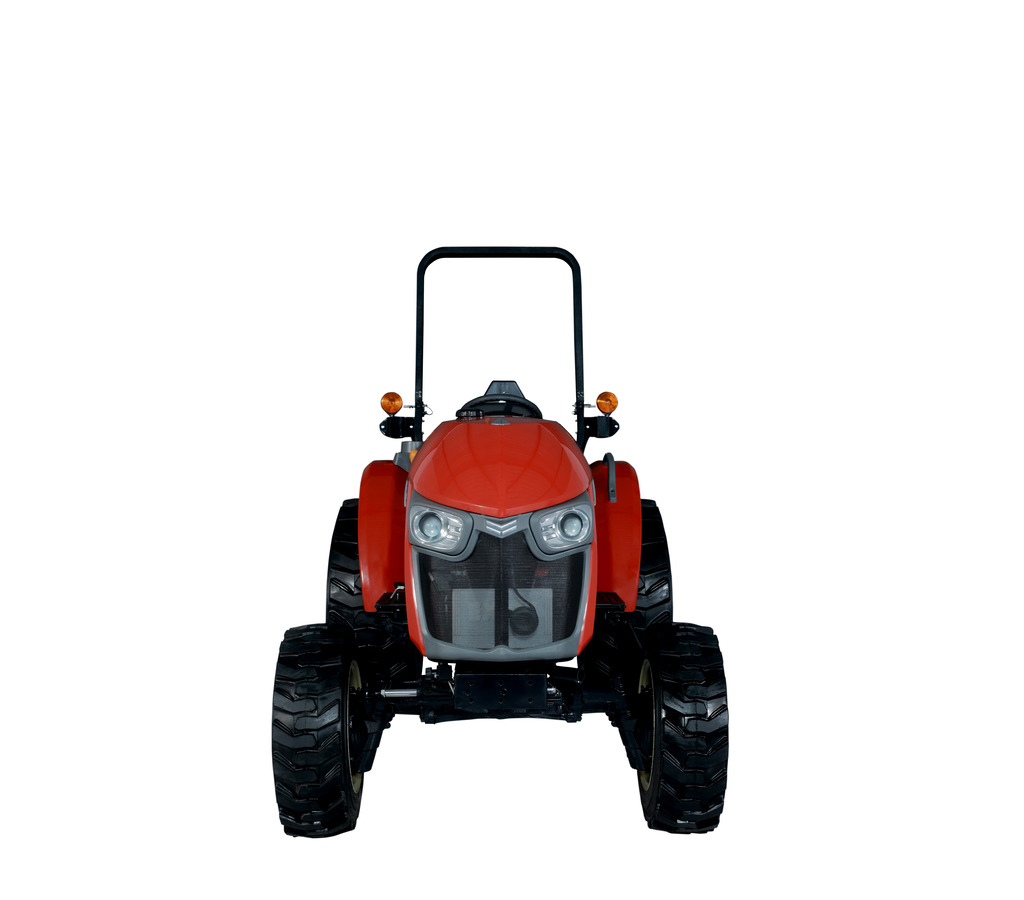

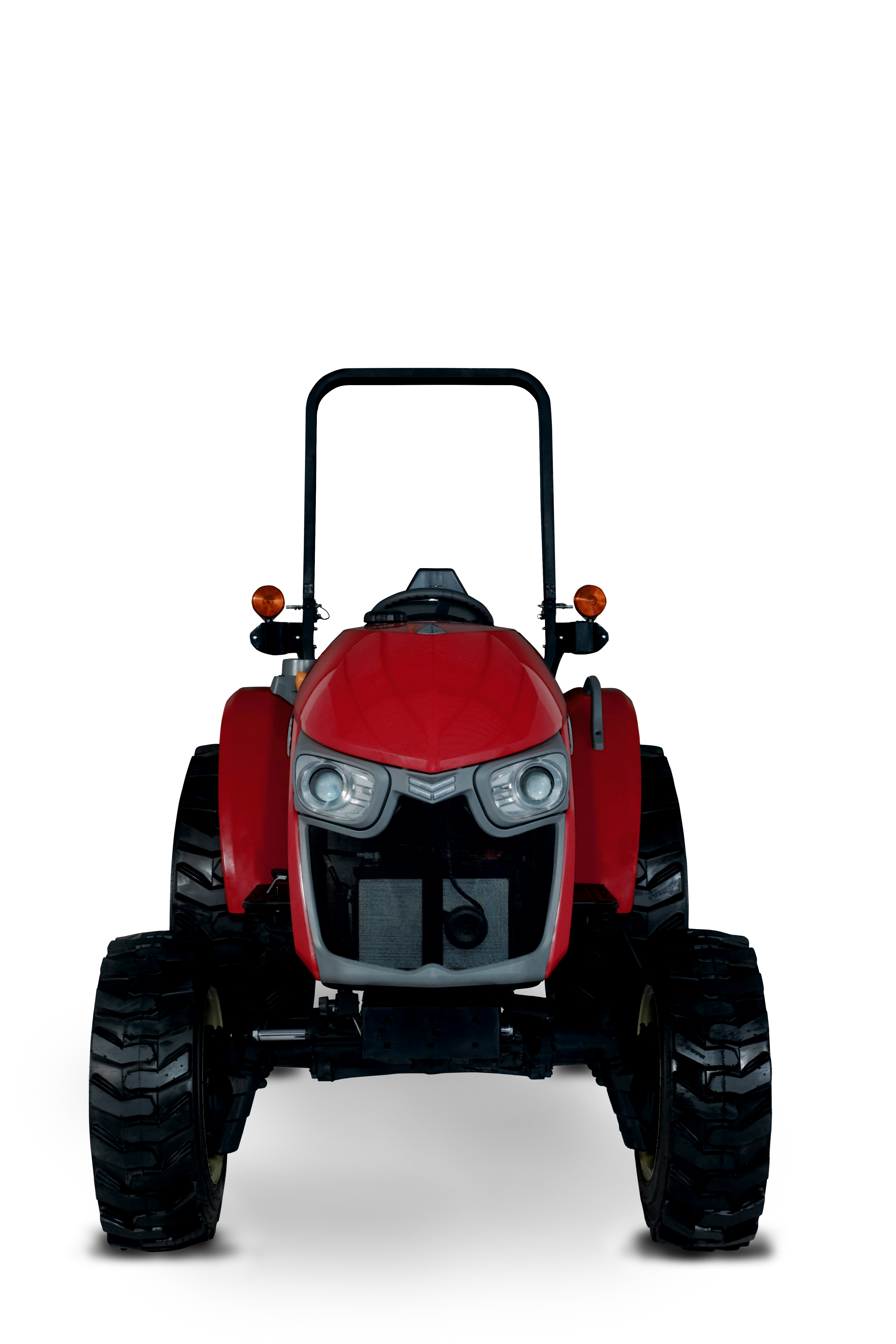

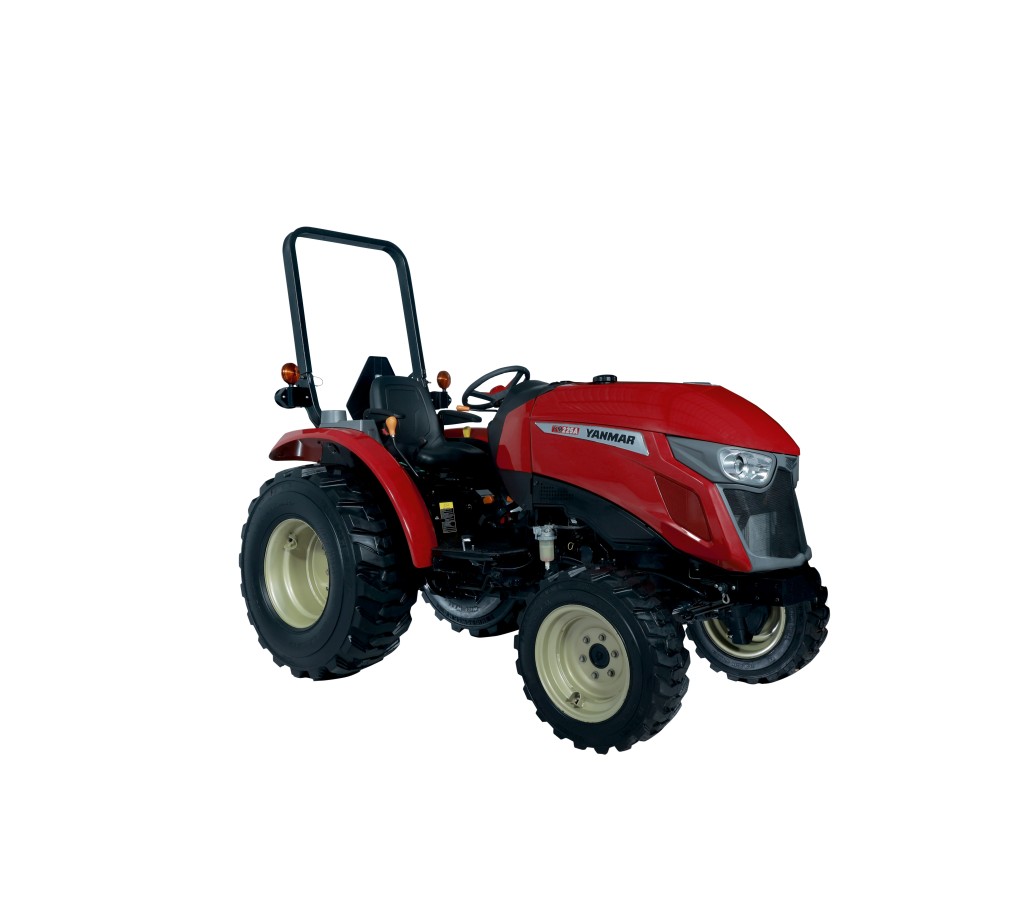

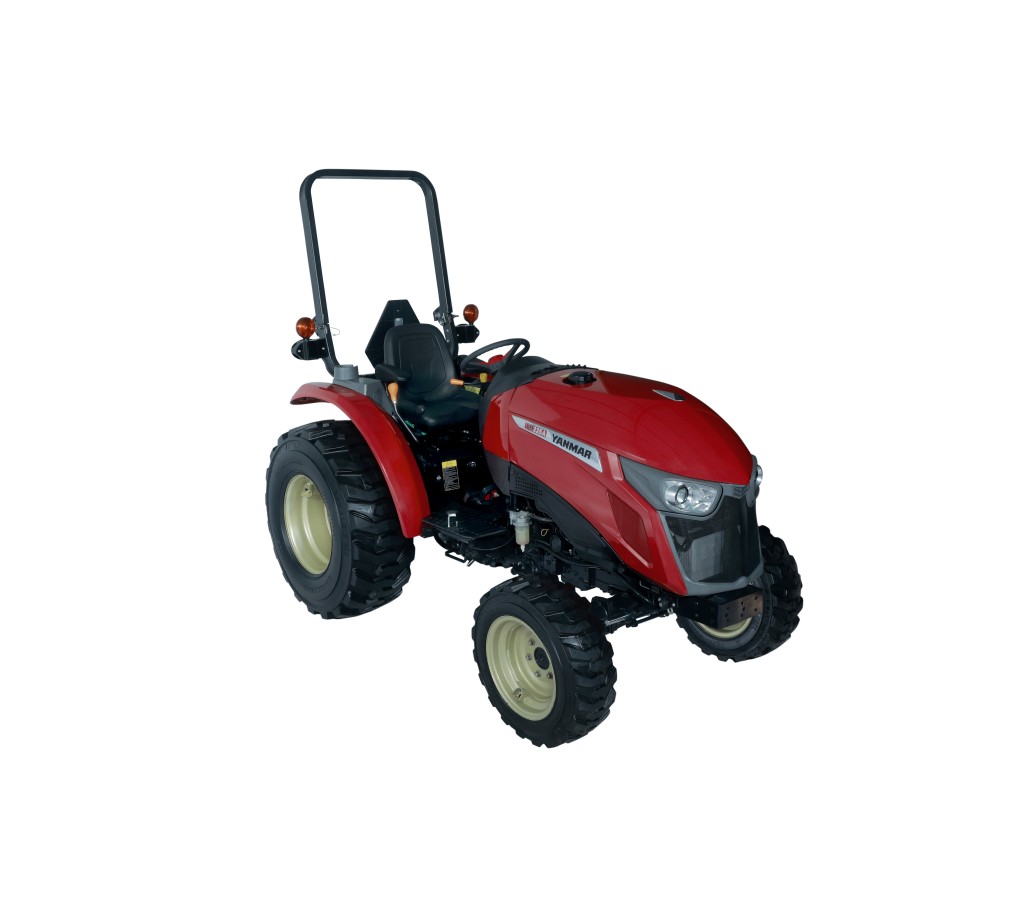

YM225

The Yanmar YM225 sets new standards in the compact tractor range. Propelled by a highly reliable 24.4-HP naturally aspirated diesel engine, this model mixes agility, fuel efficiency & a 1,500-lb loader lift capacity. The result of these impressive specifications is high efficiency, laudable capabilities on agricultural applications & best-in-class durability for landowners managing 25-45 acres.

Model Overview

Promising Performance Meets Compact Dimensions

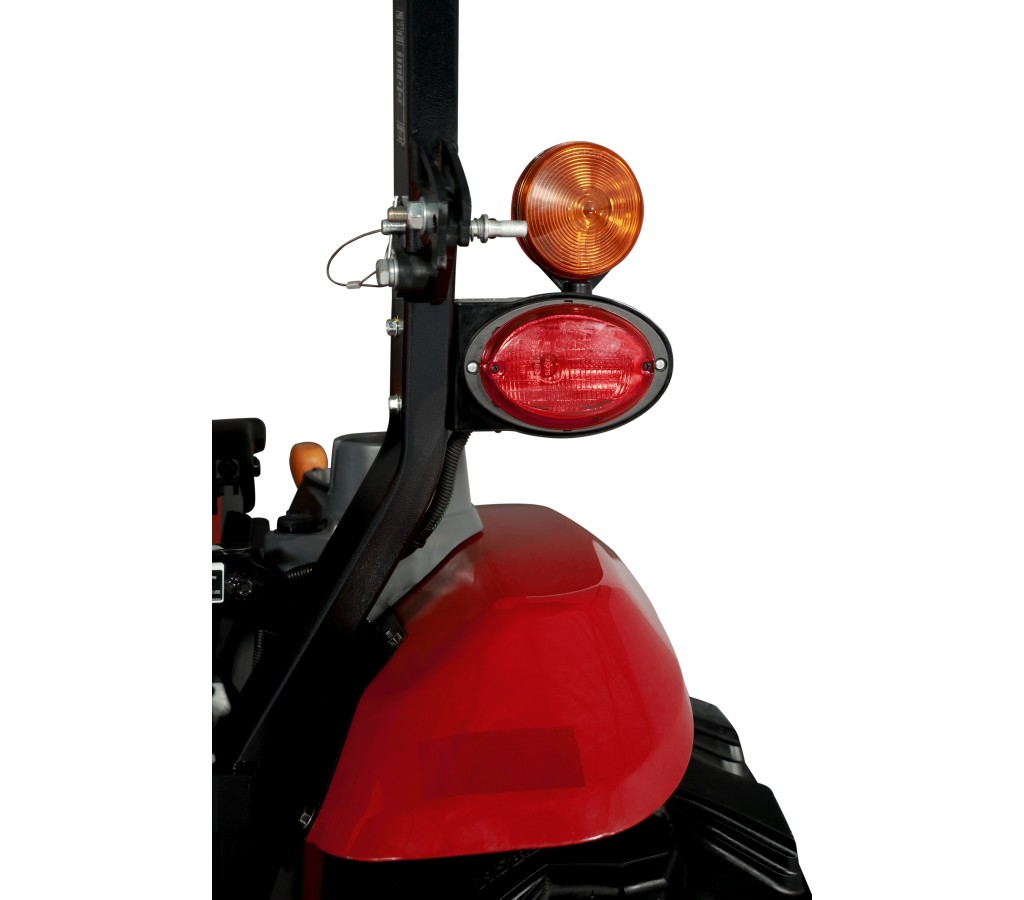

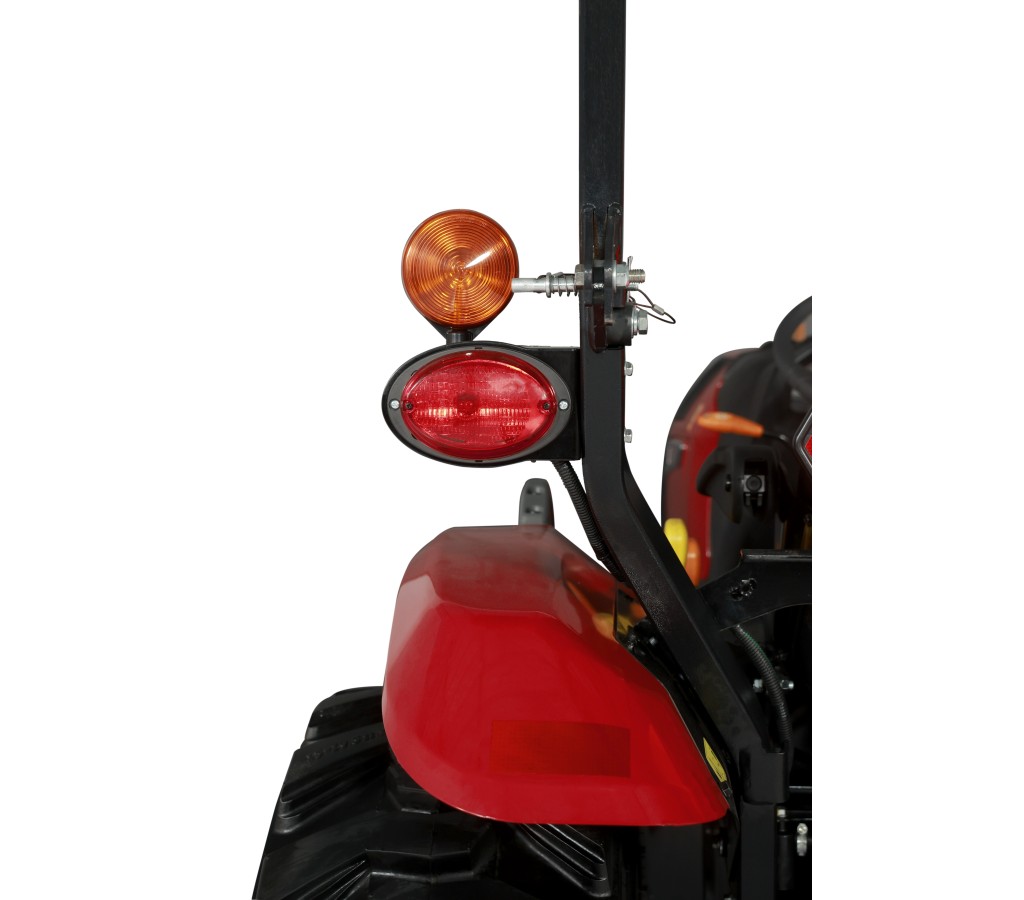

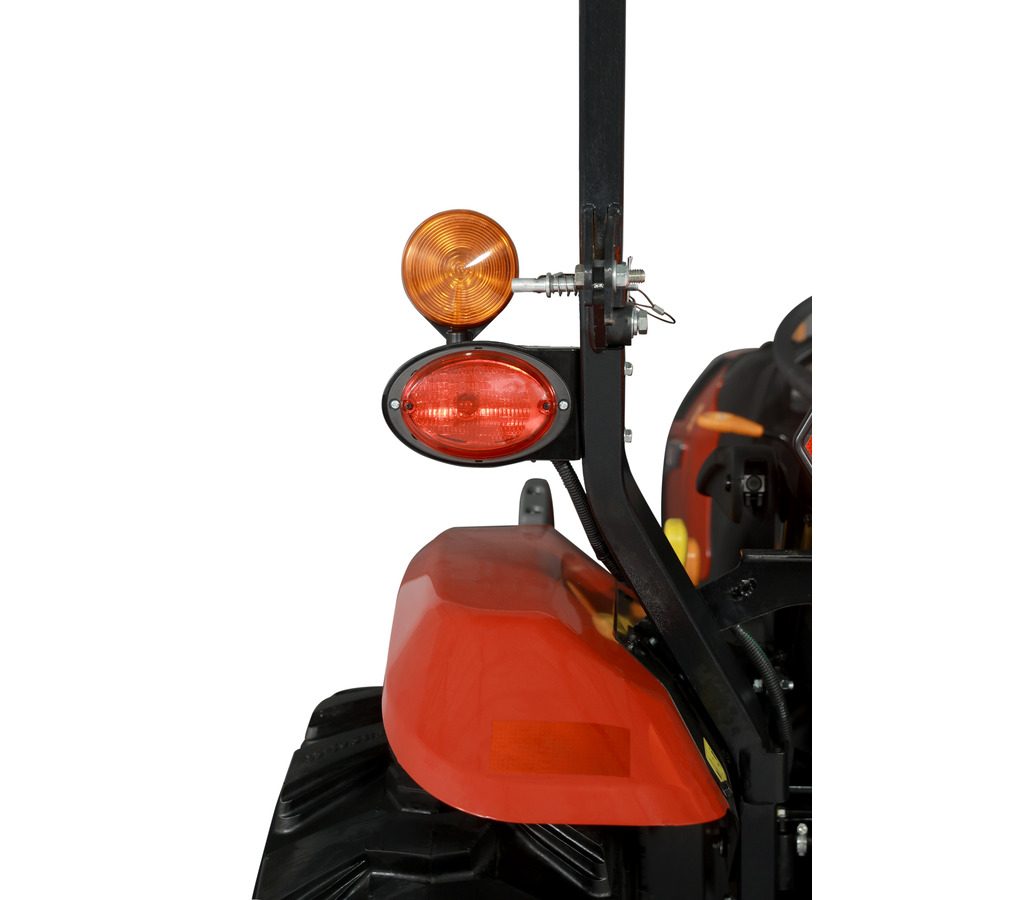

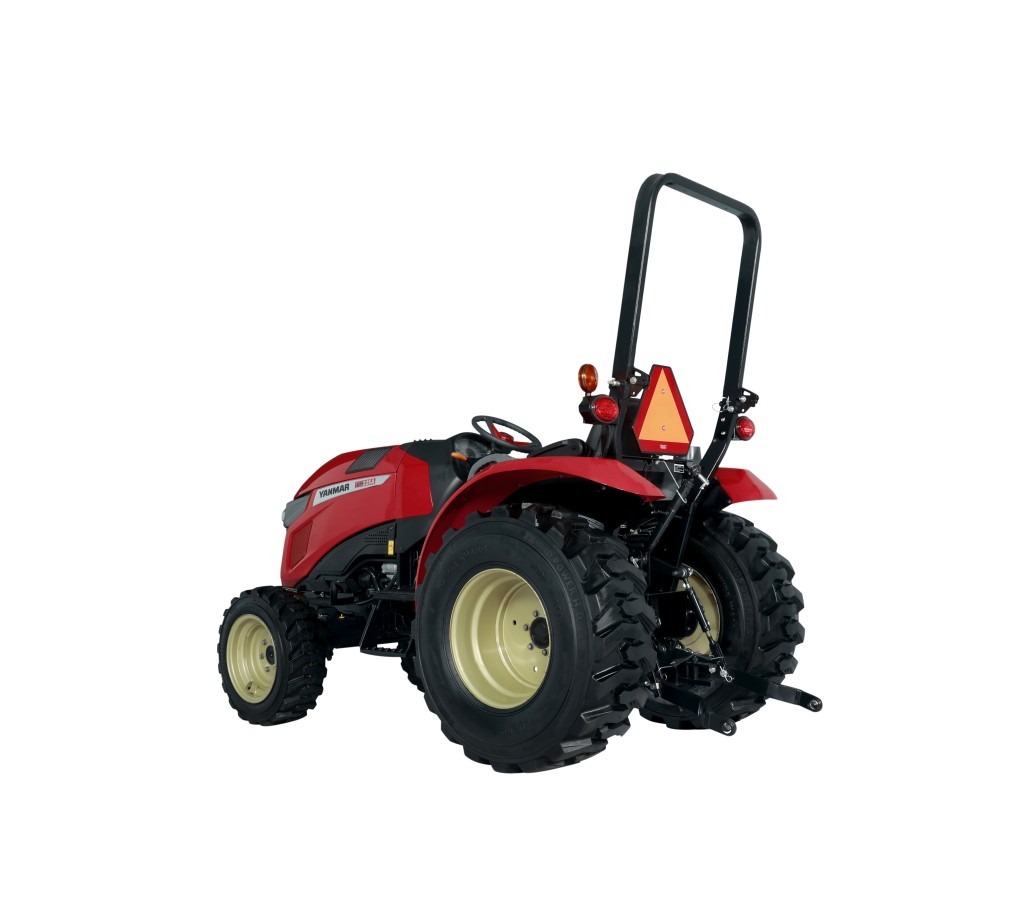

The YM225 proves that you don’t need a massive tractor to get colossal power. This model bridges the gap between sub-compact manoeuvrability and high structural strength for working on challenging farming applications. Fitted with a Synchronized Reverser Transmission (SRT) & a rugged 4WD drivetrain system, the YM225 can effortlessly perform heavy lifting & tough tilling jobs, while offering class-leading fuel efficiency. This model also features a rear ROPS cabin for extra safety & lights for better visibility.

Engine Power (HP)

24.4

Transmission Type

Synchronized Reverser Type (SRT)

Warranty

24 Months or 2,000 Hours (for non-commercial, home & residential use only)

Field-Tested Capabilities In A Compact Package

The Yanmar YM225 brings Japanese reliability into compact tractors for exceptional performance & durability. With a powerful engine, advanced transmission, modern safety features & a compact body, this tractor redefines the concept of agriculture tractors.

Unmatched Lift Prowess

With a 1,500-lb lift capacity, the YM225 is designed to handle bulky loads without shedding a drop of sweat & outperform its competitors.

Syncronized Reverser Transmission

An SRT gearbox allows operators to change direction from forward to reverse without halting, which helps with easier loading & smoother operation.

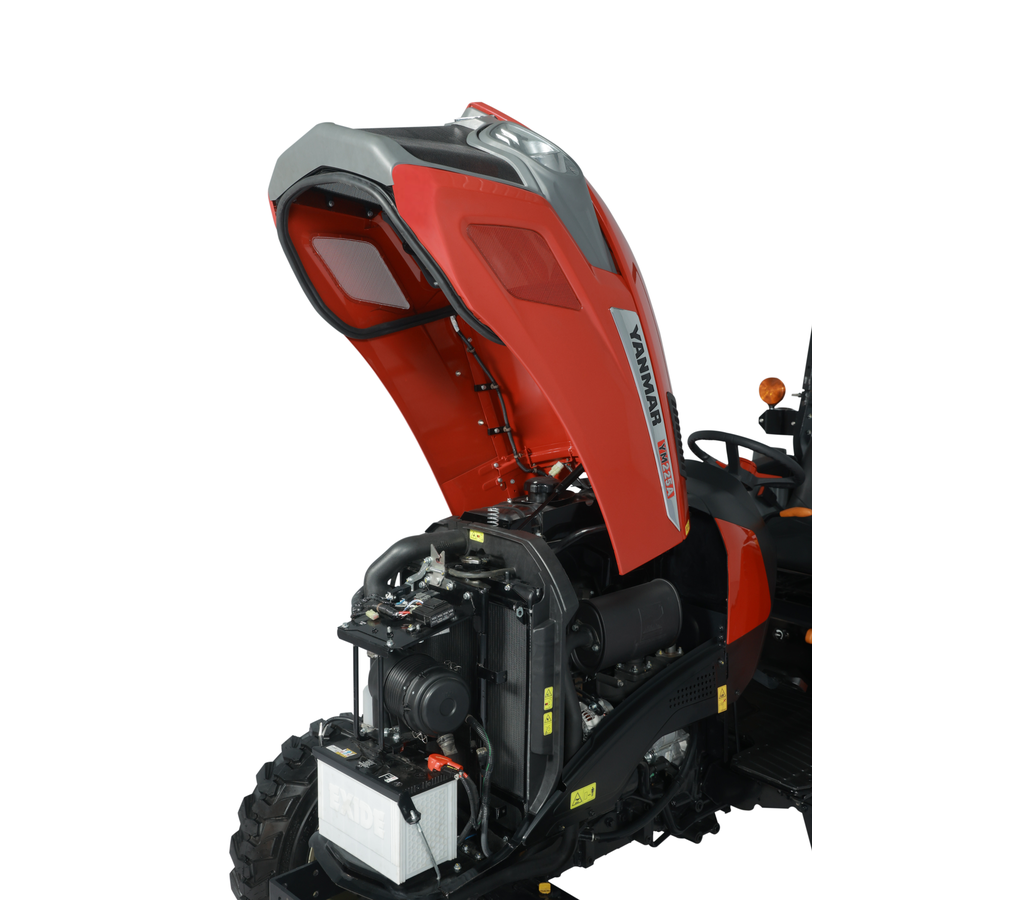

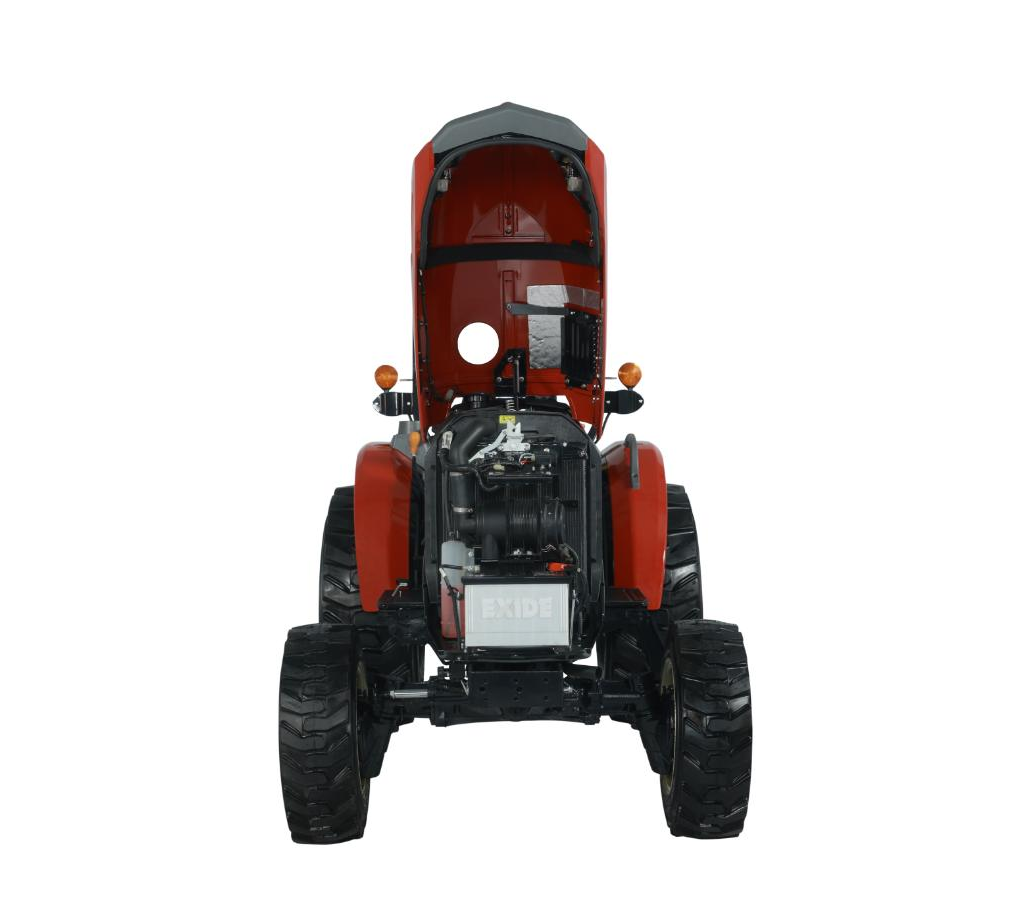

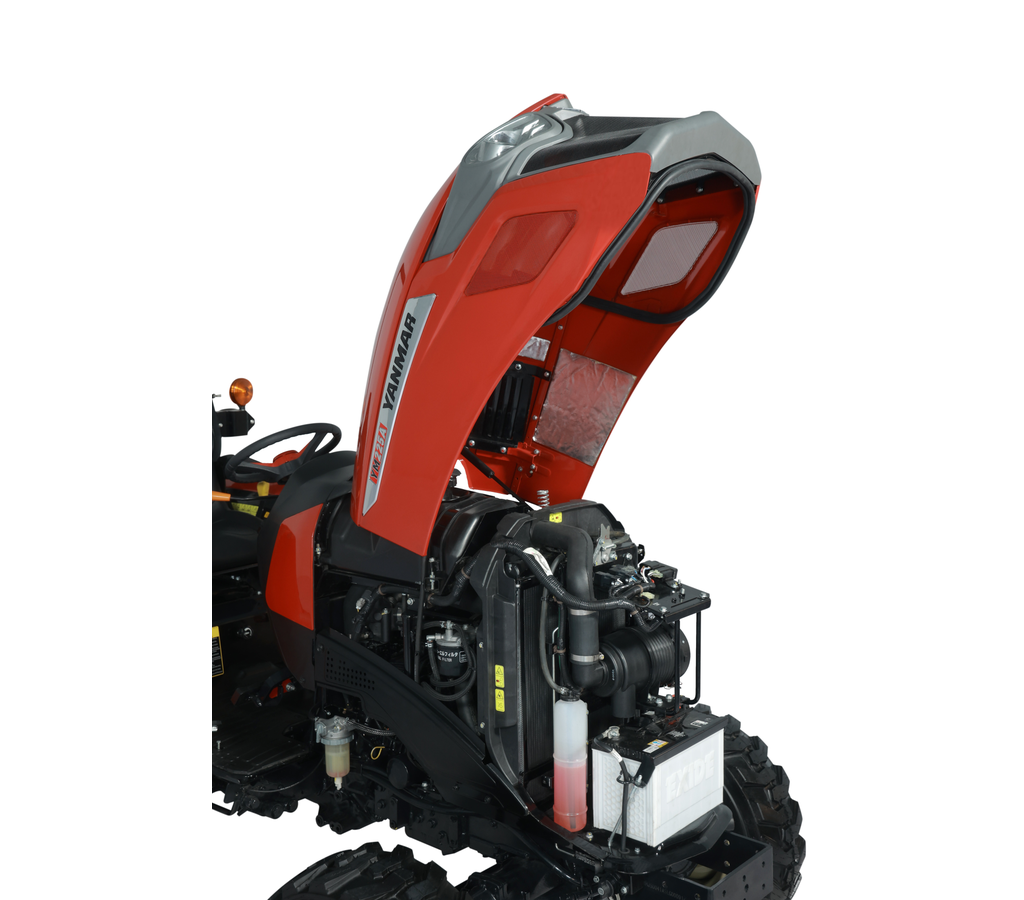

Naturally Aspirated Diesel Engine

Underneath, the YM225 gets a 24.4-HP diesel engine, which is designed to churn 18.5 HP PTO power at just 2,400 rpm, meaning peak power delivery at lower diesel usage.

Advanced Drivetrain For Superior Grip

Thanks to the cutting-edge drivetrain system, which allows operators to switch between 2WD & 4WD systems, based on requirements.

One Tractor; Countless Possibilities

The YM225 is engineered to work on a plethora of agricultural applications, ranging from land preparation to seed sowing & material handling with implements. Leveraging powerful hydraulics, high lift capacity & a cutting-edge SRT gearbox, this tractor not only just meets your needs but adapts to dynamic working conditions, making it ideal for smallholdings, orchards, etc.

Transform Your Farm With Yanmar Engineering

Yanmar tractors like the YM225 are built using world-class Japanese technology & industry-leading expertise. Reliable & powerful diesel engines, capable hydraulics, advanced transmission & durable drivetrains guarantee that all components combine to provide the best results year after year for enhanced performance & profitability. Via continuous innovation, improved efficiency, & a rear ROPS cabin, the YM225 provides the best value for money in its sector.

Download Brochure

Buy The YM225 Today!

Don’t just take our word about the impressive capabilities of the YM225; experience the prowess of the class-leader. Whether it’s high flow rates, or top-notch performance, extreme grip for farming applications & promising after-sales service, this machine can last for generations. Click below to learn more about the YM225 specs.

ENGINE	Unit	Value
Engine Gross Power	HP	24.4
Engine Gross Power	kW	18.2
Engine PTO Power	HP	18.5
Engine PTO Power	kW	13.8
Rated Engine Speed	RPM	2,400
Rear PTO Speed	RPM	540

Transmission type		Syncronized Reverser Transmission (SRT)
2WD/4WD Engagement		Selectable
Rear Differential Lock		Foot Pedal Engagement
Turning circle (inner radius)	mm	3,100
Clutch		Dry Single Plate
PTO Type		Transmission Driven with Overrunning Clutch
Fuel tank capacity	Litres	40

Steering system		Hydraulic powered
Steering Pump Capacity	L/min	14.5
Implement Pump Capacity	L/min	23.8

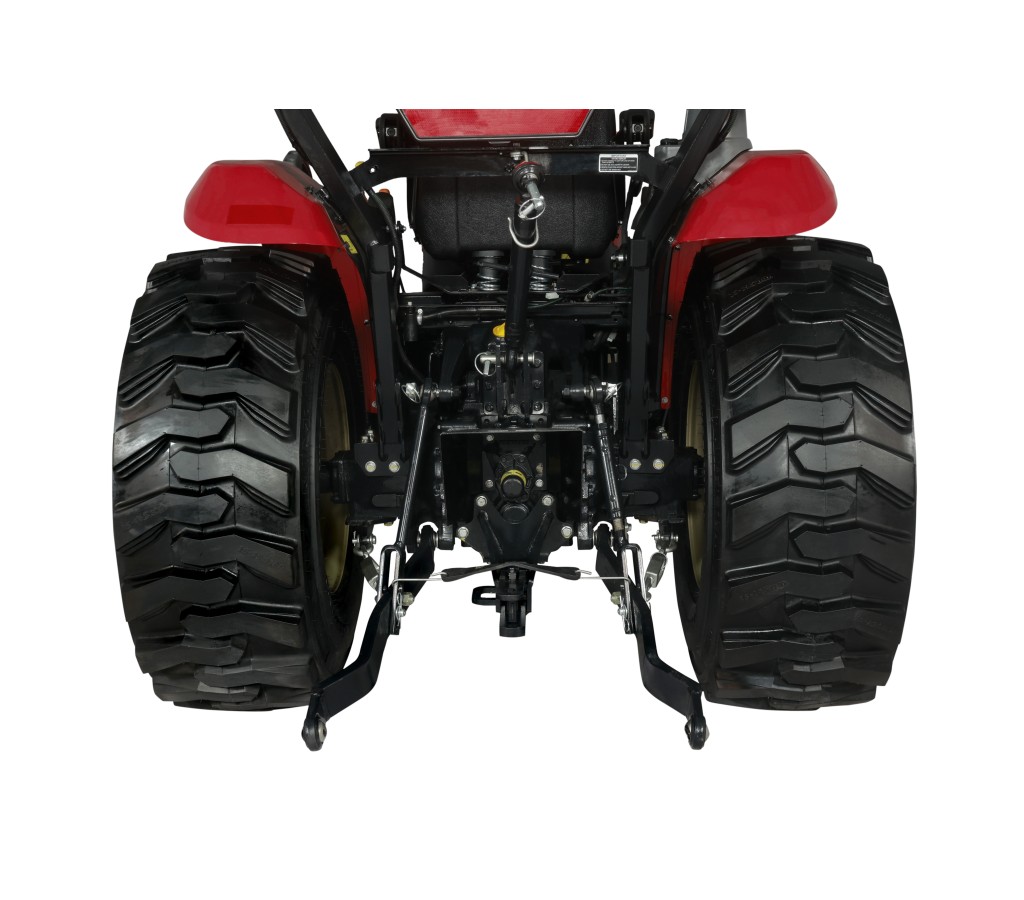

3-Point Hitch		Category 1
3-Point Lift Capacity (Standard)	kgf	1,000
3-Point Lift Capacity at 61 cm	kgf	730
Remote Valve		Optional
3rd Function Valve		Optional

Total length	mm	2,959
Total width	mm	1,360
Height	mm	2,200
Wheel base	mm	1,650
Ground clearance	mm	350
Track settings (front)	mm	1,071 ±15 (Tyre 7.00-16)
Track setting (rear)	mm	1,080 ±15 (Tyre 11.2-24)
Weight	kg	1290
Min turning radius with brakes	m	3.1

Agricultural Bias	inch	7×16; 11.2×24
Agricultural Radial	inch	200/70 R16 & 320/70 R20
Industrial	inch	27*8.5-15 & 380/70-19.5
Turf	inch	25*8.5-14 & 345/80-16
