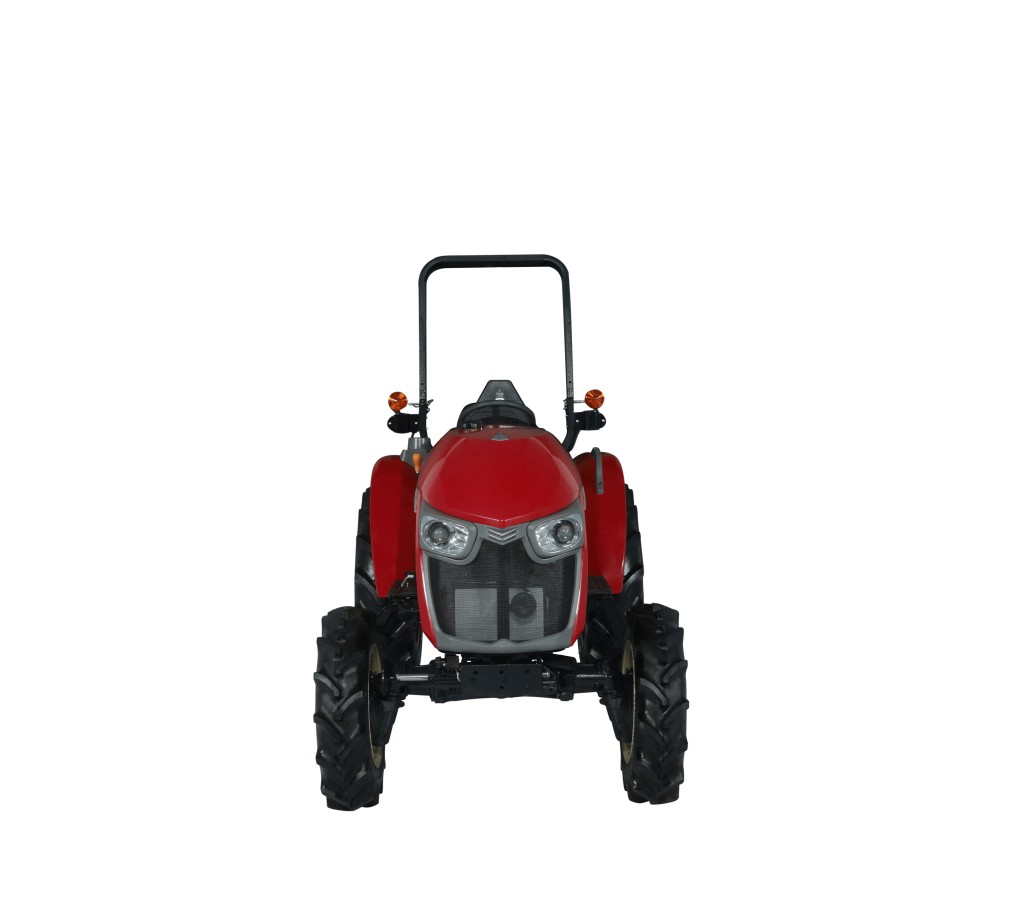

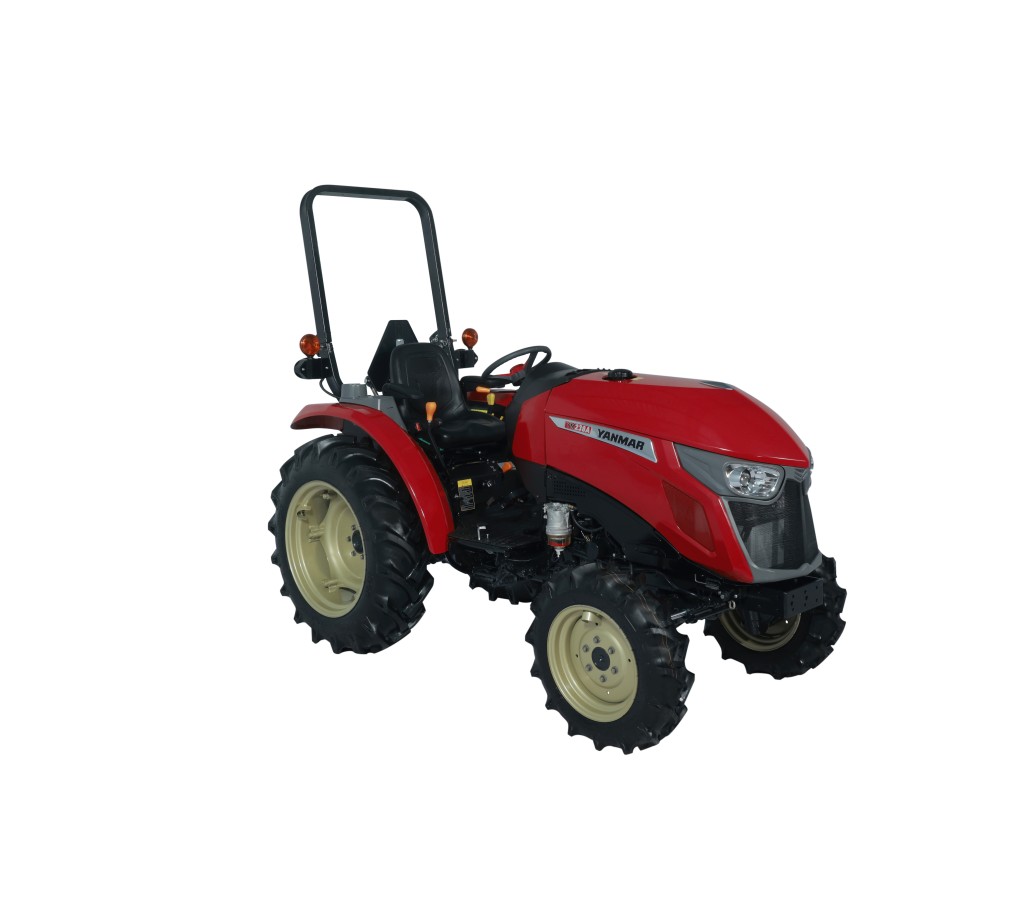

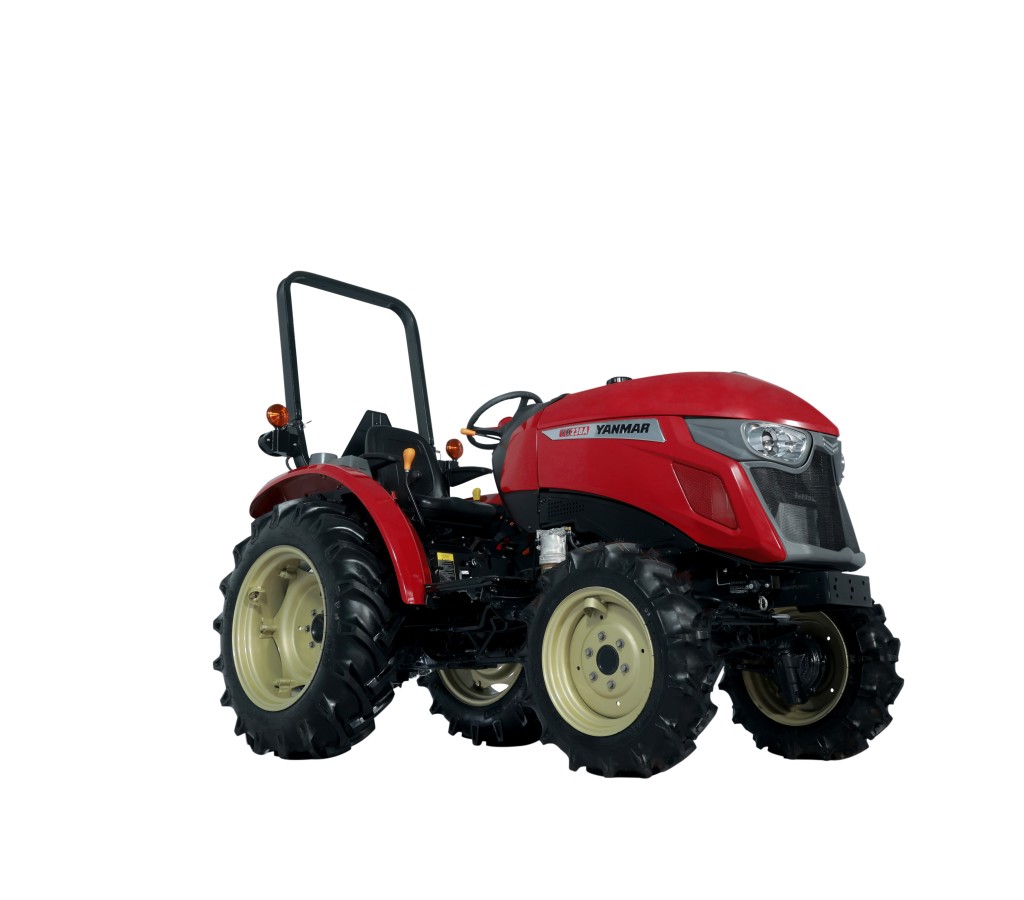

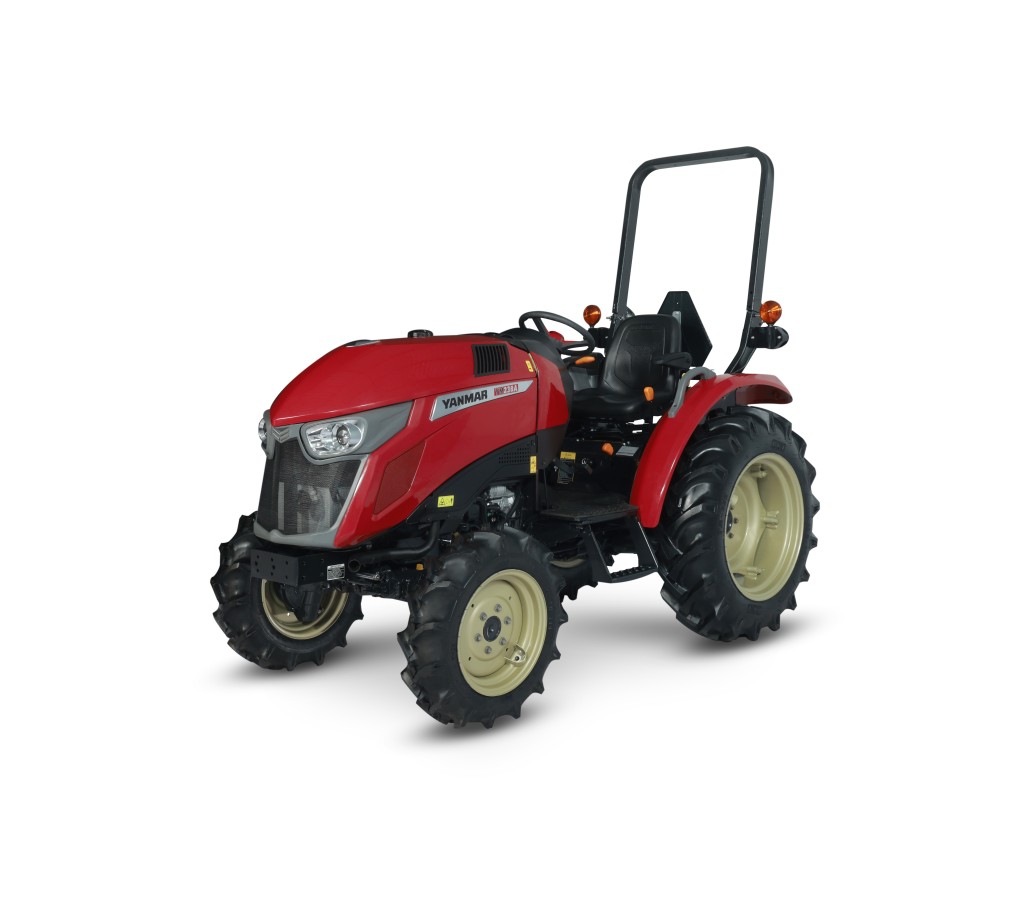

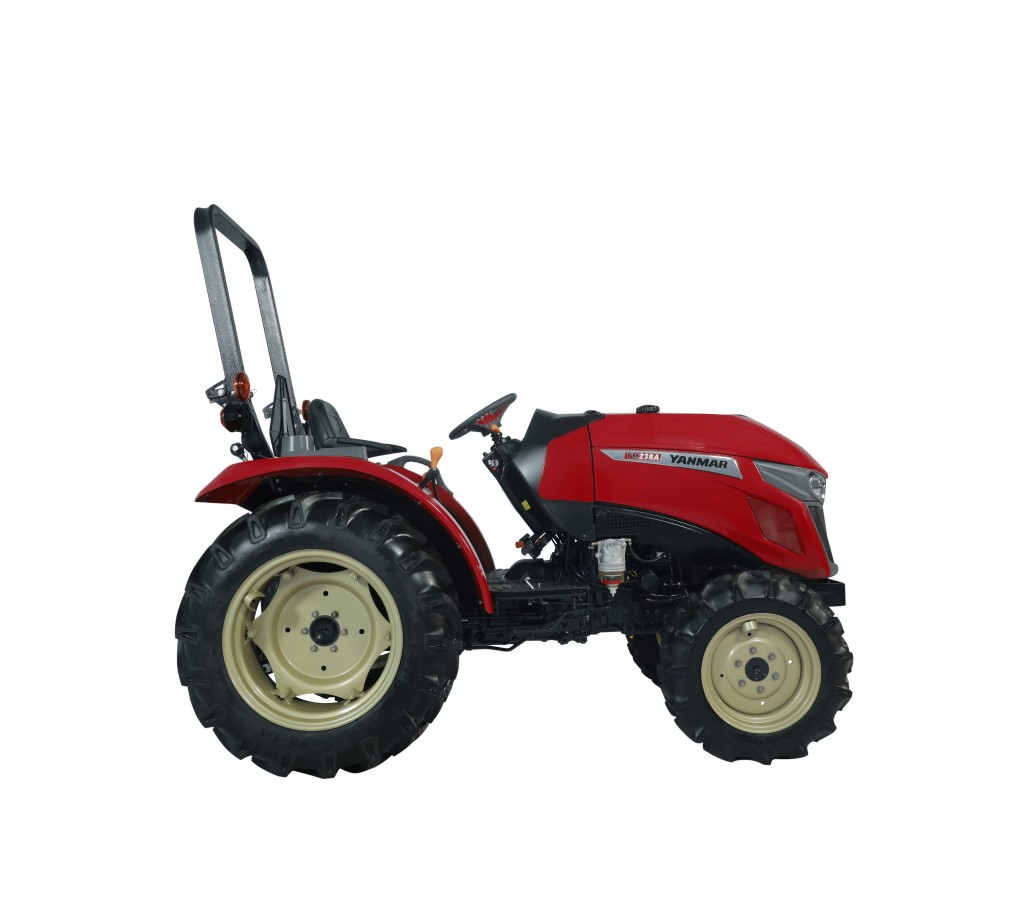

YM238

The Yanmar YM238 tractor brings serious punch & power into a compact, agile body, & a 38.2-HP turbocharged engine for challenging agricultural tasks in small- to mid-sized farms. Engineered for performance, durability, efficiency & comfort, this tractor can efficiently tackle tough jobs that start early & finish late.

Model Overview

Turbocharged Power For Every Acre

Staying true to Yanmar’s roots of reliability & capabilities, the YM238 is designed to stand the test of time & deliver consistent performance. Under its hood lies a 38.2-HP turbocharged engine, churning 13.8 hp more gross power than YM225 when you need extra muscle, making this model the star among compact tractors. Paired with a Synchronized Reverser Transmission (SRT), the YM238 is not only about raw power, but is one of the most efficient in its segment.

Engine Power (HP)

38.2

Transmission Type

Synchronized Reverser Type (SRT)

Warranty

24 Months or 2,000 Hours (for non-commercial, home & residential use only)

Engineered For Superiority

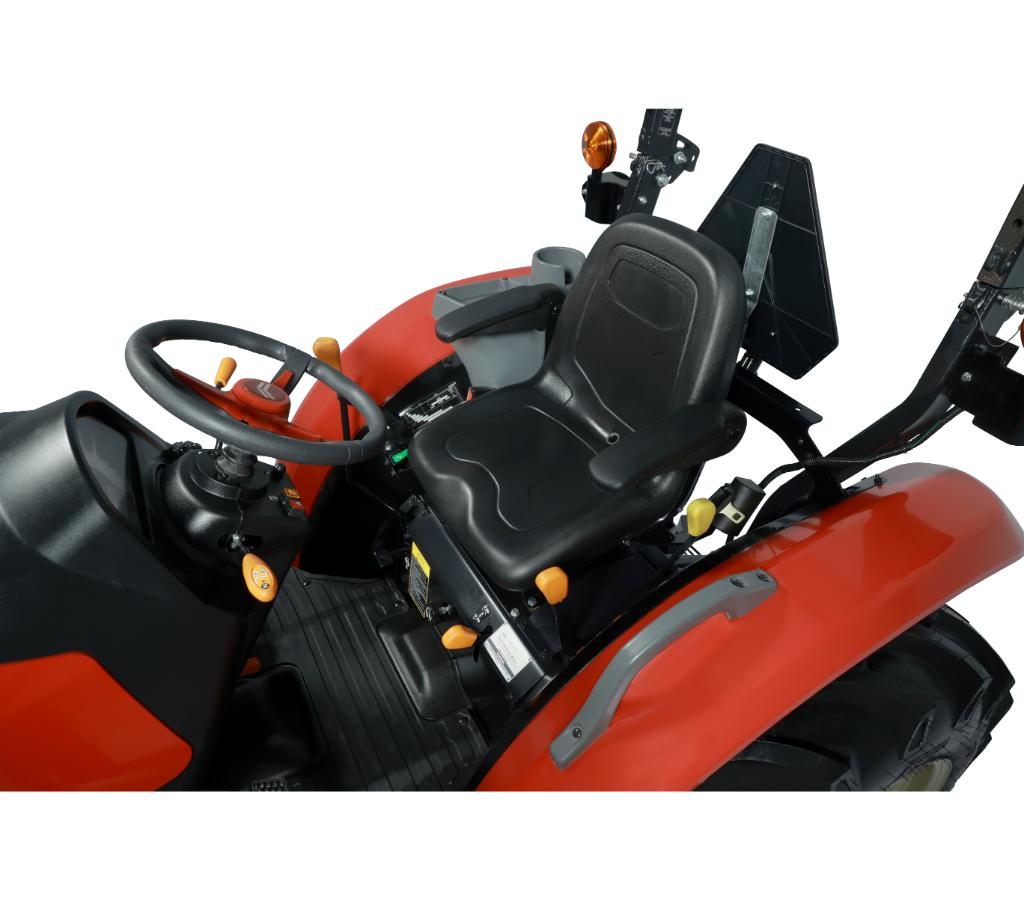

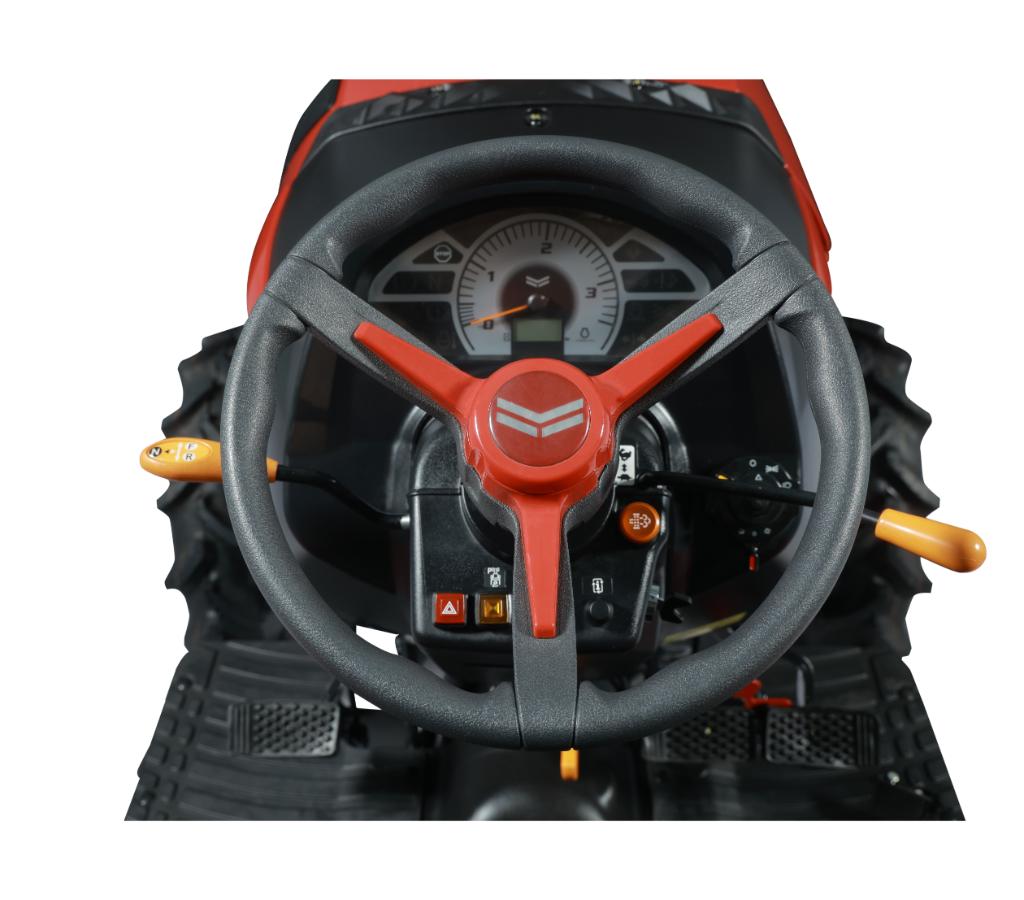

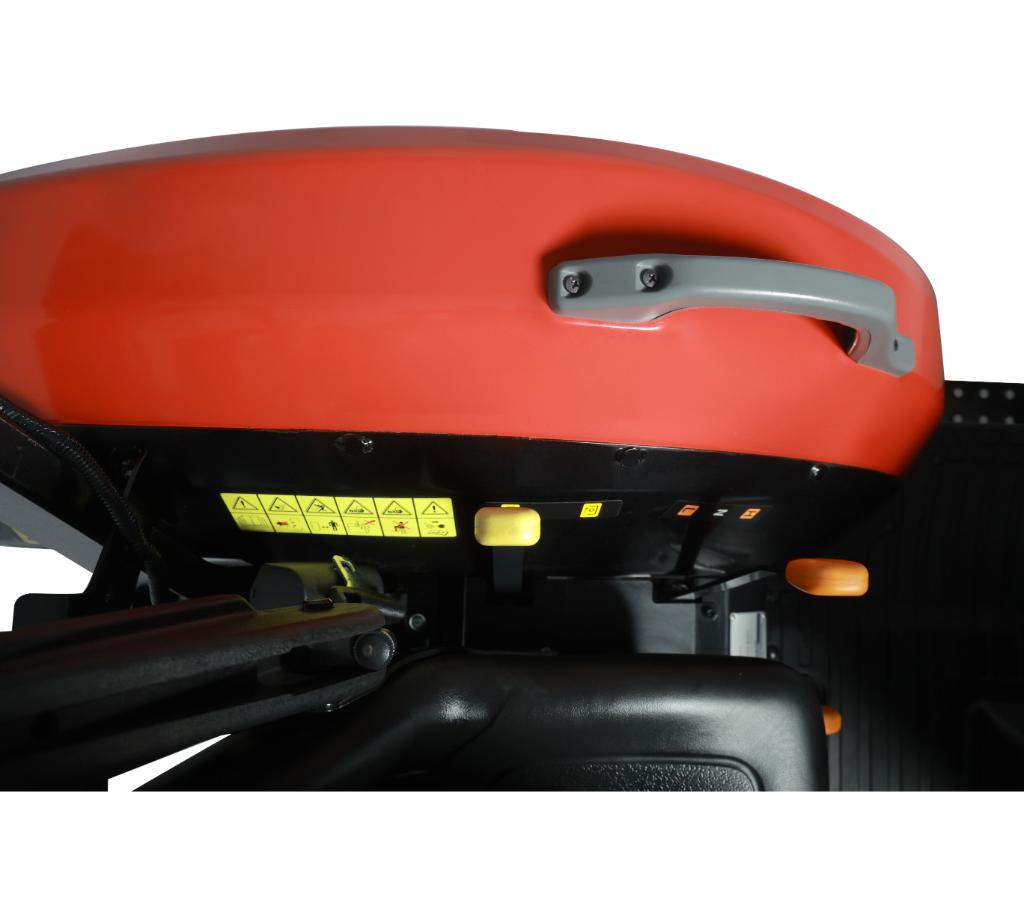

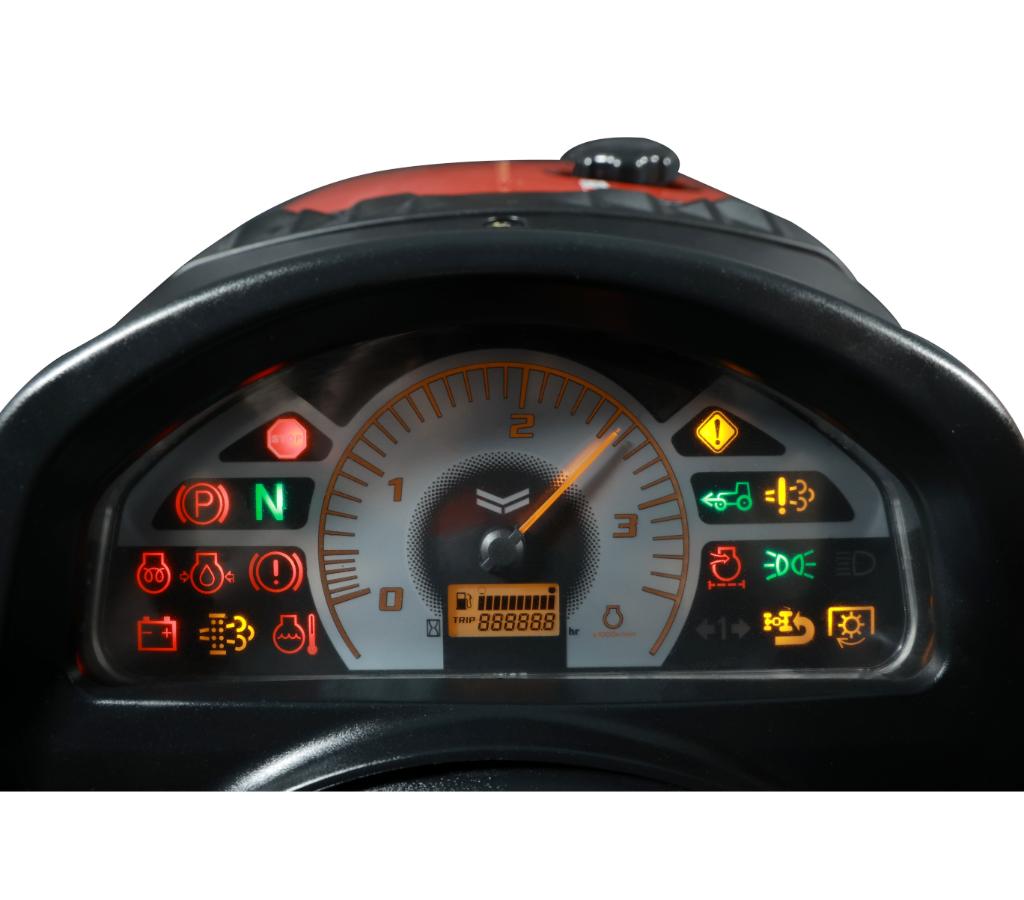

The YM238 shines where it matters. It offers intuitive controls, quick direction changes, easy handling, superior visibility, rear ROPS for extra safety at work & low-effort hydraulics to make long workdays & tight spaces feel less challenging.

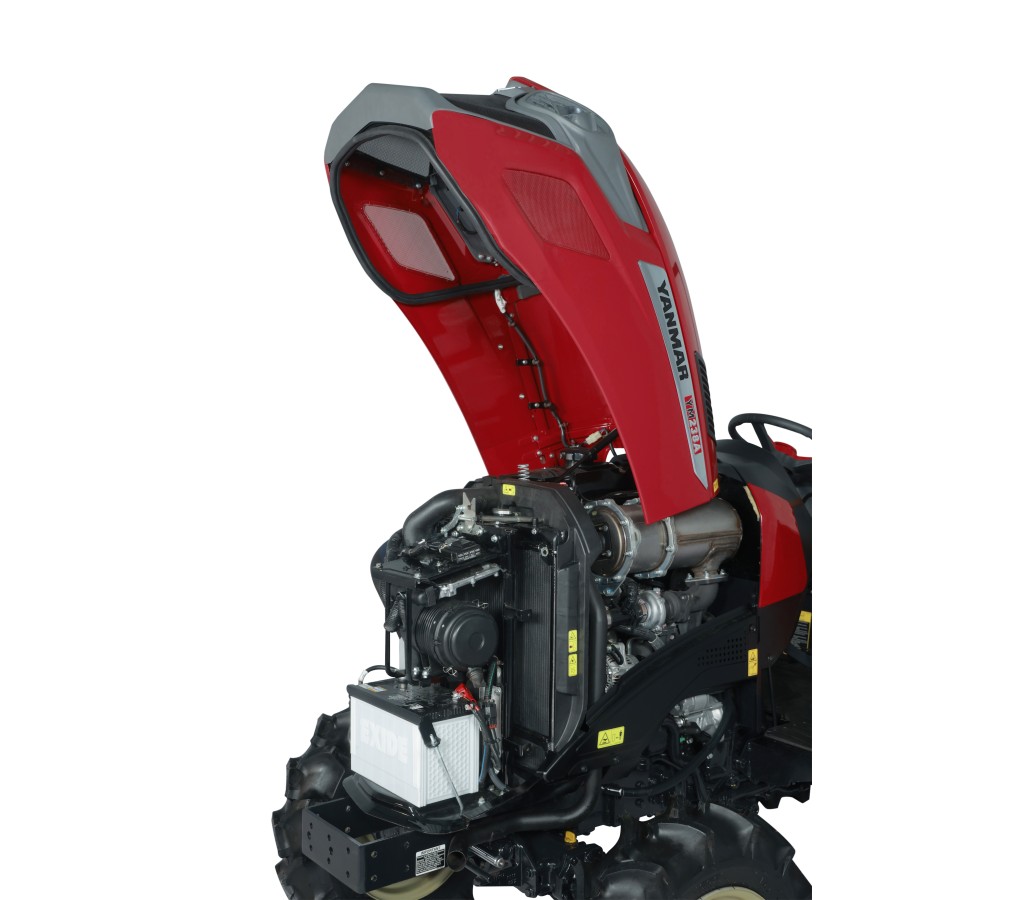

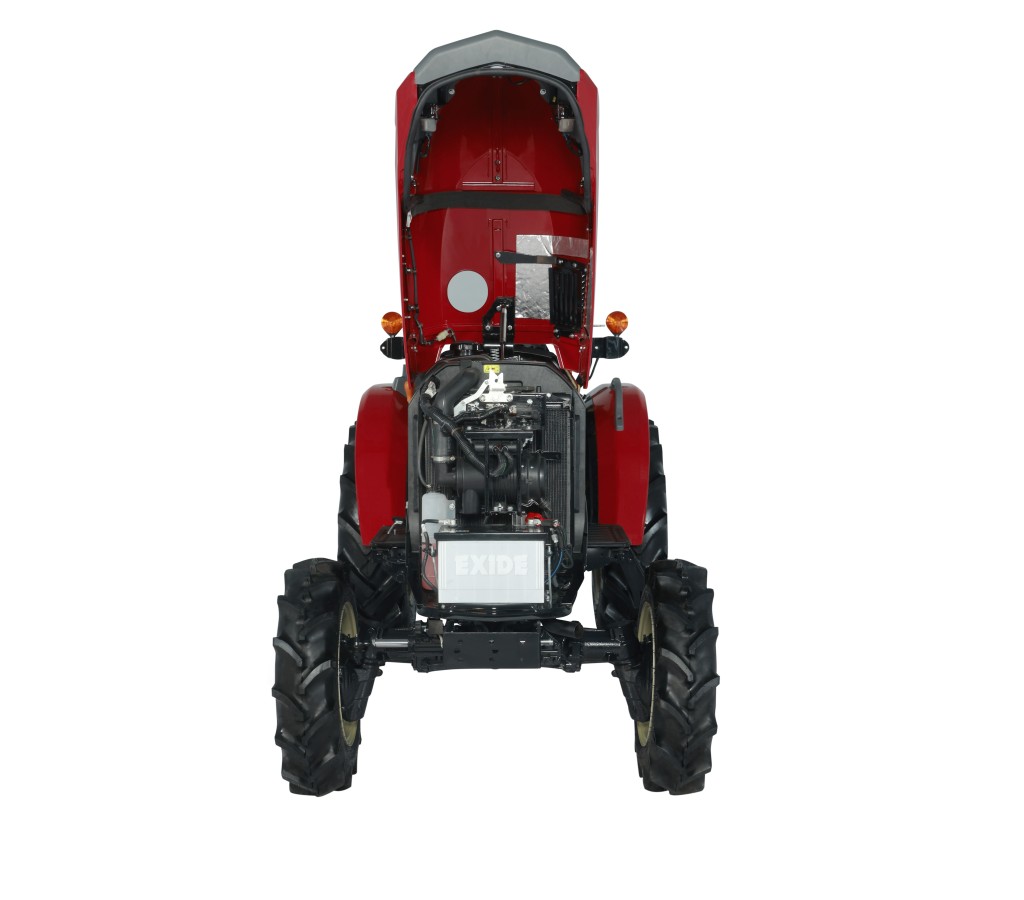

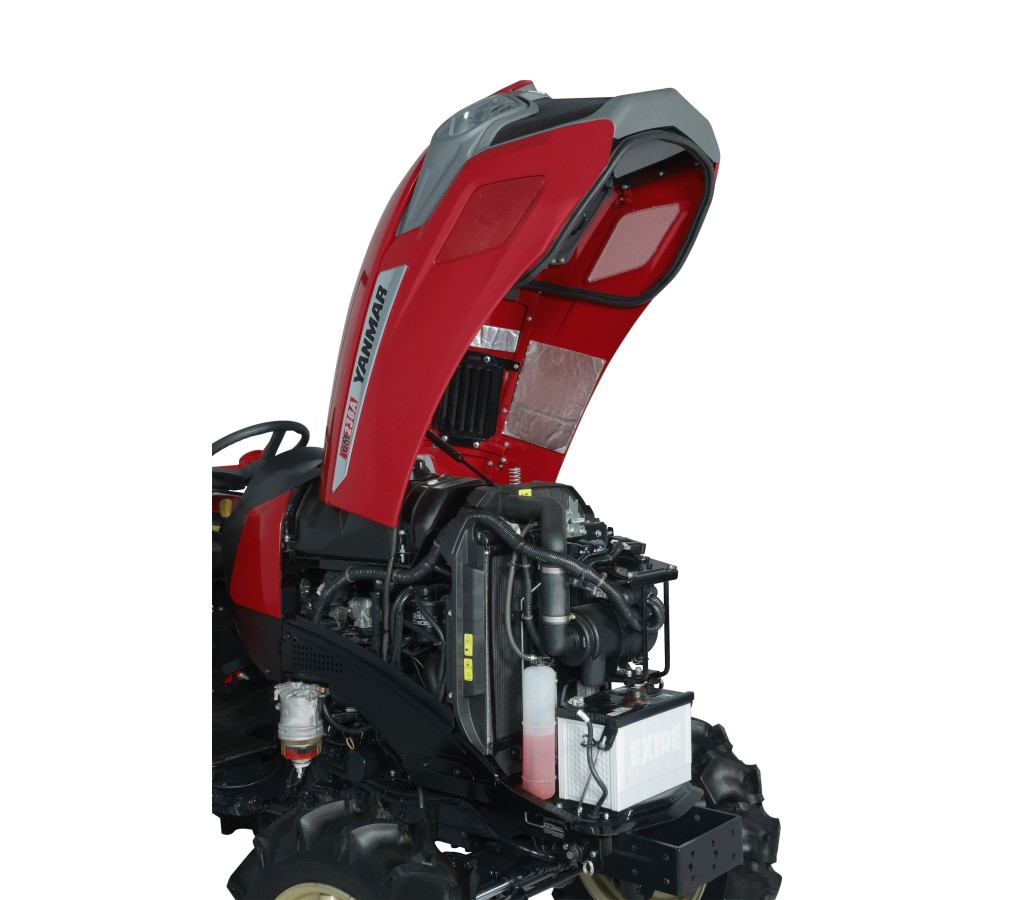

38.2-HP Turbo Engine

38.2-HP turbocharged engine offers maximum power delivery at 2,600 RPM for instant power & lower emissions.

Class-Leading Lifting Capacity

With an impressive loader capacity of 1,500 lbs & 1,000 kgf at the hitch, the YM238 is all about practicality.

Synchronized Reverser Transmission

SRT gearboxes offer smoother dynamics & forward-reverse operation, allowing for better usage & efficiency.

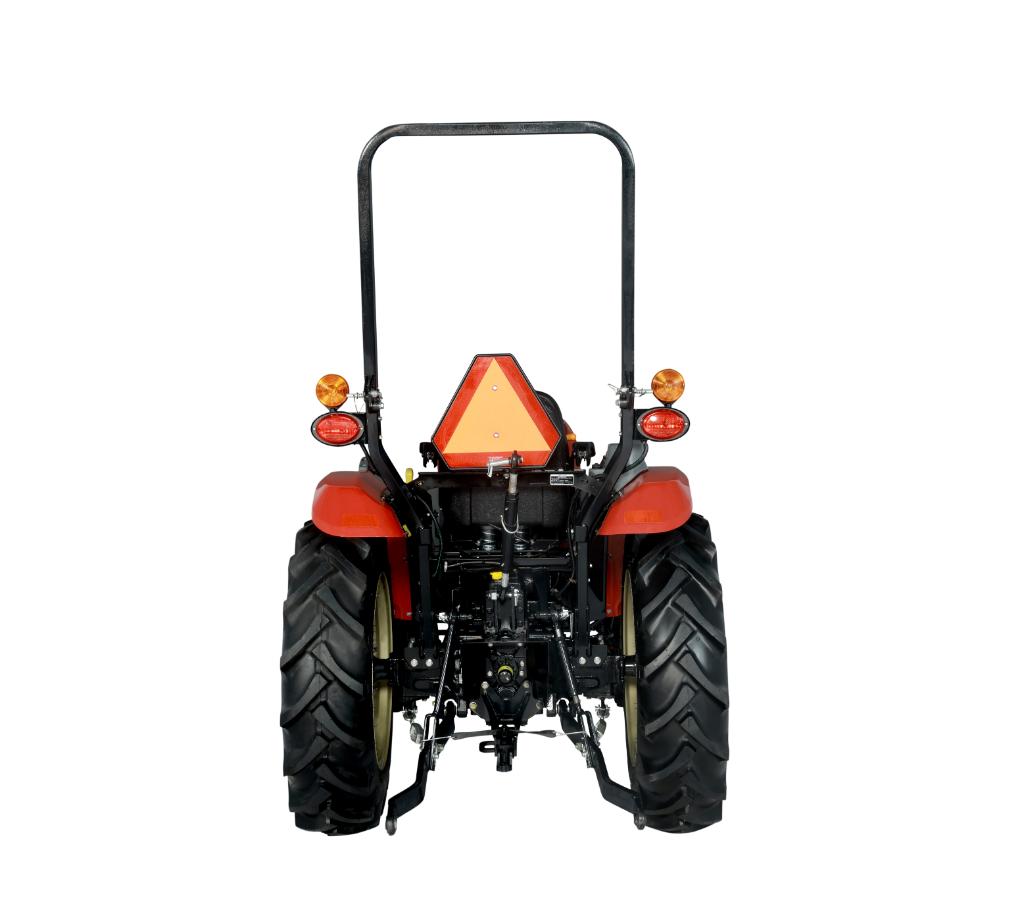

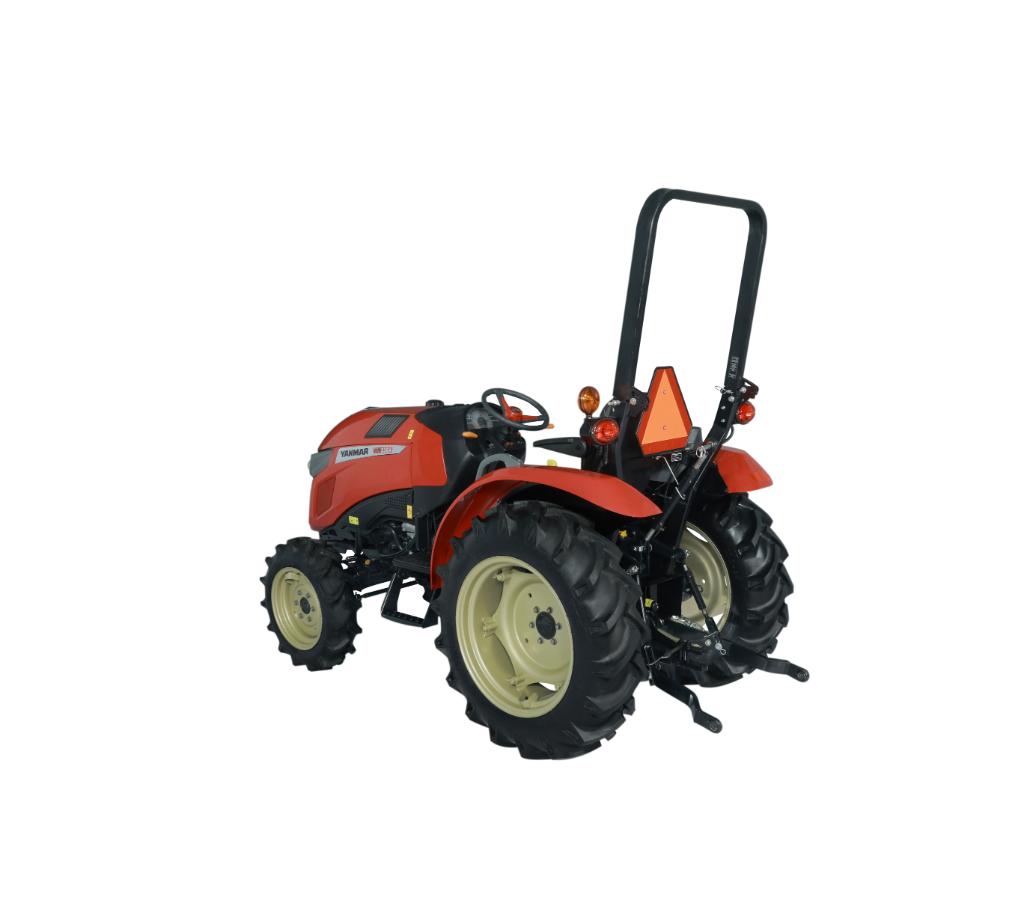

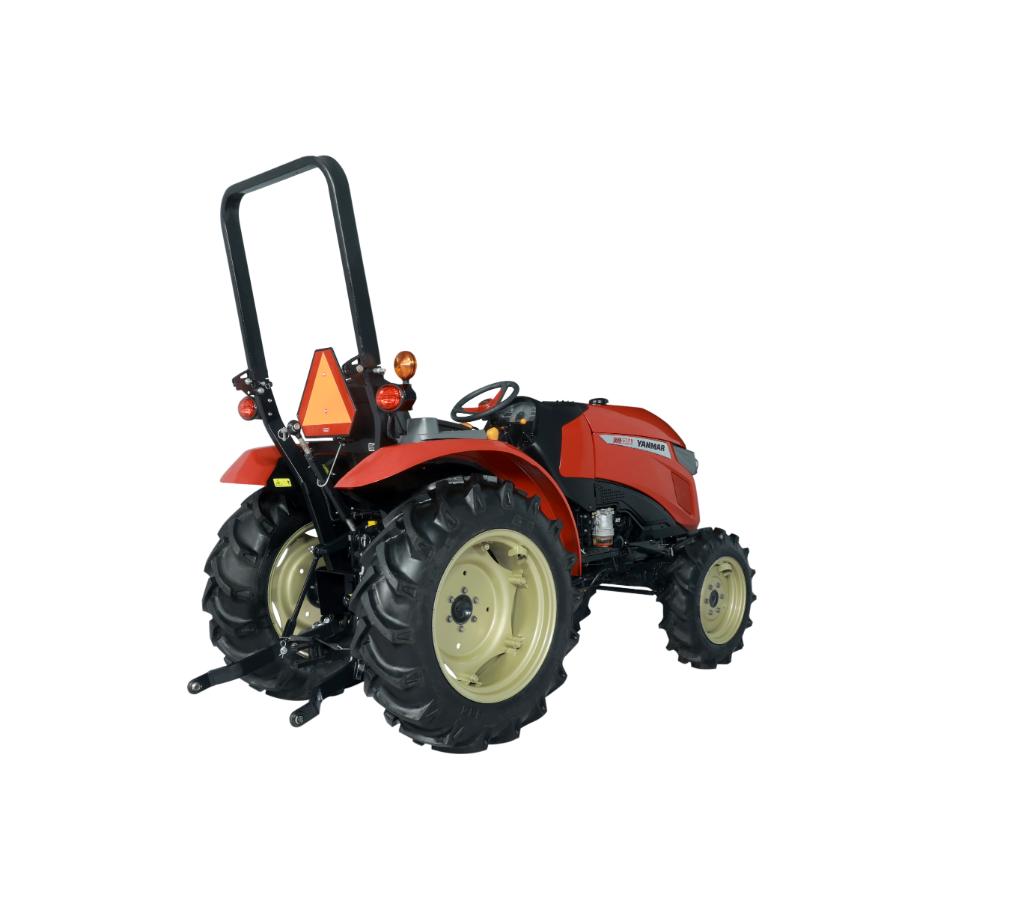

Rear ROPS

Rear ROPS & lights ensures better operator safety & visibility at work, especially during overturns & dark conditions.

Perfect Fit For Your Farms

The Yanmar YM238 is specially designed for mid-sized farming operations, which makes for a diverse range of crop farming. The compact dimensions & agile body enables to freely move in tight spaces, multiple tyre options allow it to adapt easily to various soil conditions without compromising on capabilities.

More Productive Workdays Start With The YM238

Explore how the Yanmar YM238 agriculture tractor achieves superior performance & high reliability, offering a top-notch display of Japanese engineering. Click below to download the latest leaflet & learn more about its specifications, from hydraulic performance to dimensions.

Download Brochure

Smart Tractor Engineering For Real Results

Find out how Japanese technology & modern tractor engineering meld together to give birth to the YM238 tractor, reducing effort & running costs. A fuel-efficient engine with 31.9 HP PTO output, robust drivetrain, capable hydraulics, multiple tyre options & ROPS configurations, combine to provide you an unmatched experience season after season.

ENGINE	Unit	Value
Engine Gross Power	HP	38.2
Engine Gross Power	kW	28.5
Engine PTO Power	HP	31.9
Engine PTO Power	kW	23.8
Rated Engine Speed	RPM	2,600
Rear PTO Speed	RPM	540 RPM @ 2,360 rpm

Transmission type		Syncronized Reverser Transmission (SRT)
2WD/4WD Engagement		Selectable
Rear Differential lock		Foot Pedal Engagement
Turning circle (inner radius)	m	3.1
Clutch		Dry Single Plate
PTO Type		Transmission Driven with Overrunning Clutch
Fuel tank capacity	Litres	40

Steering system		Hydraulic powered
Steering Pump Capacity	L/min	15.7
Implement Pump Capacity	L/min	25.8

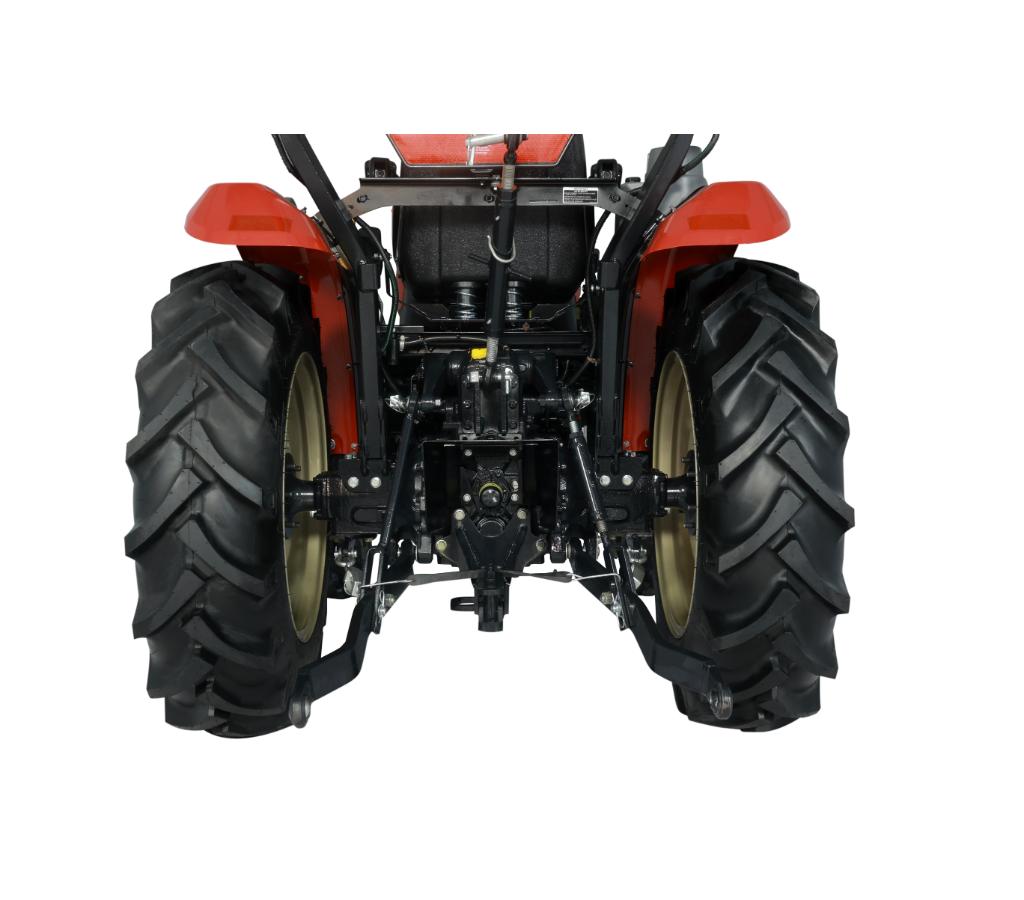

3-Point Hitch		Category 1
3-Point Lift Capacity (Standard)	kgf	1,000
3-Point Lift Capacity at 61 cm	kgf	730
Remote Valve		Optional
3rd Function Valve		Optional

Total length	mm	2,959
Total width	mm	1,360
Height	mm	2,200
Wheel base	mm	1,650
Ground clearance	mm	350
Track settings (front)	mm	1,071 ±15 (Tyre 7.00-16)
Track setting (rear)	mm	1,080 ±15 (Tyre 11.2-24)
Weight	kg	1290
Min turning radius with brakes	m	3.1

Agricultural Bias	inch	7×16; 11.2×24
Agricultural Radial	inch	200/70 R16 & 320/70 R20
Industrial	inch	27*8.5-15 & 380/70-19.5
Turf	inch	25*8.5-14 & 345/80-16
