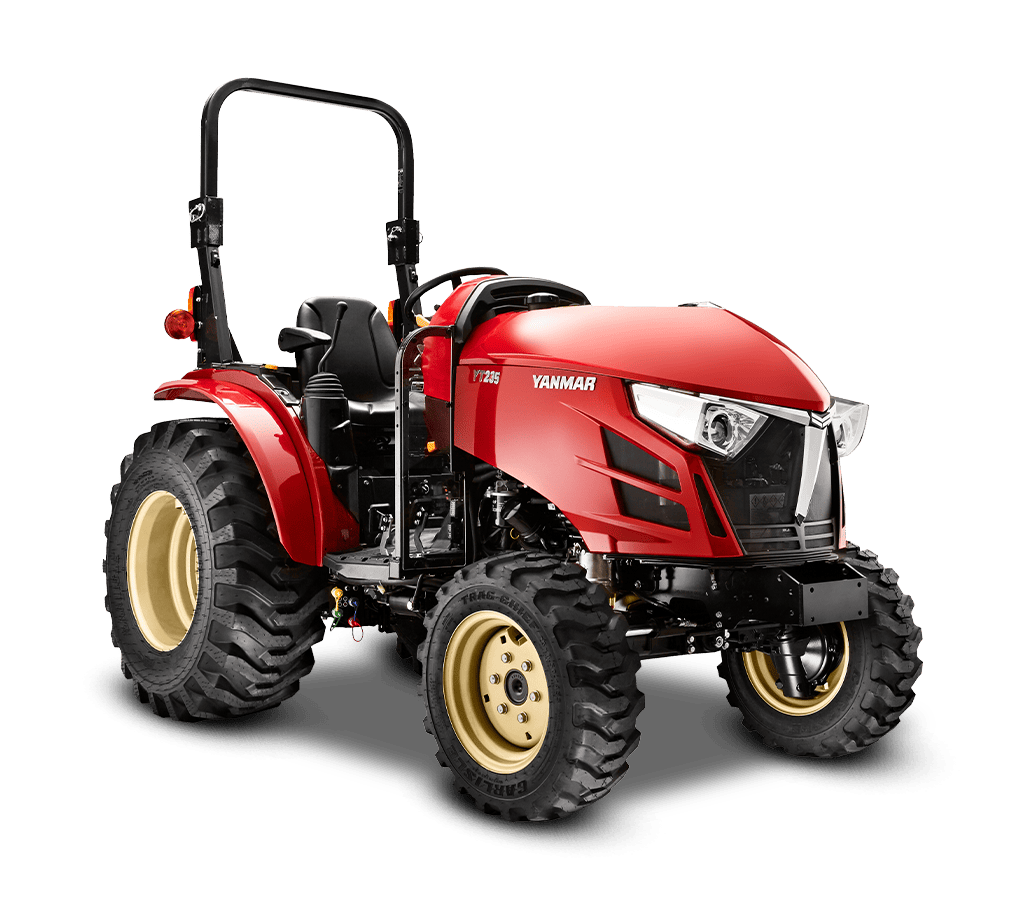

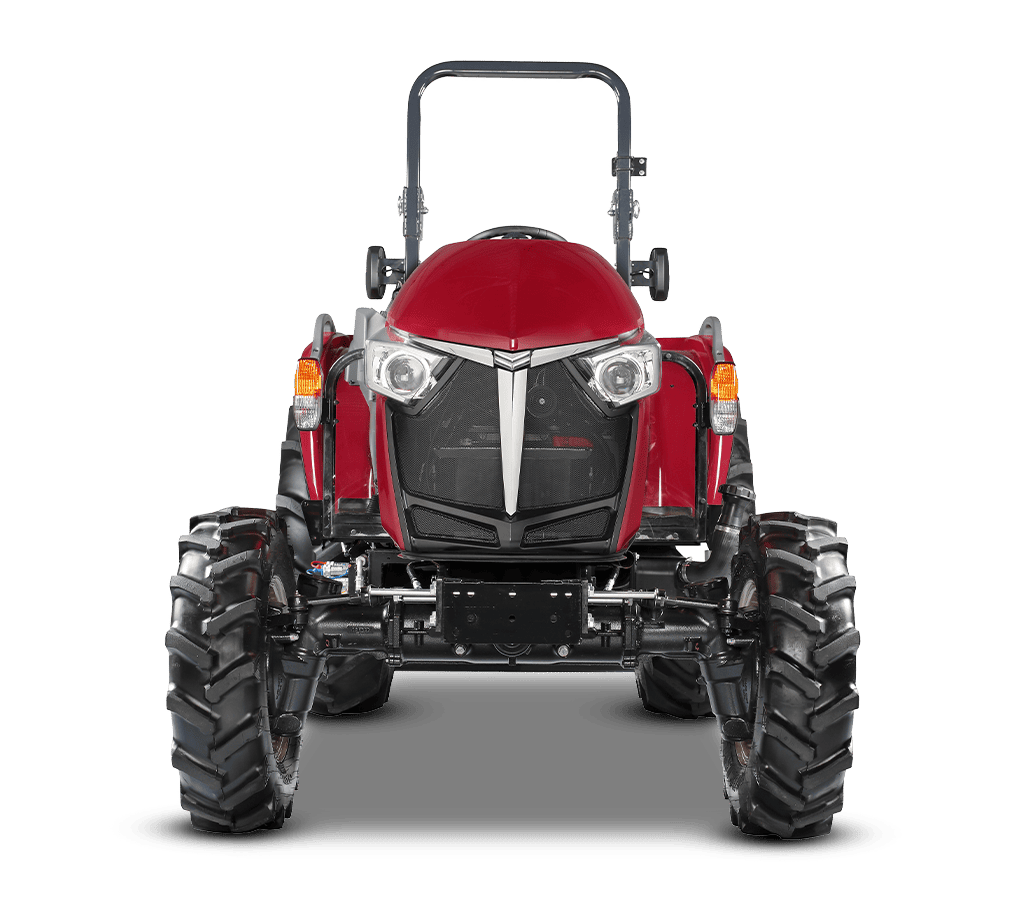

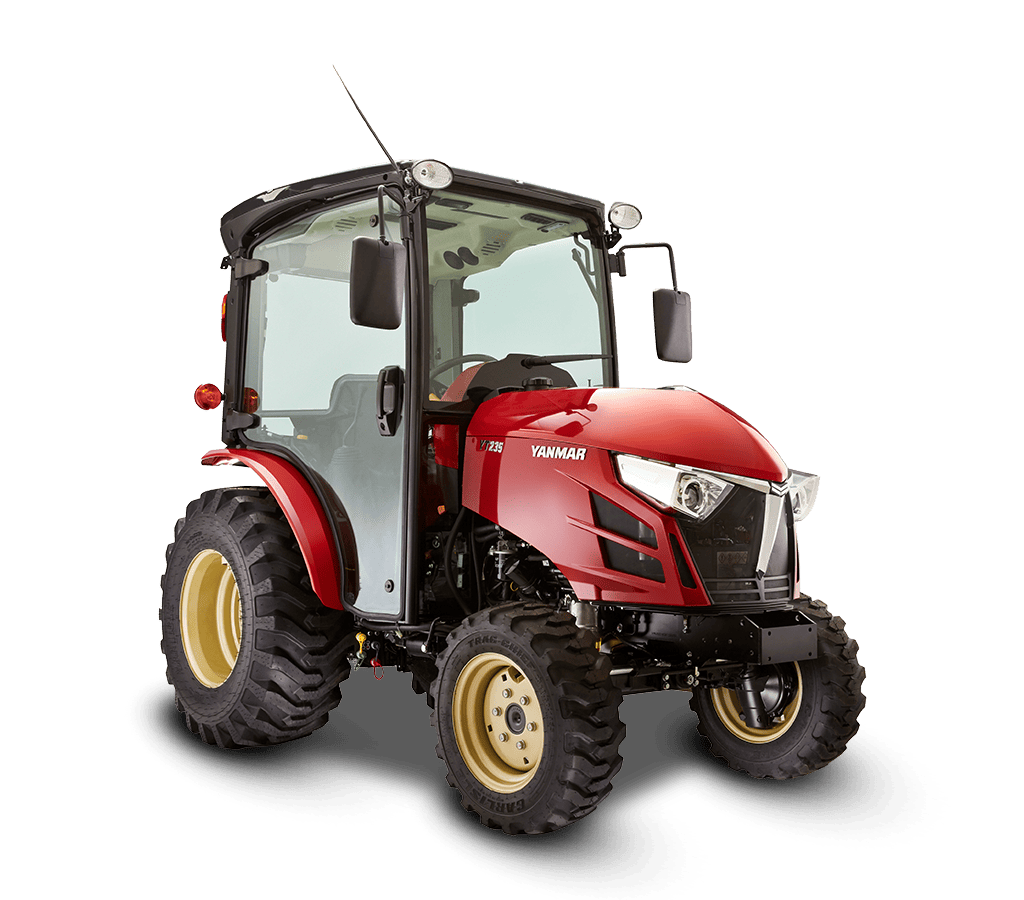

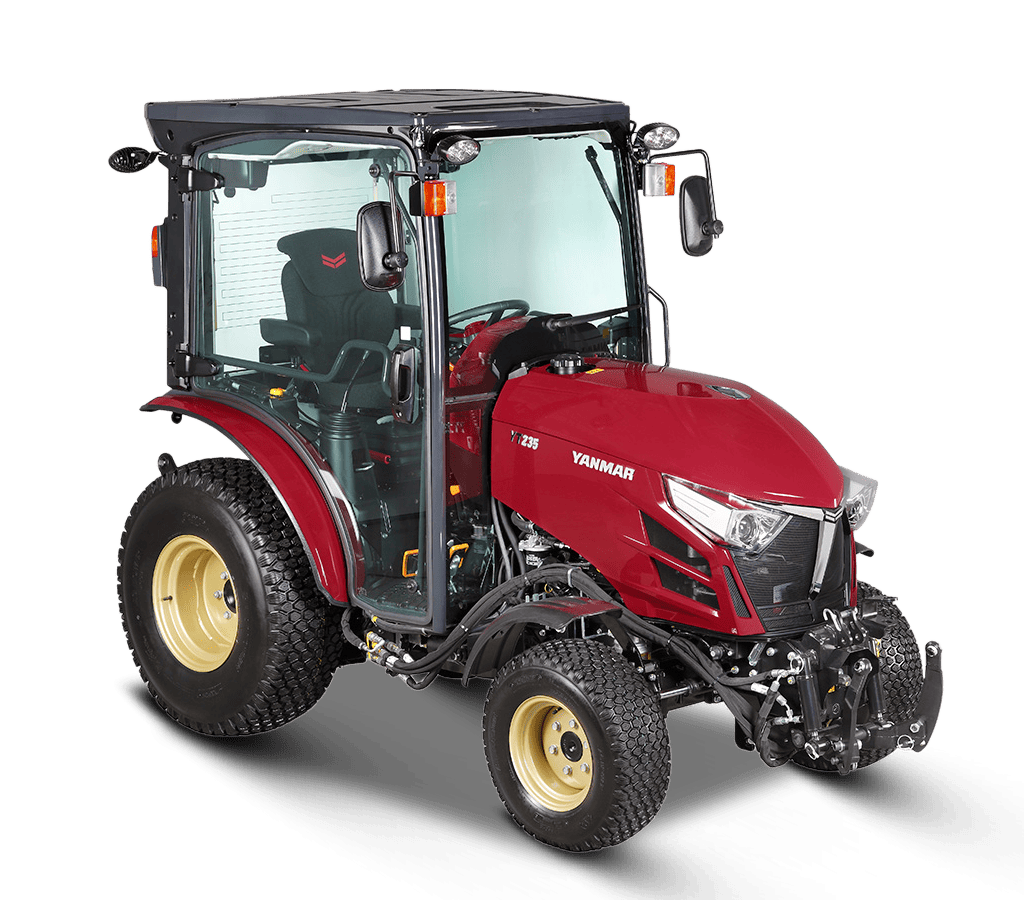

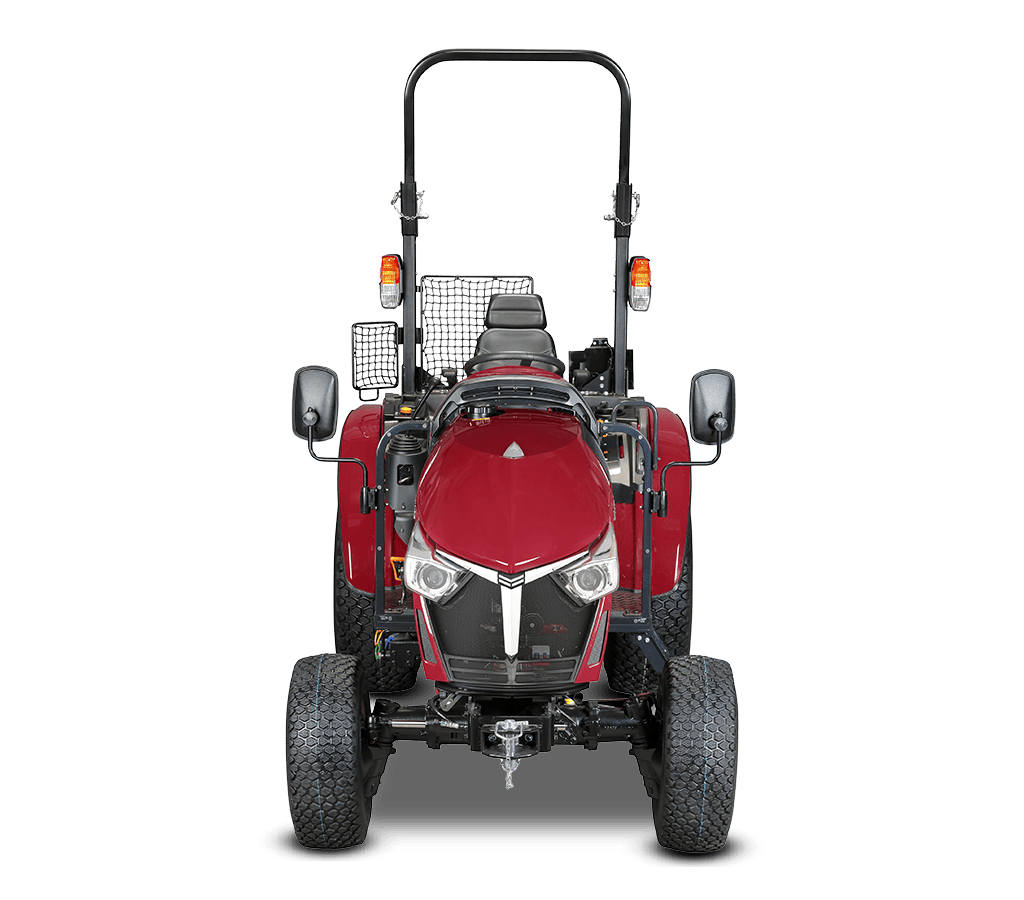

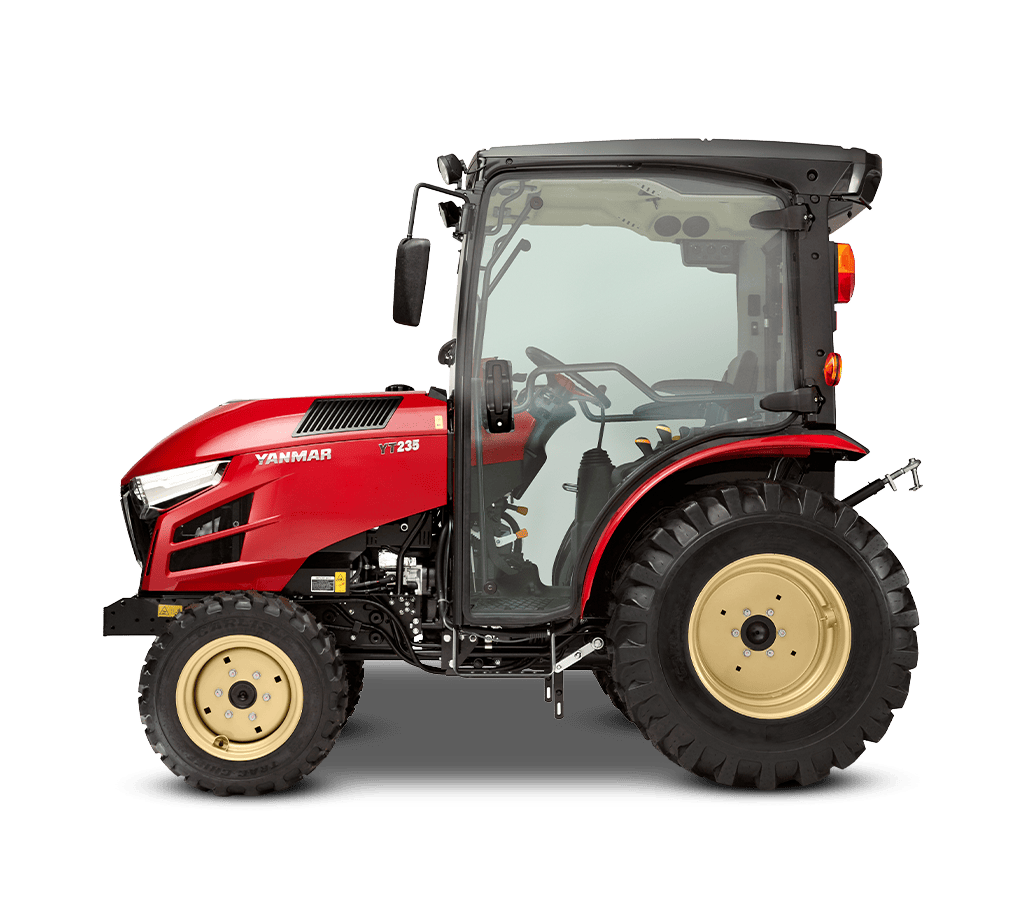

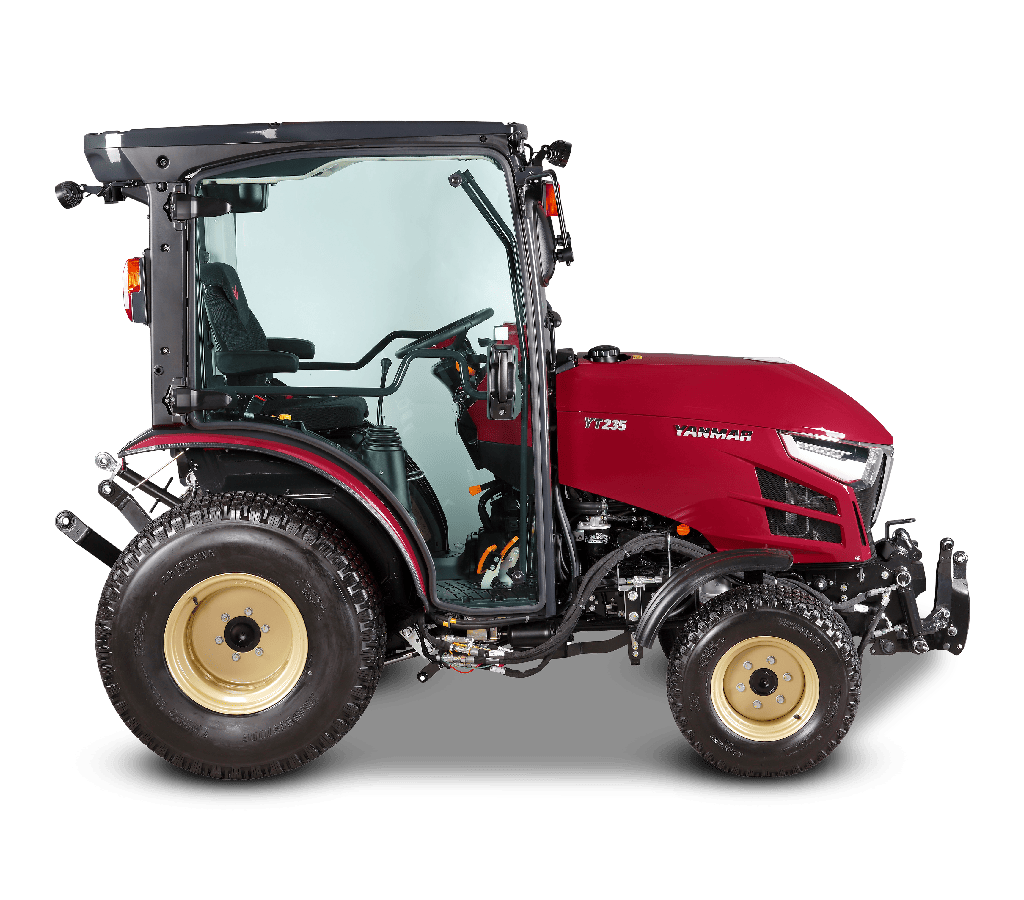

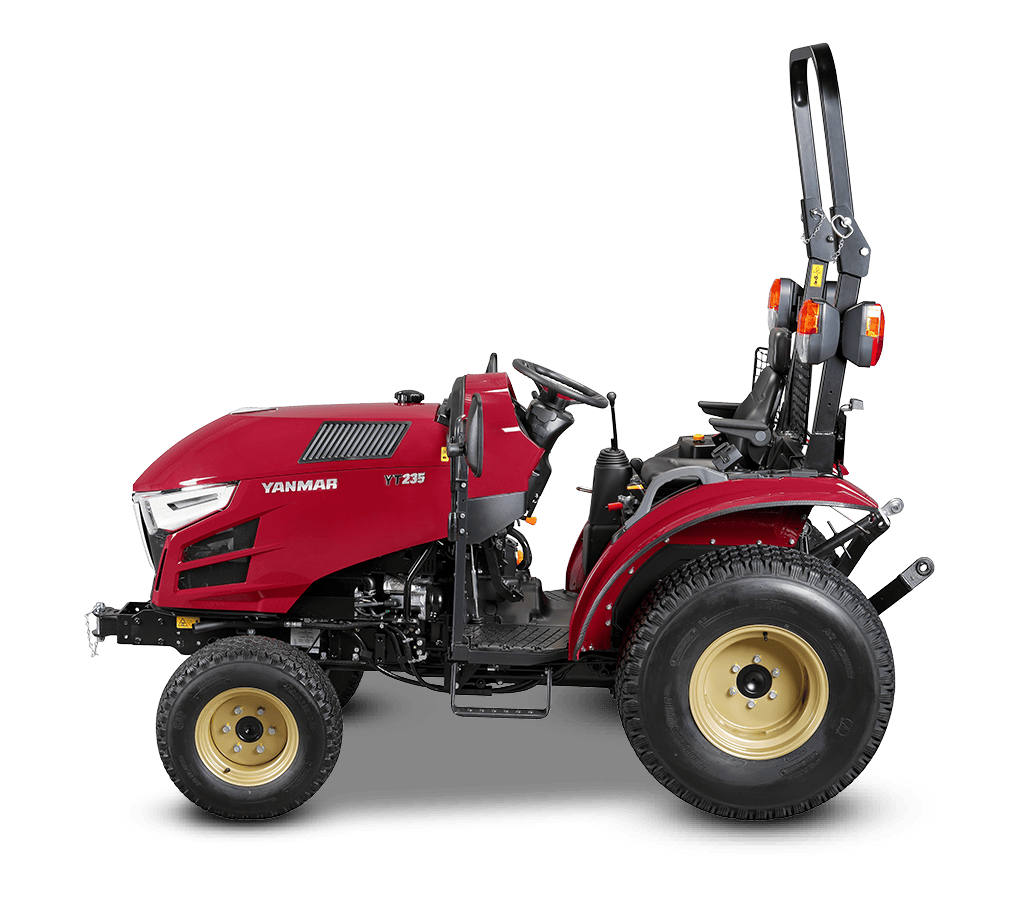

YT235-R-Q

Designed around your expectations, the YT2 Series is crafted to offer power-packed performance, precision control, and comfort for long hours in the field.

Model Overview

Precision Engineered for Productivity

The YT2 Series delivers 35 HP consistent output with a powerful STAGE V-compliant engine and hydrostatic transmission. With a 3-point hitch lifting capacity of 1200 kg and spacious cabin options, this tractor is a perfect blend of utility and ease of operation.

Engine Power (HP)

25.5

Transmission Type

Hydrostatic

Warranty

5 Year Warranty

Tough Features for Tougher Fields.

Step into the future of farming with advanced tractor features engineered for performance. Every detail is designed to boost productivity, from ergonomic design and high lifting capacity to superior fuel efficiency and intuitive controls.

STAGE V Engine

Advanced engine technology ensures optimal fuel efficiency and compliance with the latest emission standards.

Multiple Operating Modes

Eco, Normal, and Heavy load modes deliver performance tailored to specific applications, enhancing output and fuel economy.

YT2 Precision Controls

A simplified HST control lever allows intuitive and precise speed adjustments for high productivity with low effort.

600-Hour DPF Interval

Longer intervals between Diesel Particulate Filter cleanings reduce downtime and lower maintenance costs.

Built for Every Field

Our tractors are engineered to tackle a wide spectrum of agricultural applications, from land preparation and sowing to harvesting and haulage. With powerful engines, high lifting capacities and smooth transmissions, they adapt seamlessly to every field condition and farming need.

Smarter Farming Starts Here

Discover how Yanmar tractors achieve unmatched performance across any terrain. Click below to download the leaflet and explore the full range, features and advantages.

Download Brochure

Advanced Technology for Superior Farming

Yanmar tractors are known for being robustly built and powered by Japanese technology. Using strong engines, precise hydraulics, and improved transmission guarantees that all parts work efficiently and for a longer period. By using innovation, you get to have improved operations, less fuel use, and machines that are built to serve you longer.

ENGINE	Unit	Value
Engine name		3TNV88C
Engine power (unec reg. No 120)	kW	25,5
Engine power	hp	35, 0
Number of cylinders		3
Size of engine	ccm	1. 642
Torque	Nm	105,4
Engine speed	1/min	2. 800
Alternator	a	12V/40 (12V/55)
Battery	ah	12V/70

Transmission type		Hydrostatic
Brake system		Multiple wet brake disk
Drive		Selectable 4WD
Differential lock		Yes
Turning circle (inner radius)	mm	2. 900
Number of ranges		3
Max. Speed (highest gear)	km/h	29, 7
Towing capacity – not braked	kg	2. 000
Towing capacity – braked	kg	2. 500
Front axle load max.	kg	980
Rear axle load max.	kg	1. 800
Max. Allowed weight	kg	2. 135 (2. 300)
PTO power rear	kW	20,9
Rear PTO speed	1/min	540
Rear-PTO	Type	1 3/8, 6 splines
Mid. PTO speed	1/min	NA
Front-PTO speed	1/min	NA
Front-PTO: 2000 1/min, 1 15 splines		NA (After market)
Fuel tank capacity	\|	48
Hydraulic oil tank capacity	\|	29

Steering system		Hydraulic powered
Capacity hydro pump	1/min	41,8
Steering pump	1/min	15,3
Pump for hydraulics	1/min	26,5
Hydraulic pressure	bar	167
Hydraulic connectors	nm	2 Sets

Rear	kg	950
61 cm behind lift point – Rear	kg	700
Front	kg	430
61 cm behind lift point – Front	kg	390

Total length	mm	3. 063
Total width	mm	1. 267
Ground clearance	mm	289
Wheel base	mm	1. 650
Industrial wheel set fr size []	inch	FT: 25×8.5-14 RT: 15-19.5
Agri wheel set fr size []	inch	–
Height	mm	2. 442 (2. 060)
Weight	kg	1.110 (1.280)
Midmower m60, width	m	188
Midmower cutting width	cm	152
