Engineered to Outperform

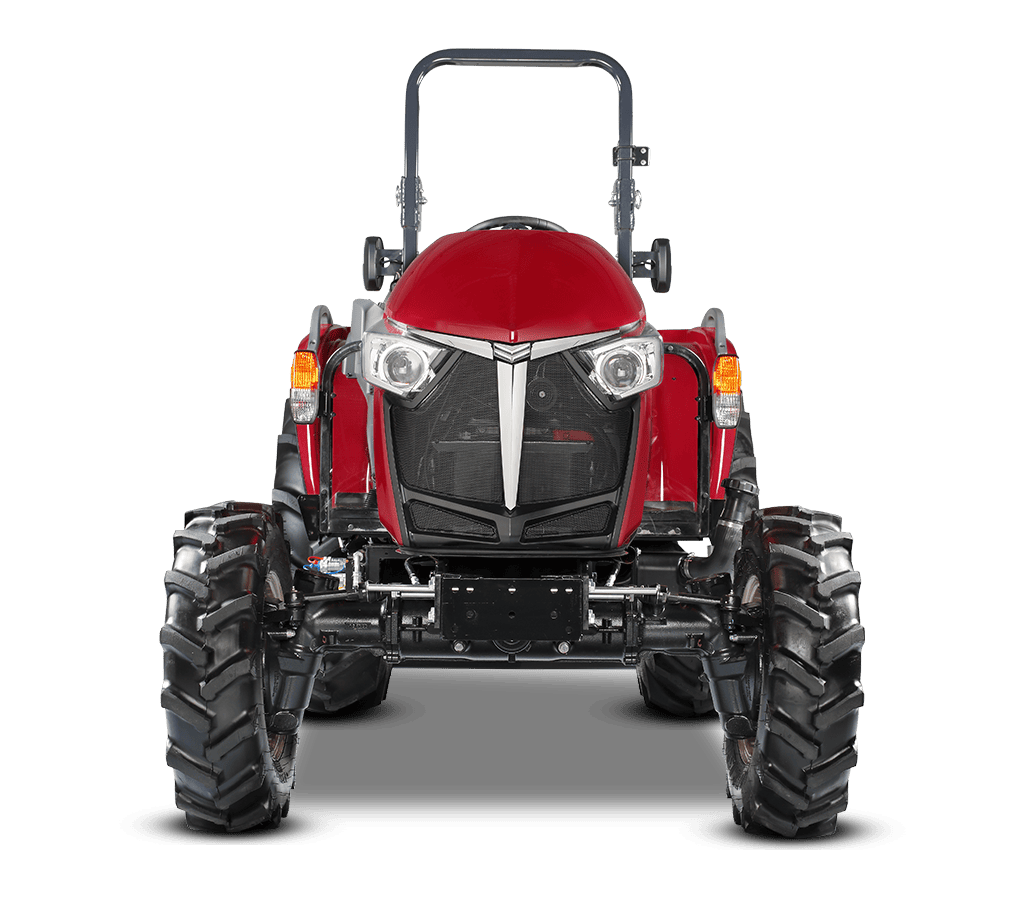

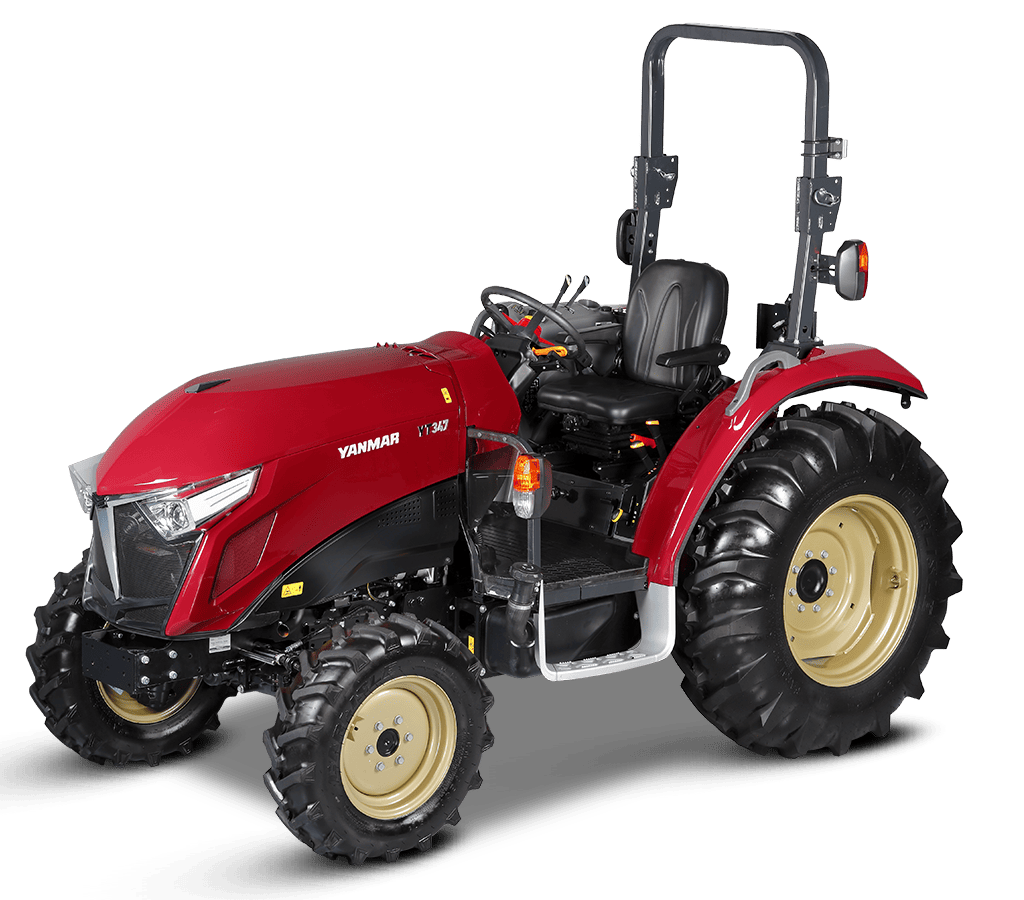

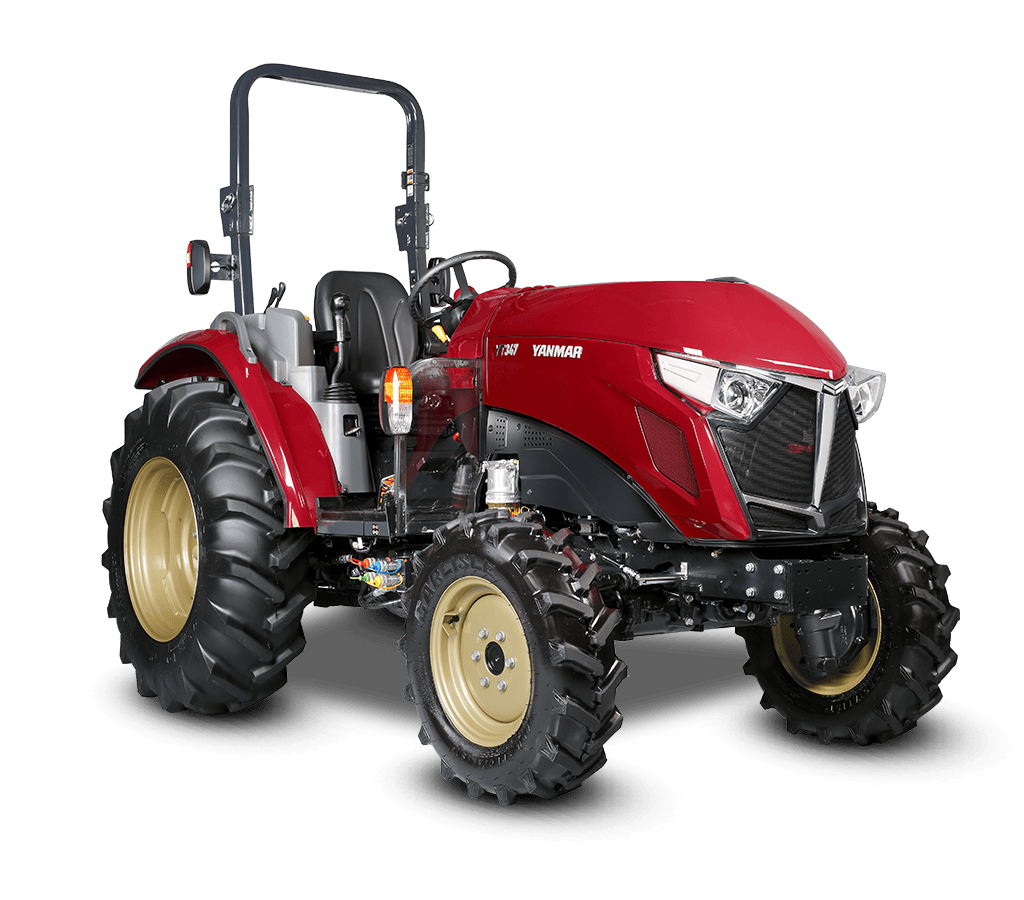

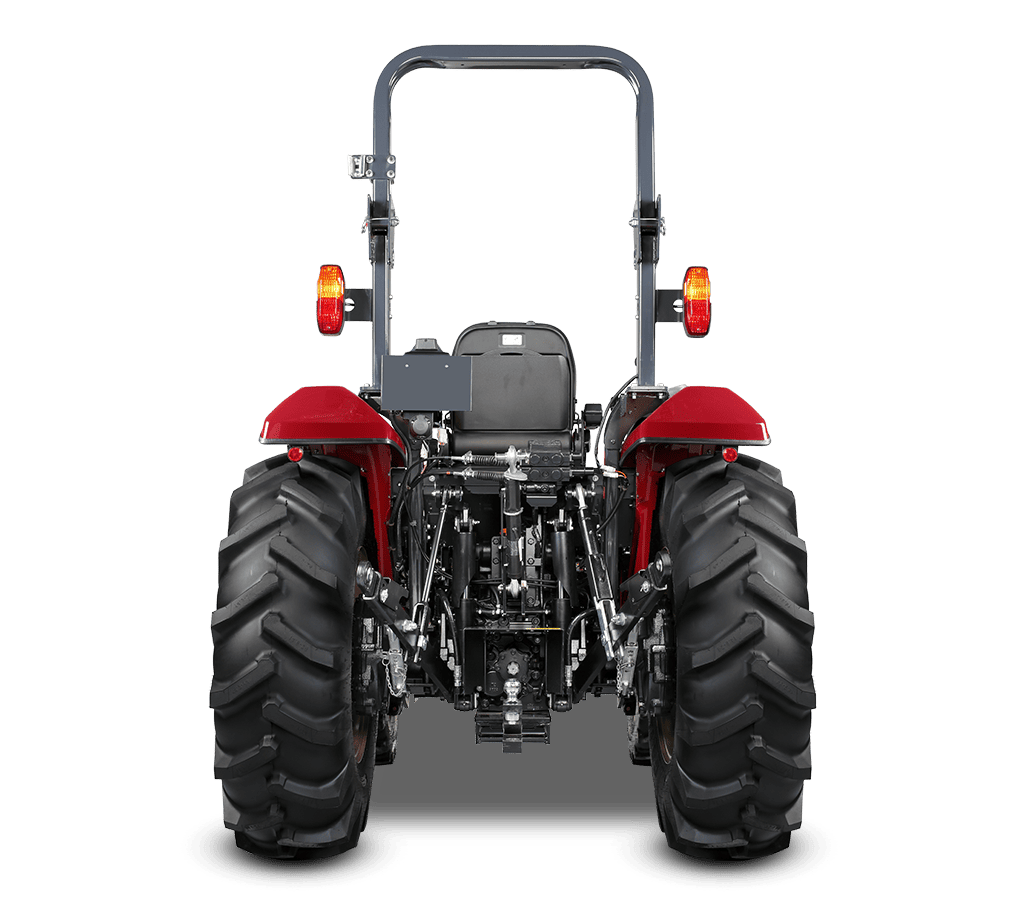

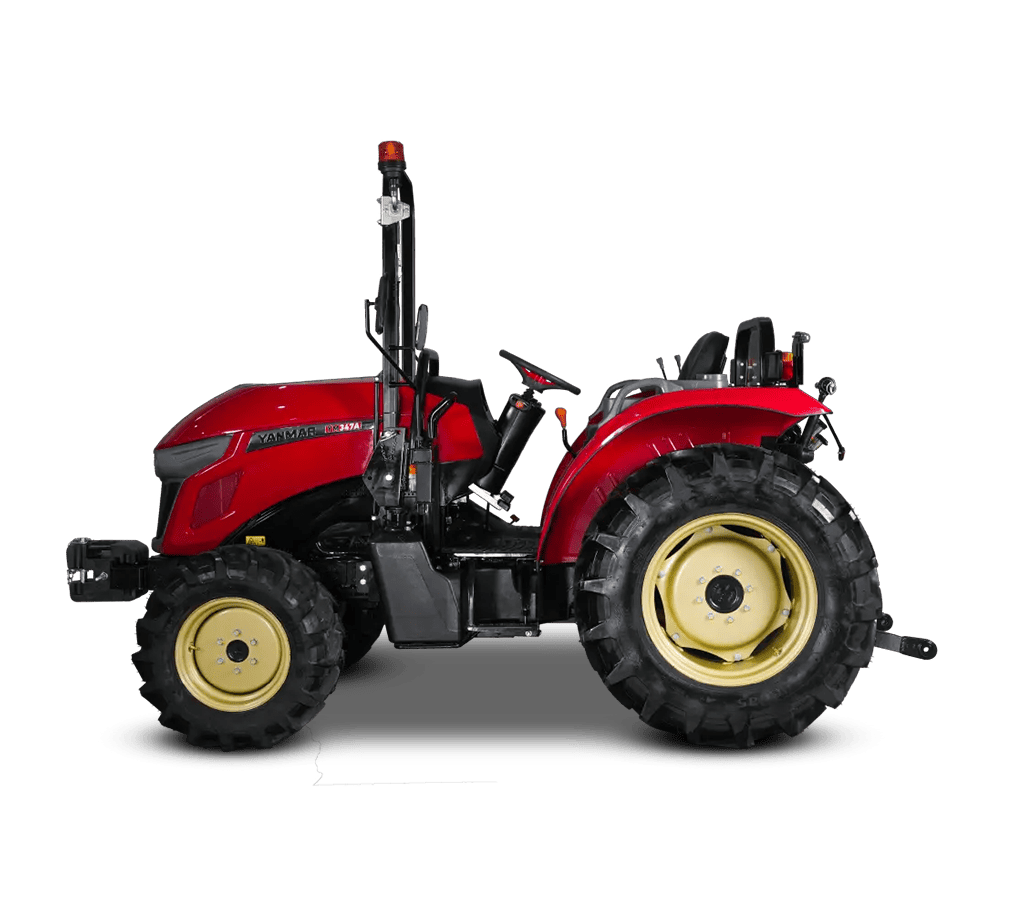

Built with advanced i-HMT transmission, the YT347 and YT359 models offer 47–60 HP power packed into a compact frame. Whether fieldwork, utility use, or loader tasks, this series combines hydraulic precision, full-flat decks, and best-in-class turning radius with ultra-low vibration and noise levels for a superior operator experience.
Engine Power (HP)
47
Transmission Type
Hydrostatic
Warranty
5 Year Warranty
Tough Features for Tougher Fields.
Step into the future of farming with advanced tractor features engineered for performance. Every detail is designed to boost productivity, from ergonomic design and high lifting capacity to superior fuel efficiency and intuitive controls.
I-HMT Transmission (Hydro-Mechanical Transmission)
First under-50HP tractor to offer i-HMT, delivering seamless speed control and unmatched efficiency across applications.
Ultra-Quiet Operation (Only 77dB)
Best-in-class noise control for a peaceful, fatigue-free work environment.
Full-flat deck with Premium Comfort
Spacious and obstacle-free design ensures easy entry and superior driving comfort even during long hours.
LCD Display with Electronic PTO Engagement
It keeps vital data at your fingertips while enabling precise PTO operation with the push of a button.
Built for Every Field
Our tractors are engineered to tackle a wide spectrum of agricultural applications, from land preparation and sowing to harvesting and haulage. With powerful engines, high lifting capacities and smooth transmissions, they adapt seamlessly to every field condition and farming need.
Smarter Farming Starts Here
Discover how Yanmar tractors achieve unmatched performance across any terrain. Click below to download the leaflet and explore the full range, features and advantages.
Advanced Technology for Superior Farming
Yanmar tractors are known for being robustly built and powered by Japanese technology. Using strong engines, precise hydraulics, and improved transmission guarantees that all parts work efficiently and for a longer period. By using innovation, you get to have improved operations, less fuel use, and machines that are built to serve you longer.
| ENGINE | Unit | Value |
| Engine name | 4TNV88C | |
| Engine power (unec reg. No 120) | kW | 34,3 |
| Engine power | hp | 47,0 |
| Number of cylinders | 4 | |
| Size of engine | ccm | 2. 189 |
| Torque | Nm | 140,4 |
| Engine speed | 1/min | 2. 800 |
| Alternator | a | 12V/55 |
| Battery | ah | 12V/70 |
| Transmission type | I-HMT | |
| Brake system | Multiple wet brake disk | |
| Drive | Selectable 4WD | |
| Differential lock | Yes | |
| Turning circle (inner radius) | mm | 2. 920 |
| Number of ranges | 3 | |
| Max. Speed (highest gear) | km/h | 31 |
| Towing capacity – not braked | kg | 1. 500 |
| Towing capacity – braked | kg | 6. 000 |
| Front axle load max. | kg | 1. 600 |
| Rear axle load max. | kg | 2. 300 |
| Max. Allowed weight | kg | 3.185 (3. 675) |
| PTO power rear | kW | 26, 0 |
| Rear PTO speed | 1/min | 540 / 750 |
| Rear-PTO | Type | 1 3/8, 6 splines |
| Mid. PTO speed | 1/min | NA |
| Front-PTO speed | 1/min | 1. 000 |
| Front-PTO: 2000 1/min, 1 15 splines | ||
| Fuel tank capacity | | | 48 |
| Hydraulic oil tank capacity | | | 29 |
| Steering system | Hydraulic powered | |
| Capacity hydro pump | 1/min | 60,0 |
| Steering pump | 1/min | 21,7 |
| Pump for hydraulics | 1/min | 38,3 |
| Hydraulic pressure | bar | 167 |
| Hydraulic connectors | nm | 2 Sets |
| Rear | kg | 1. 660 |
| 61 cm behind lift point – Rear | kg | 1. 400 |
| Front | kg | 850 |
| 61 cm behind lift point – Front | kg | 650 |
| Total length | mm | 3. 355 |
| Total width | mm | 1. 639 (1. 569) |
| Ground clearance | mm | 380 |
| Wheel base | mm | 1. 927 |
| Industrial wheel set fr size [] | inch | FT: 10.00-16.5 RT: 17.5-24 |
| Agri wheel set fr size [] | inch | – |
| Height | mm | 2. 450 (2. 310) |
| Weight | kg | 1. 800 (1 . 960) |
| Midmower m60, width | m | NA |
| Midmower cutting width | cm | NA |
